IDP Sensor LEDs „ 15
Chapter 2: Hardware Overview

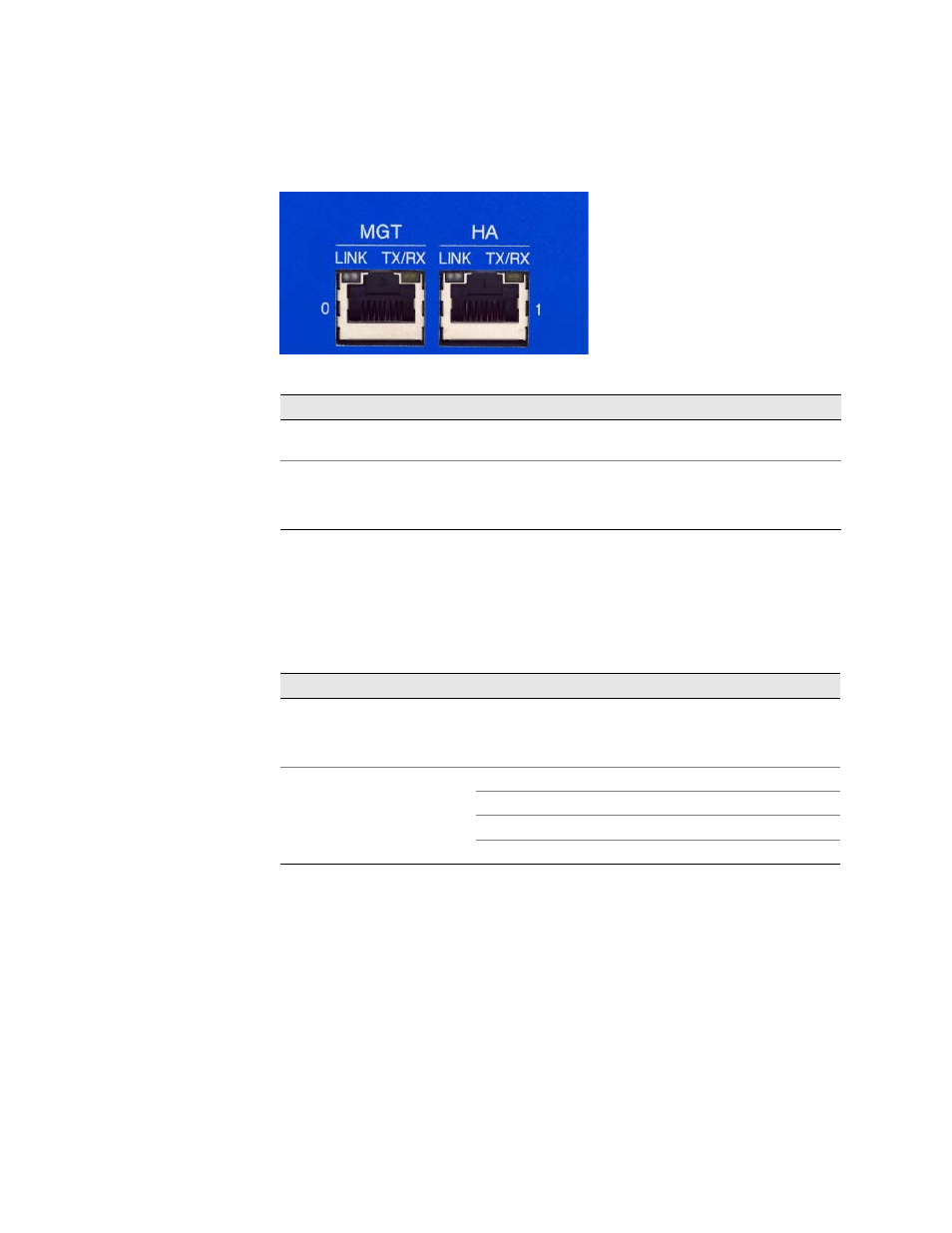

Figure 8: LEDs for Management and HA Ports
Traffic Port LEDs
The IDP 75, 250, 800, and 8200 sensors each have two traffic status LEDs on each
traffic port.
Hard Drive LEDs on Front Panel
The front panel of the sensors provide access to hard disk drives for 800 and 8200
sensors only. Table 10 shows the hard drive LED definitions for the 800 and the
8200 sensors.
Table 8: IDP Sensor Management and High Availability Port LED
Port LED Description Status
LINK Port connection/
activity indicator. Blinks amber to indicate activity on the port.
TX/RX Speed indicator. „ Stays off for 10 Mbps.
„ Glows green for 100 Mbps.
„ Glows amber for 1000 Mbps.
Table 9: IDP Sensor Traffic Port LEDs
Indicator Location Color/Status Speed/Description
Link Activity Left LED Green „ Stays on when there is a link.
„ Stays off when there is no link.
„ Blinks when there is activity.
Link Speed Right LED None 10 Mbps
Green 100 Mbps
Yellow 1 Gbps
Orange 10 Gbps
