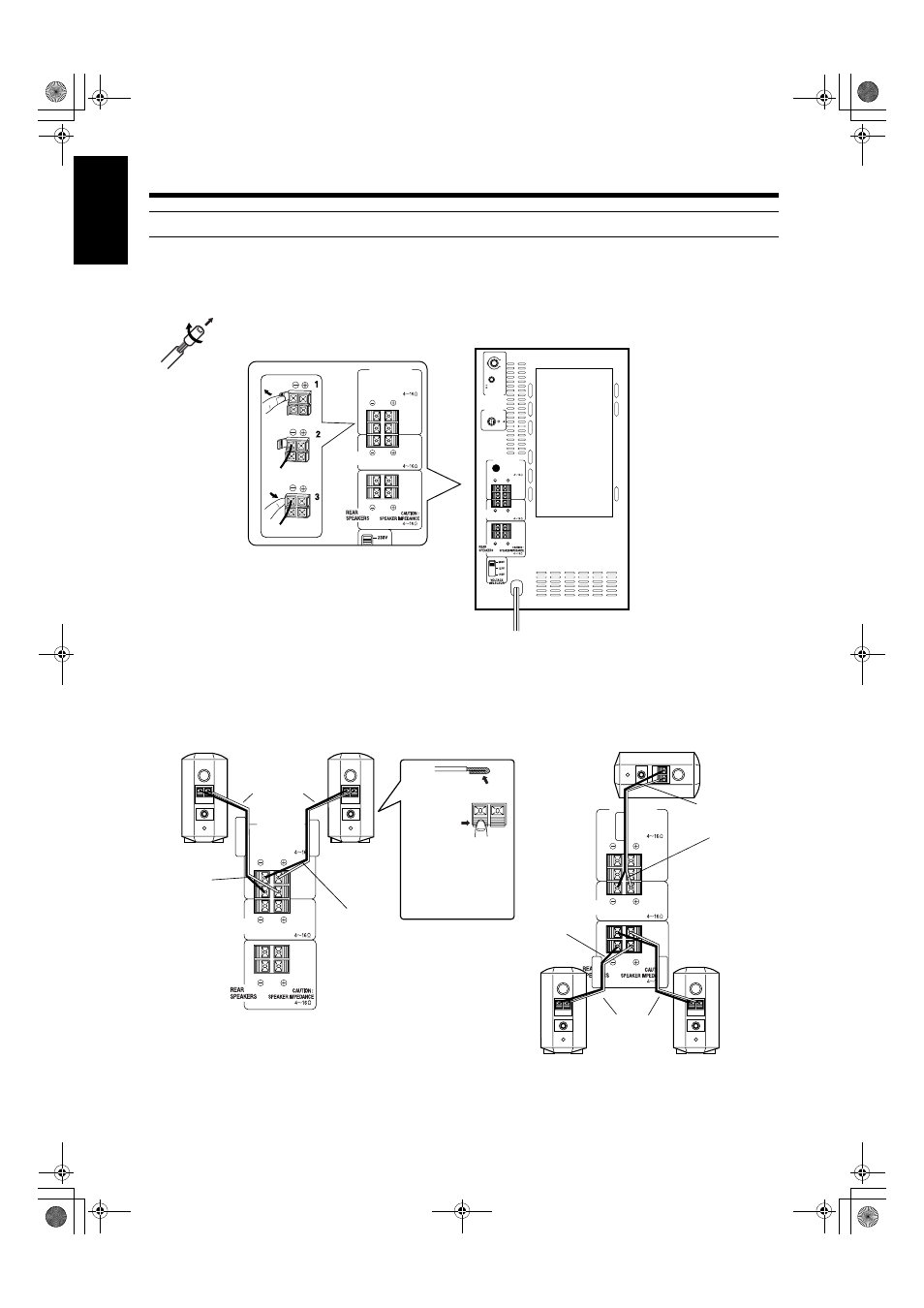

Connecting speakers
Connect the satellite speakers and center speaker to the terminals on the powered sub-woofer using the speaker cords supplied.
Labels are attached to the speaker cords to indicate the speaker and terminal to which each is to be connected.
• The four satellite speakers may be used at either front or rear.
• Ensure that the left and right speakers are connected to left and right respectively, and that they are connected with the correct polarity
(+ve, –ve). The white speaker cord connects to the + terminal, and the black speaker cord connects to the – terminal.
Connecting the front speakers
Connect the right speaker to the FRONT SPEAKERS RIGHT ter-
minal.
Connect the left speaker to the FRONT SPEAKERS LEFT termi-
nal.
Connecting the rear and center speakers
Connect the right rear speaker to the REAR SPEAKERS RIGHT
terminals.
Connect the left rear speaker to the REAR SPEAKERS LEFT ter-
minals.
Connect the center speaker to the CENTER SPEAKER terminals.
Note:
• Mixing up the polarity of the speaker cords can reduce the stereo effect and sound quality.
