1 Display the setting menu
3 Adjusts keystone correction
If one presses the cursor (vertical and horizontal arrows) in the
keystone correction mode, the keystone distortion can be adjusted.
4 Exit
Basic Operation (continued)
You can hide the image temporarily.
HIDE
Green light blinks
when the image is
hidden.
● Press the
HIDE
button again to display image.
● The power cannot be turned off when the image is temporarily
hidden.
D

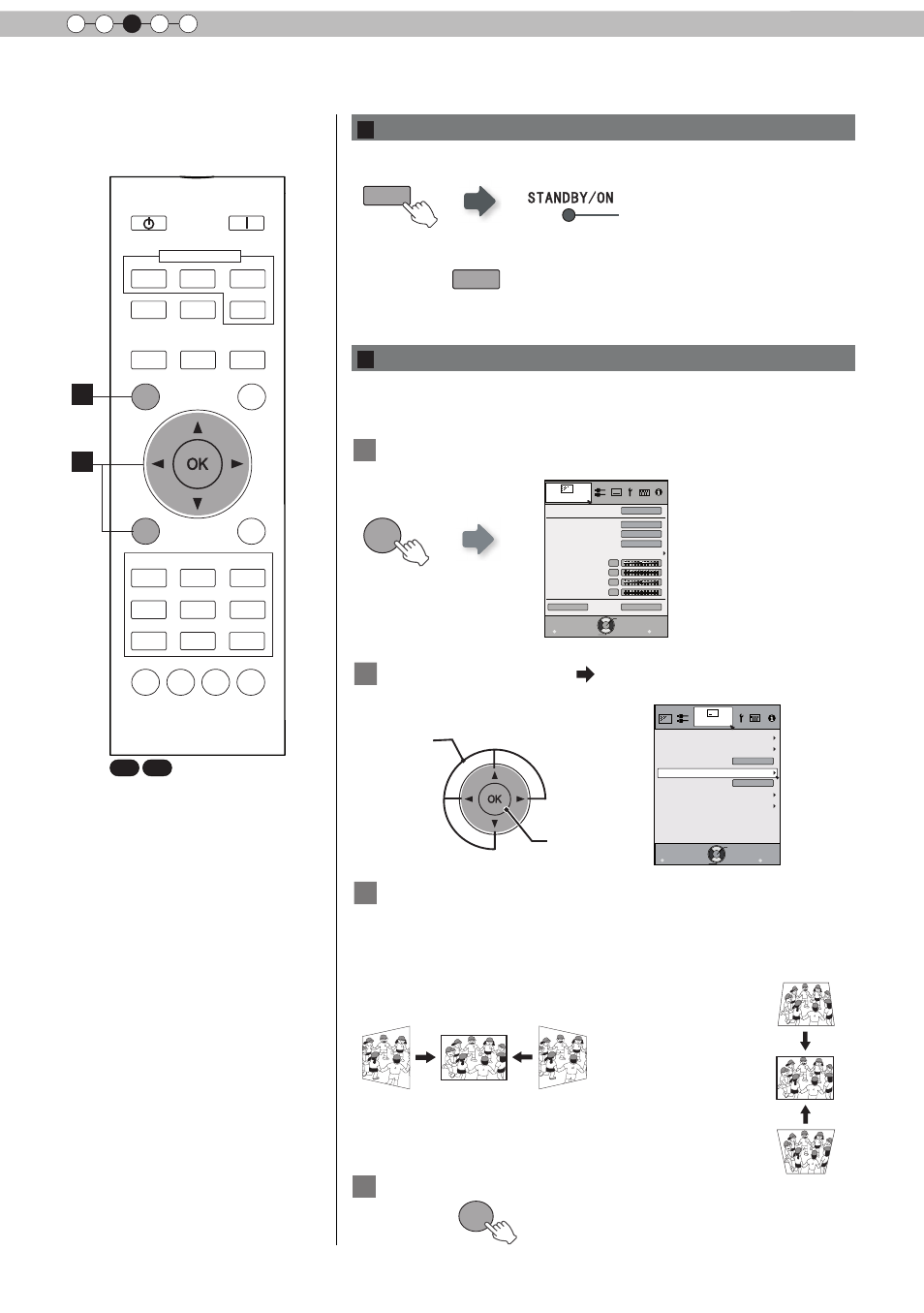

Adjustment of the keystone correction
C
Temporary turning-off of the video
In regards to the projection plane, any occurring keystone distortion
is adjusted in case the installation location is inclined.
2 Select “Installation” “Keystone”
① Selec
② Confirm
Exit
MENU BACK
Back
Select
Operate
Pixel Adjust
Installation
Lens Control
Anamorphic
Screen Adjust
Black Level
Installation Style Front
Off
Keystone
BACK
HIDE LIGHT
LENS AP. C.M.D
PC
HDMI 1
STAND BY
ASPECT
HDMI 2
ANAMO
COMP.
LENS.
CONTROL
MENU
GAMMA P.FILE
COLOR
ADJ.
PIC.
ON
FILM
NATURAL STAGE 3D
USER1 USER2 THX
ANIME CINEMA
PICTURE MODE
INPUT
TEMP
COLOR
C
D
Adjust horizontal distortion with the
cursors for left and right.
Adjust vertical
distortion with
the cursors for
up and down.
● When there is a 3D input
signal, adjustment is not
possible. Moreover, even if
the keystone correction is
adjusted, keystone correction
is removed when there is a 3D
input signal.
