34
Operation
3
Basic Operation (continued)
Frequently used useful functions

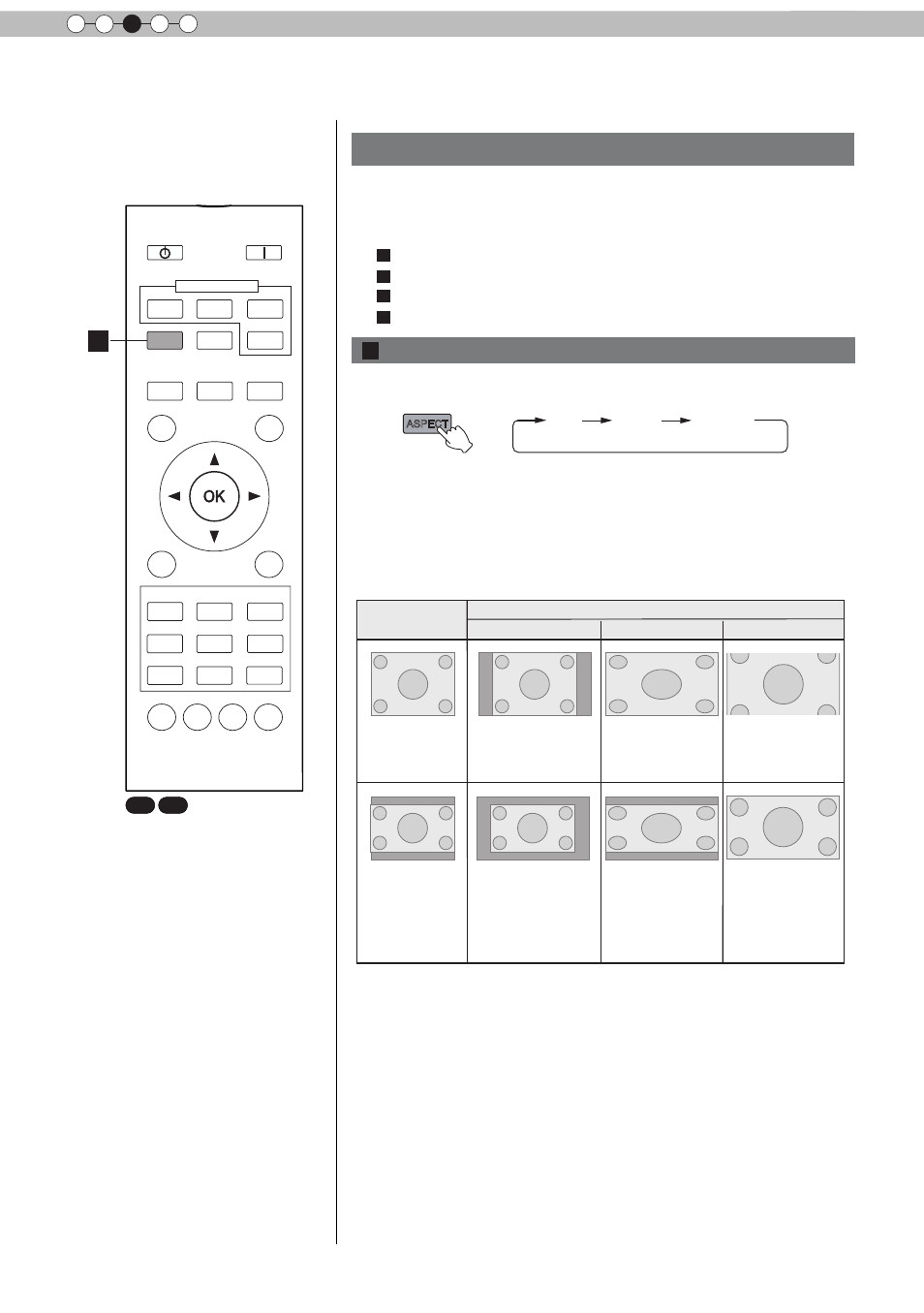

Setting the Screen Size
Masking the Surrounding Area of an Image
Temporary turning-off of the video
Adjustment of the keystone correction
The projected image can be set to a most appropriate screen
size (aspect ratio).
●
The screen size can also be set from “Aspect(Video)” of the
setting menu. (Reference page: 50)
● When PC signals are input, the “Aspect(Computer)” setting will be
available instead. (Reference page: 50)
■ Input Image and Projected Image by Different Screen
Size
Screen Size
4:3 16:9 Zoom
Input Image
SDTV(4:3) Aspect Ratio:Same
Most appropriate
screen size
Aspect Ratio:
Landscape
Image is stretched
horizontally
Aspect Ratio:Same
Top and bottom of
the image are
missing
SDTV(4:3)
Image recorded in
landscape (black
bands on top and
bottom) of DVD
software
Aspect Ratio:Same
Small image is
projected
Aspect Ratio:
Landscape
Image is stretched
horizontally
Aspect Ratio:Same
Most appropriate
screen size
● Depending on the input image, selecting “4:3” may result in a
vertically stretched image, while selecting “16:9” provides you
with the most appropriate screen size.
● When there is 3D signal input, the ratio is fixed to “16:9”.
ASPECT
4:3 16:9 Zoom
You can change the screen size of the projected image or
hide the surrounding area of an image for which quality at the
outer area has deteriorated.
A Setting the Screen Size
BACK
HIDE LIGHT
LENS AP. C.M.D
PC
HDMI 1
STAND BY
ASPECT
HDMI 2
ANAMO
COMP.
LENS.
CONTROL
MENU
GAMMA P.FILE
COLOR
ADJ.
PIC.
ON
FILM
NATURAL STAGE 3D
USER1 USER2 THX
ANIME CINEMA
PICTURE MODE
INPUT
TEMP
COLOR
A
A
B
C
D
RS50 RS50 RS60
