27
Preparation
ENGLISH
About the connection (Continued)
1 HDMI 2
RS-232-C
3D
C R/ P R C B/ P B Y
SYNCHRO PC TRIGGER
REMOTE
CONTROL
STANDBY/ON
MENU BACK
INPUT
OK
C
BD/DVD player
Component video output terminals
Y (green)
C
R
/P
R
(red)
C
B
/P
B
(blue)
● Set “COMP.” in the setting menu to “Y Pb/Cb Pr/Cr”. (Reference page: 52)
This unit
To component video input terminals
Component video cable
(sold separately)
■ Connecting via RGB Video Cable
● Set “COMP.” in the setting menu to “RGB”. (Reference page: 52)
● For information on compatible input signals, see “Specifications”.(Reference page: 73)
1 HDMI 2
RS-232-C
3D
C R/ P R C B/ P B Y
SYNCHRO PC TRIGGER REMOTE
CONTROL
STANDBY/ON
MENU BACK
INPUT
OK
This unit
Device equipped with
RGB output
RGB video cable
(sold separately)
RGB video output terminals
R(Red)
B(Blue)
G(Green) (Includes sync
signals)
To RGB video input terminals
■

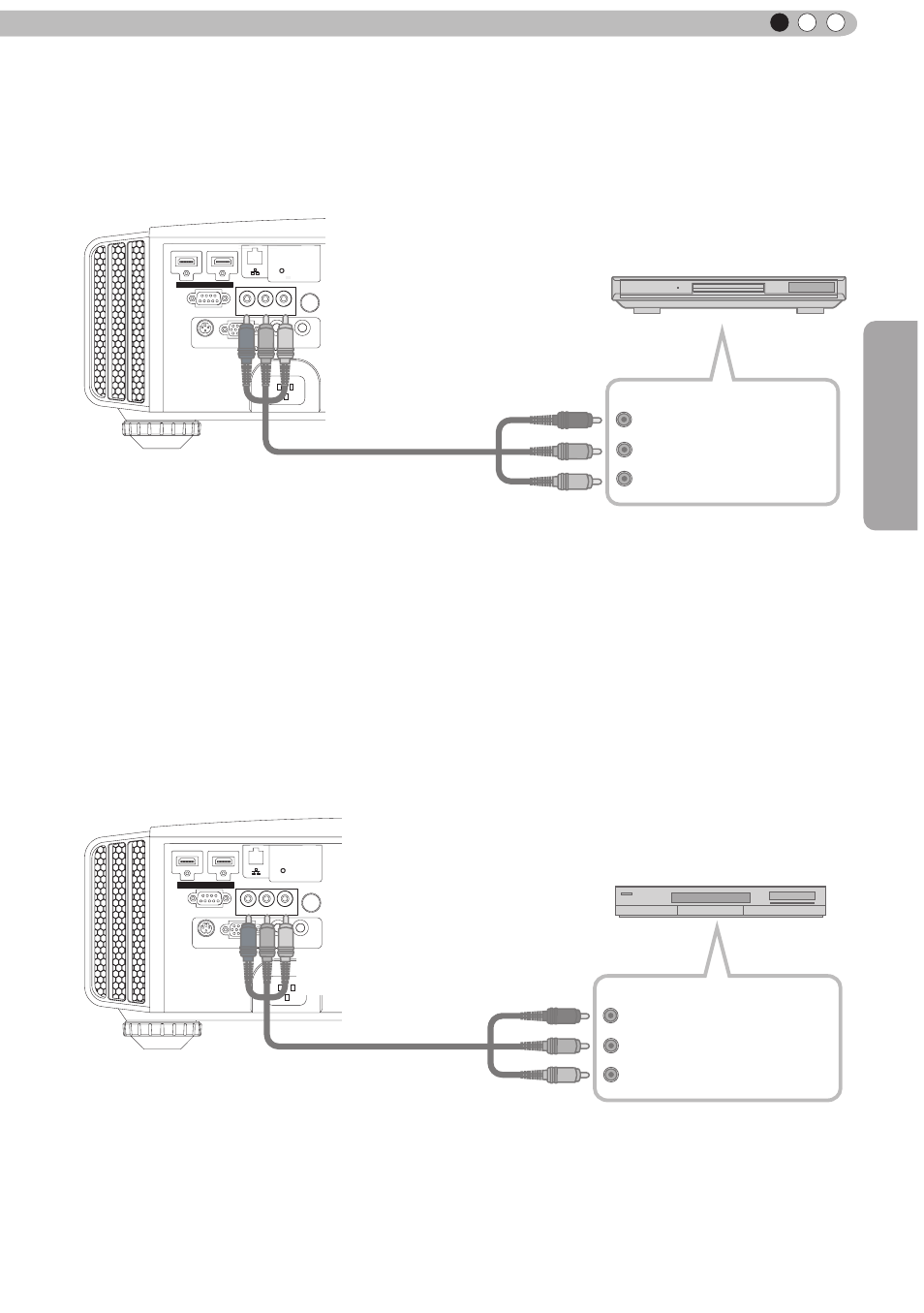

Connecting via Component Video Cable
