25
Preparation
ENGLISH

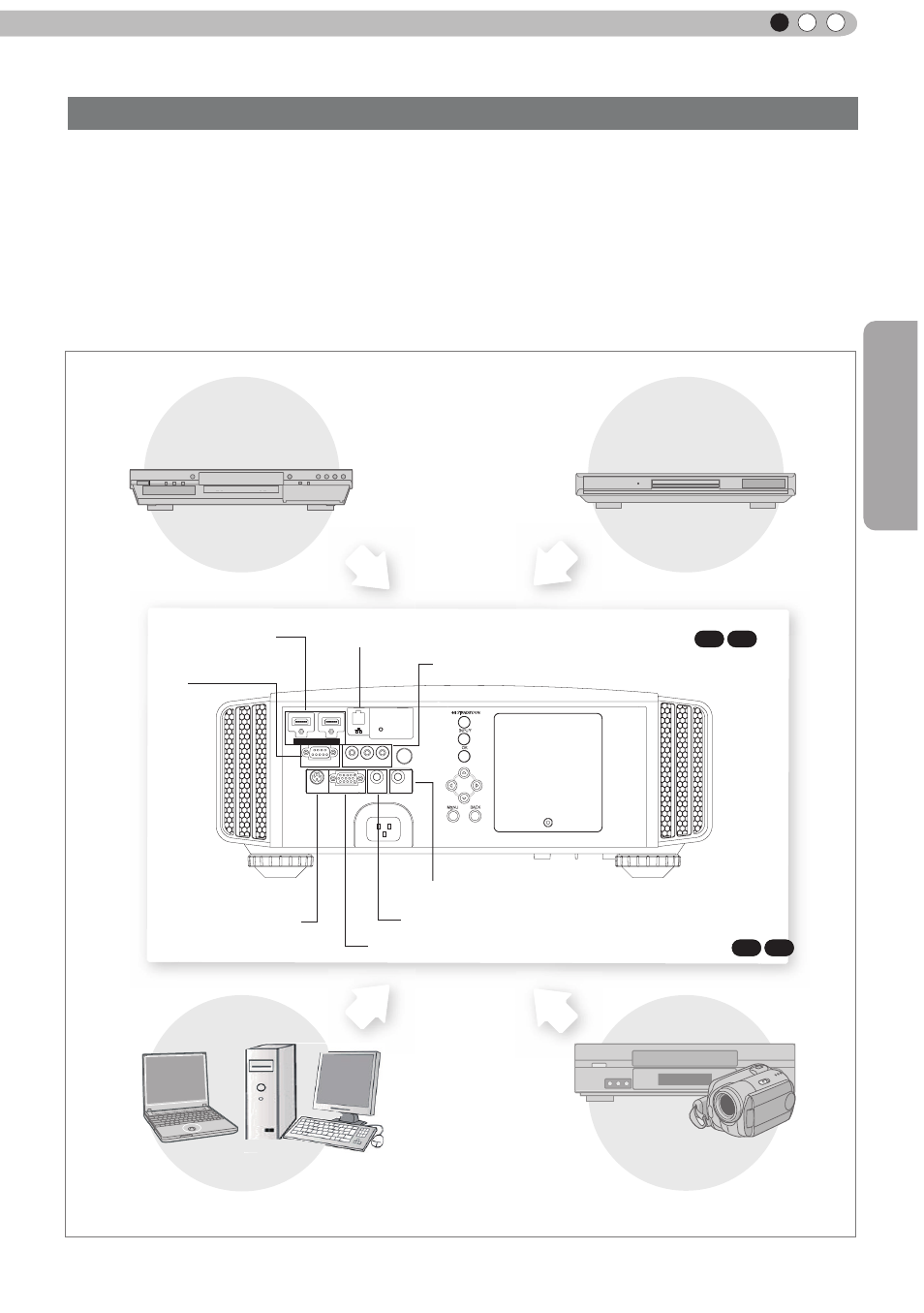

About the connection (Continued)
● Do not turn on the power until connection is complete.
● The connection procedures differ according to the device used. For details, refer to the instruction
manual of the device to be connected.
● This device is used for image projection. Connect to an audio output device such as amplifier and
speaker for audio output from the connected device.
● The images may not be displayed depending on the devices and cables to be connected.
For HDMI cable (sold separately), only use one that is HDMI-approved.
● It may not be possible to connect to this unit depending on the dimension of the connector cover of the
cables to be connected.
1 HDMI 2
RS-232-C
3D
C R/ P R C B/ P B Y
SYNCHRO PC TRIGGER REMOTE
CONTROL
STANDBY/ON
MENU BACK
INPUT
OK
To connect via HDMI
terminal
(Reference page: 26)
Connection to the unit
To connect via video terminal (Reference page: 27)
Connection by LAN terminal (Reference page: 30)
To connect via PC terminal(Reference page: 28)
Connection by 3D SYNCHRO
terminal (Reference page: 28)
Connection by REMOTE terminal (Reference page: 30)
To connect RS-
232C terminal
(Reference
page: 29)
PC
VCR and
camcorder
BD/DVD Recorder BD/DVD Player
To connect via Trigger terminal (Reference page: 29)
RS50 RS50 RS60
RS50 RS50 RS60
