18
By connecting a Digital TV Receiver, high definition pictures can be displayed on your monitor
in their digital form.
1 DIGITAL-IN
HDMI 1
R - AUDIO - L
HDMI to DVI Cable
After the connections have been made,
tighten the screw to secure the cables.
DTV device
Digital Out Audio Out
L R

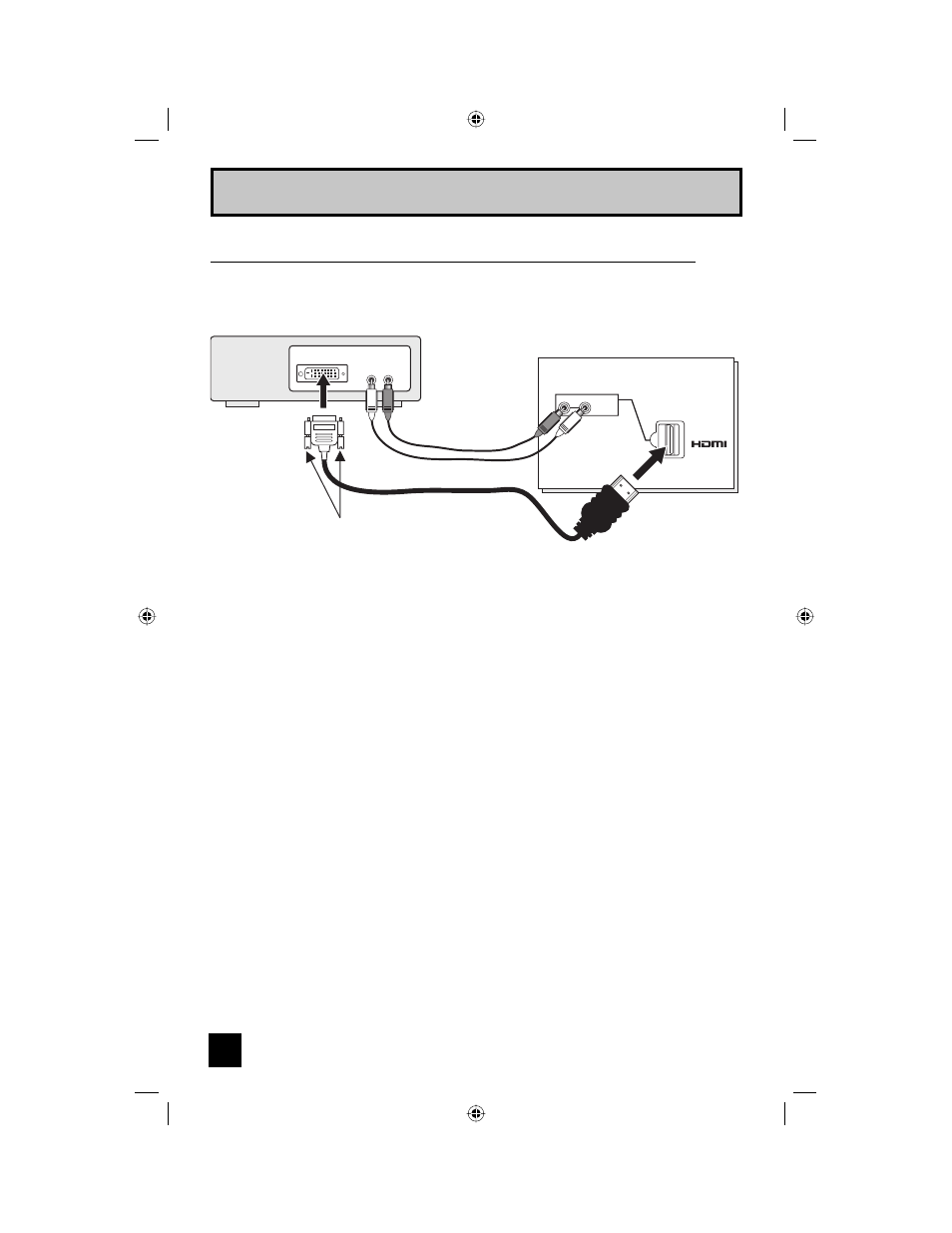

Connecting to a Digital TV Receiver
1) Connect the HDMI to DVI Cable from the DIGITAL OUT on the back of your DTV decoder, to
the HDMI1 DIGITAL-IN on the back of your monitor.
2) Connect a red cable from the DTV decoder RIGHT AUDIO OUT, to the RIGHT AUDIO
"HDMI 1" on the back of your monitor.
3) Connect a white cable from the DTV decoder LEFT AUDIO OUT, to the LEFT AUDIO
"HDMI 1" on the back of your monitor.
• Personal computer compatibility cannot be guaranteed.
• Use a HDMI to DVI cable (commercially available) in order to digitally connect the monitor
with a DTV decoder.
Notes:
• If 480p signals (640x480 or 720x480) are displayed on the screen, the horizontal balance
may be slightly shifted. Access the “DIGITAL-IN” in the initial setup menu to adjust it. (Refer
to page 44.)
• When you do the above connection, set DIGITAL-IN AUDIO in the Initial Setup menu to
ANALOG. See "DIGITAL-IN AUDIO", page 44.
Quick Setup
