Quick Setup
Notes:
• Green, blue and red are the most common colors for DVD cables. Some models may vary
colors. Please consult the user’s manual for your DVD player for more information.
• Be careful not to confuse the red DVD cable with the red audio cable. It is best to complete
one set of connections (DVD or audio output) before starting the other to avoid accidentally
switching the cables.
• You may also connect the DVD player to Input 1. (See Diagram #2 on page 16).
V R L
IN
OUT
Cable
In
Cable
Out
VCR
OR
Green
Monitor
Rear Panel
OVER
INPUT-1
INPUT-2
INPUT-3
HDMI 1
INPUT-1
INPUT-2
VIDEO
VIDEO
VIDEO
R - AUDIO - L
R - AUDIO - L
R - AUDIO - L
R - AUDIO - L
Y Pb Pr
Y Pb Pr
S-VIDEO
S-VIDEO
OVER
AUDIO OUT
R L
Y P
B
P
R
VIDEO OUT
DVD Player (Optional)
Blue Red

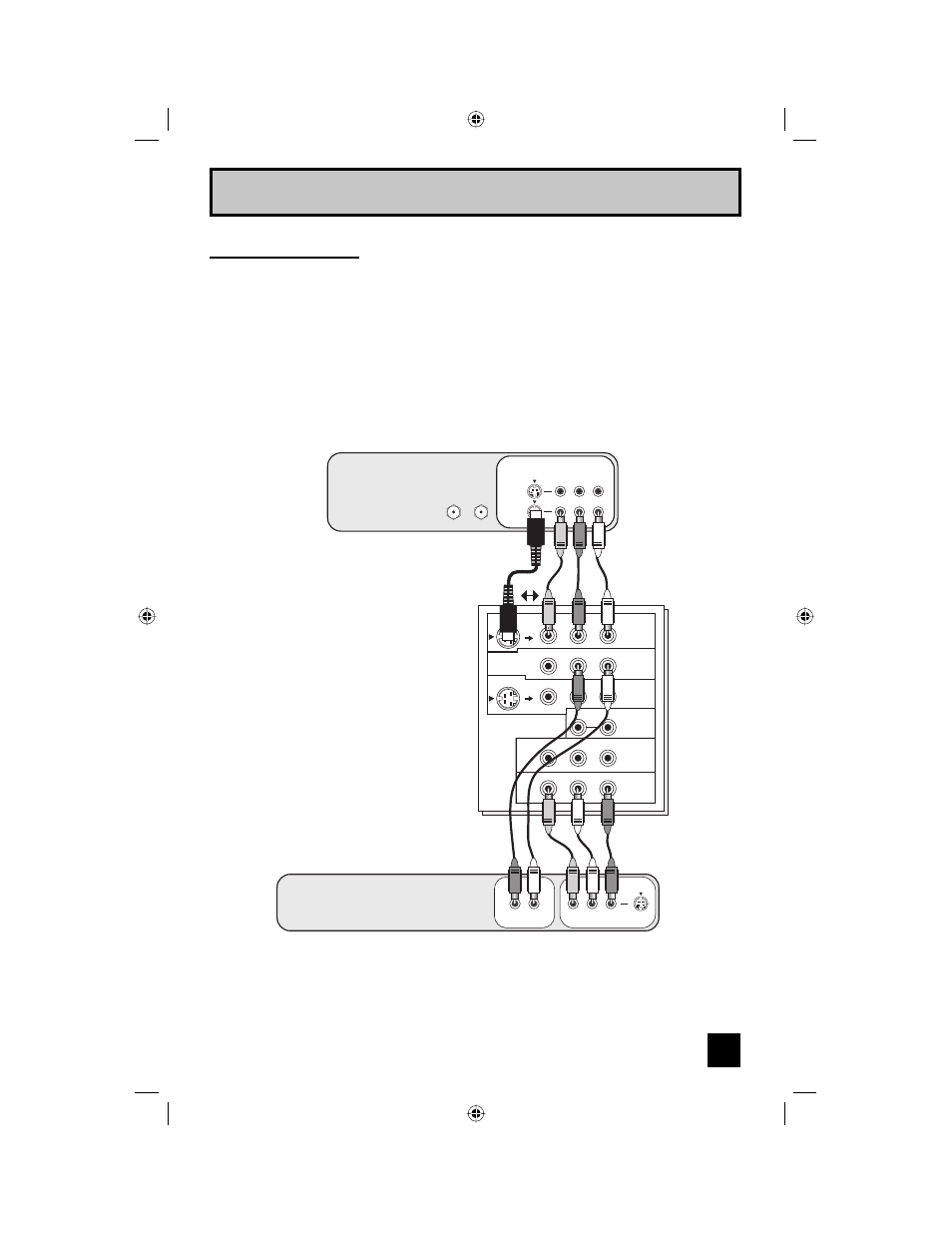

Diagram #1
VCR Connection
