ENGLISH

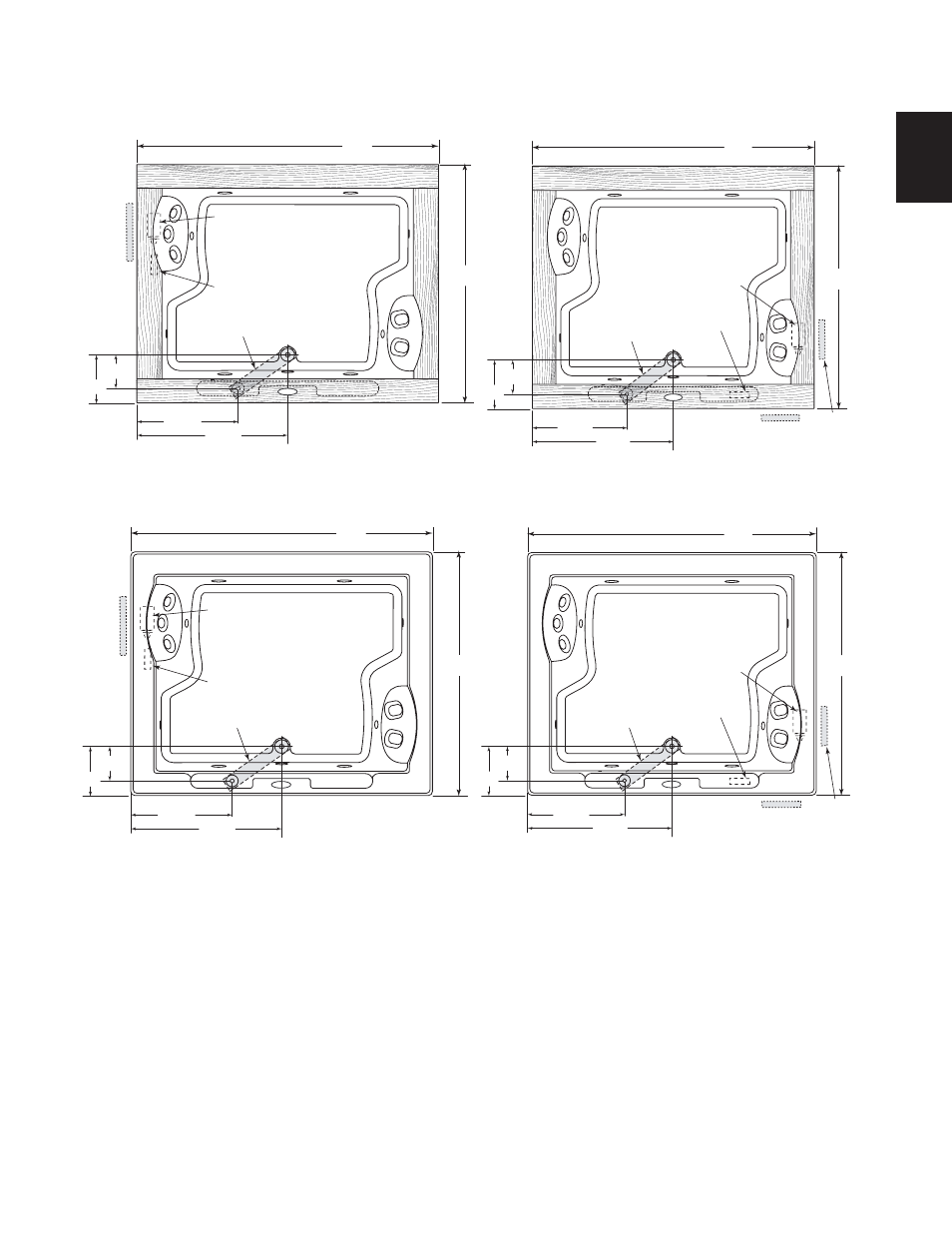

ROUGHING-IN REFERENCE

(RECTANGULAR)

NOTE: Some of these units have been provided with cutout templates included in shipping carton.
See CUTOUT information for each model on page 6-7.

9

Jacuzzi Whirlpool Bath DE99000A 3/06

ROUGHING-IN REFERENCE

NOTE:

1.

Unless otherwise specified, units are produced with left or right-hand versions.

2.

Service Access dimensions given are minimum size.

3.

Measurements inside each unit represent cutout in floor to allow for drain/overflow.

4.

All measurements are in inches. To convert to millimeters, multiply inches by 25.4.

5.

THE OVERALL DIMENSIONS ARE NOMINAL WITH A TOLERANCE OF +0 AND -1/4" (6,4 mm).

FUZION 7260 SINGLE MOTOR UNDERMOUNT

LEFT HAND MOTOR

Motor

Heater (S)

72"

60"

36"

24.19"

12"

8.47"

18-1/2" x 4"

12" H x 18" L

Service Access

Motor

Heater (S)

72"

60"

36"

24.19"

12"

8.47"

18-1/2" x 4"

12" H x 18" L
Service Access

Optional

Service Access

FUZION 7260 SINGLE MOTOR UNDERMOUNT

RIGHT HAND MOTOR

FUZION 7260 SINGLE MOTOR WITH WOOD FRAME

LEFT HAND MOTOR

72"

60"

36"

24.19"

12"

8.47"

18-1/2" x 4"

Motor

Heater (S)

12" H x 18" L

Service Access

Motor

Heater (S)

72"

60"

36"

24.19"

12"

8.47"

18-1/2" x 4"

12" H x 18" L
Service Access

Optional

Service Access

FUZION 7260 SINGLE MOTOR WITH WOOD FRAME

RIGHT HAND MOTOR
