ENGLISH

22

Jacuzzi Whirlpool Bath DE99000A 3/06

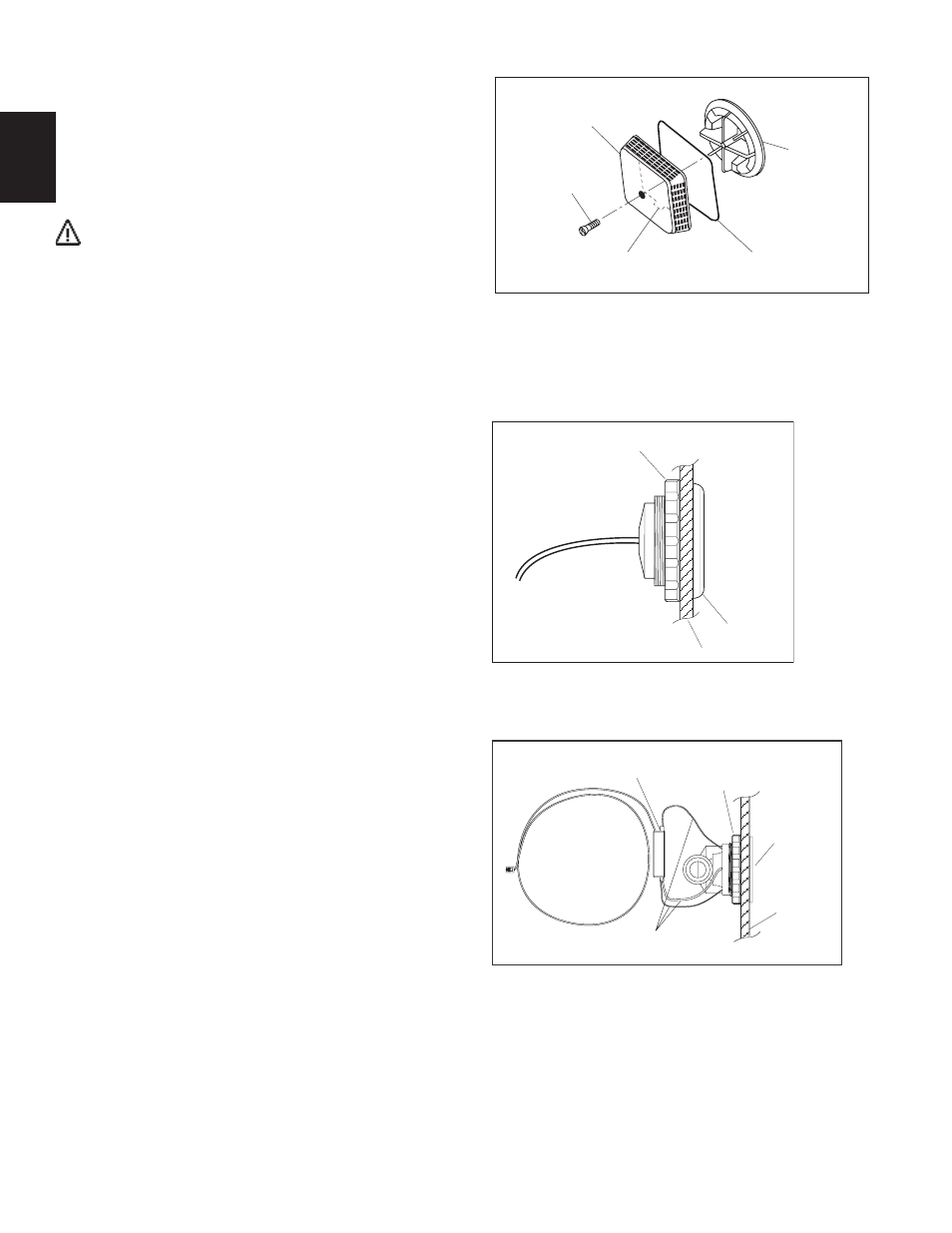

Suction Cover/Strainer Maintenance

Clean the suction cover/strainer of hair and debris when

necessary. To do this, remove the center screw and detach
the square cover. Clean the cover by backflushing debris
from the holes. Replace the suction cover immediately after
cleaning. When reinstalling, orient the cover/strainer with the
small notch at the bottom. The gasket must be inserted into
the groove of the cover/strainer before reinstalling onto the
suction fitting.

CAUTION: Keep hair a minimum of 6 inches (15,2 cm)
away from the suction fitting at all times when the whirl-
pool system is operating. Hair longer than shoulder length
should be secured close to the head, or a bathing cap
should be worn. Do not operate the whirlpool system
with the suction cover removed! It is a safety device and
must always be in place on the suction fitting to mini-
mize the potential hazard of hair and body entrapment.

NOTCH

GASKET

COVER STRAINER

SCREW

SUCTION
FITTING

SUCTION COVER/STRAINER ASSEMBLY

Chromotherapy Lighting

If your unit has Chromotherapy (LED) lighting and the lights

fail to function contact your Jacuzzi Whirlpool Bath dealer.
There are no customer serviceable components on the Chro-
motherapy lighting.

Replacement fixtures are available from your Jacuzzi

Whirlpool Bath dealer.

LIGHT BEZEL

SHELL

LOCKING NUT

LED LIGHT ASSEMBLY

Illumatherapy

TM

Lighting

If your unit has Illumatherapy

TM

(fiberoptic) lighting and

the lights fail to function contact your Jacuzzi Whirlpool Bath
dealer. There are no customer serviceable components on
the Illumatherapy lighting.

Replacement fixtures are available from your Jacuzzi

Whirlpool Bath dealer.

LIGHT BEZEL

SHELL

LOCKING NUT

JET WITH FIBEROPTIC LIGHTS

DIN BOX (MOUNTED

ONTO FIBERGLASS SHELL)

FIBEROPTIC CABLE
(ROUTED TO WHIRLPOOL
CONTROL BOX)

FIBEROPTIC CABLES
ROUTED FROM JET TO DIN BOX

MAINTENANCE INSTRUCTIONS
