SPECIFICATIONS
CORNER BATHS
MODEL
PRODUCT
WEIGHT
OPERATING
GALLONAGE
TOTAL WEIGHT/
FLOOR LOADING
DIMENSIONS
DRAIN/OVERFLOW
CUTOUT
HEATER
FUZION 6666
WITH TEAK
LH RH
FUZION 6666
WITH WENGE
LH RH
66"
(1676 mm) L
66"
(1676 mm) W
22-3/4" ( 578 mm) H
66"
(1676 mm) L
66"
(1676 mm) W
22-3/4" ( 578 mm) H
256 lb
(116.4 kg)
256 lb
(116.4 kg)
1923 lb
(874 kg)/
72.6 lb/ft
2
(354 kg/m
2
)
1923 lb
(874 kg)/
72.6 lb/ft
2
(354 kg/m
2
)
16-13/16" (427 mm) A
12-1/8" (308 mm) B
Factory Installed
(S749000 Heater)
Factory Installed
(S749000 Heater)
See
Page 11
Min - 124 U.S. gal
(469 liters)
Max - 176 U.S. gal
(666 liters)
Min - 124 U.S. gal
(469 liters)
Max - 176 U.S. gal
(666 liters)
See
Page 11

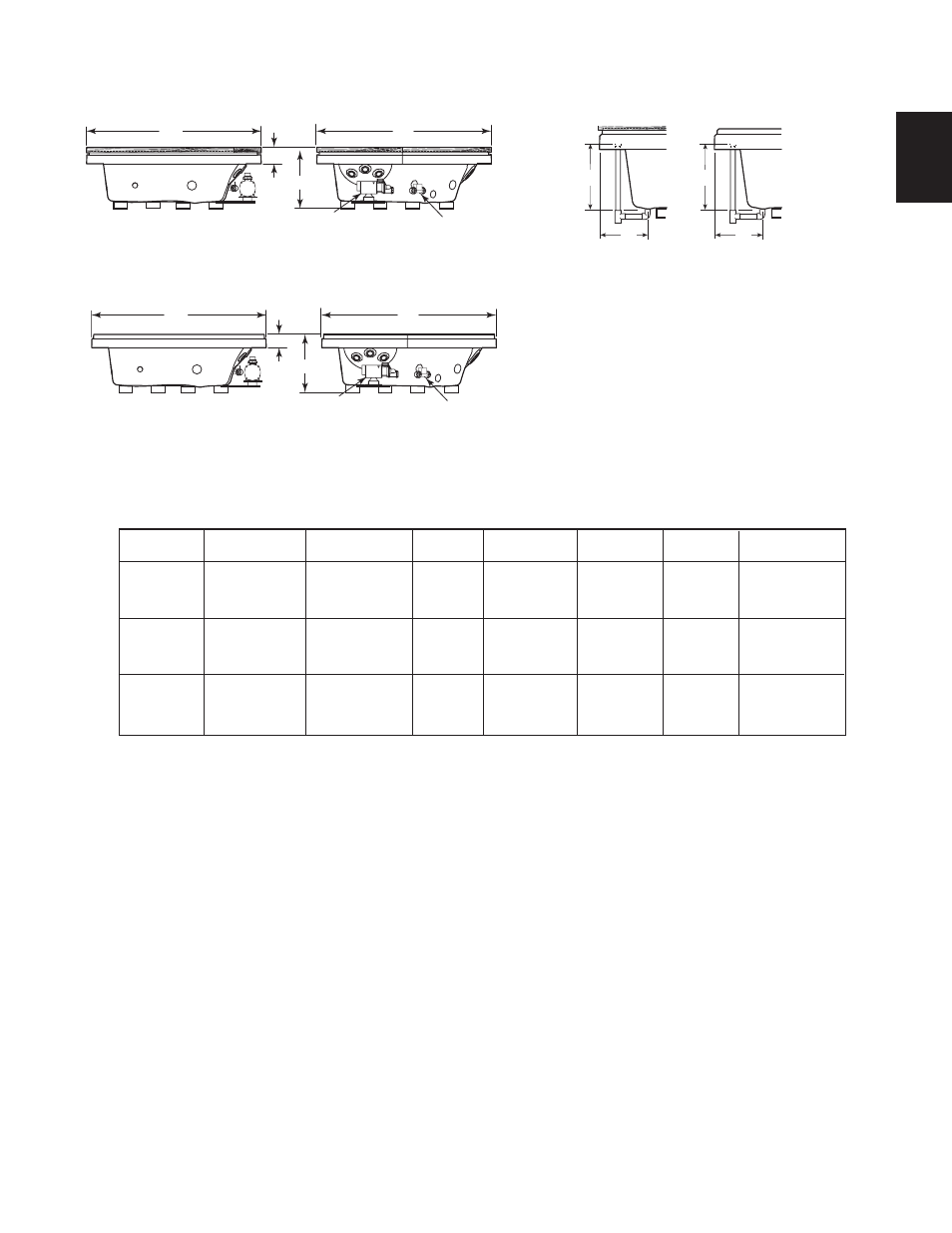

SPECIFICATIONS
(Corner)
(Heater)
(Motor)
L
H
W
(159 mm)
6-1/4"
SIDE VIEW
END VIEW
FUZION 6666 WITH WOOD FRAME
(Heater)
(Motor)
L
H
W
(127 mm)
5"
SIDE VIEW
END VIEW
FUZION 6666 UNDERMOUNT
DRAIN/OVERFLOW
B
A
B
A
Undermount
With Wood Frame
FUZION 6666
UNDERMOUNT
LH RH
66"
(1676 mm) L
66"
(1676 mm) W
21-1/2" ( 546 mm) H
184 lb
(83.5 kg)
1851 lb
(841 kg)/
69.8 lb/ft
2
(340 kg/m
2
)
Factory Installed
(S749000 Heater)
Min - 124 U.S. gal
(469 liters)
Max - 176 U.S. gal
(666 liters)
Template
Provided
P/N
DD43000
FOR ALL UNITS: Electrical Service Requirements: All require a dedicated GFCI protected separate circuit.
RapidHeat
TM
: 120 VAC, 15 AMP, 60 Hz. dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 20 AMP, 60 Hz. dedicated GFCI protected separate circuit.
NOTE: The overall dimensions are nominal with a tolerance of +0 and -1/4" (6,4 mm).
