Service Access

For partially or fully sunken installations, allow for ac-

cess to service connections. It is the installer's respon-
sibility to provide sufficient service access. The recom-
mended minimum dimensions allowable for service to
the bath are shown in the "Service Access" illustration.
The recommended location(s) of the service access are
shown on the Rough-in drawings.

Provide adequate area around unit for air circulation

for cooling the motor and to supply sufficient air to the
jets. Do not insulate this area or around motor.

MOTOR

18"

PREFERRED
ACCESS

ALTERNATE
ACCESS

18"

SERVICE ACCESS

(WITHOUT SKIRT)

12"

12"

FRONT

HEATER

In some cases, access may not have been provided

because of the design of the bath environment and hav-
ing full understanding that in this case, it may be neces-
sary to remove the unit for service.

If this is the case, diagnosing a problem may not be

possible without complete access to the plumbing sys-
tem. This would necessitate the removal of the unit.
Although this practice is not commonly implemented, it
is an acceptable method.

In some cases access may have been provided in

Area A but service is required in Area B which requires
the unit to be pulled for service and reinstalled.

If service access has not been provided, it is the

home owners responsibility to remove the bath and
provide the required access, should a repair become
necessary.

MOTOR

AREA

A

AREA

B

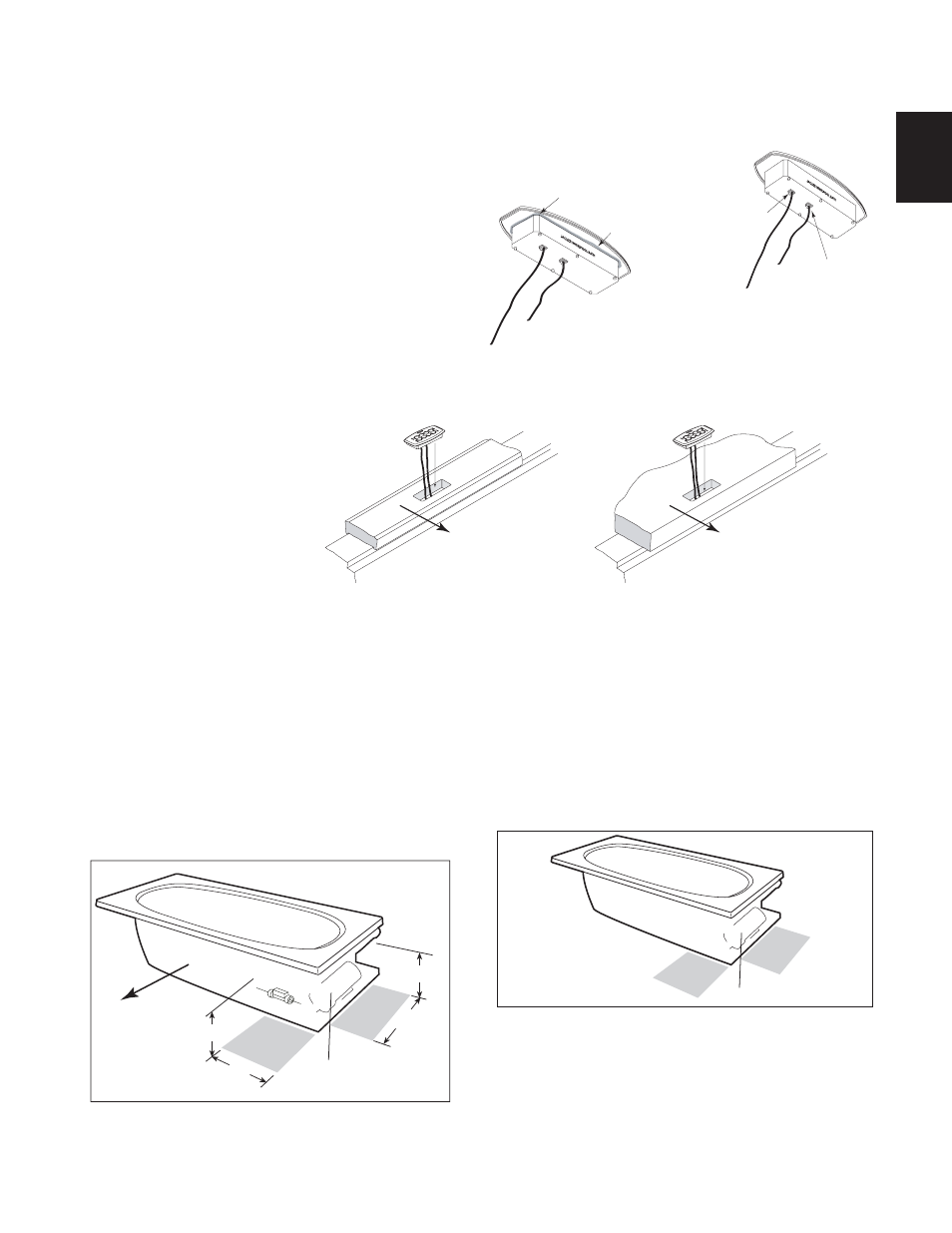

SERVICE ACCESS

INSTALLATION INSTRUCTIONS

Control Panel Installation

For drop-in and undermount installations, install the control panel as shown below.
The control panel cutout opening in the assembled wood frame and tub and in the assembled counter and tub

must be clear and free of adhesive.

Control panel and wire to be free of defects. Insert wire into panel connector.

Apply adhesive sparingly around base of control panel.

Thread wire through cutout and to control box. Orientate control panel so that the Jacuzzi logo is read from the inside

of the tub. Lower control panel in cutout and press firmly to embed adhesive.

Connect wire to control box.

Connect Blower

wire here

(Grey wire)

Connect Control Box

wire here

(Black wire)

Adhesive

Apply sparingly to
avoid squeeze out

Inside of tub

Inside of tub
