Connection During Two-Screen/Four-
Screen Mode Display
The two-screen/four-screen mode enables simultaneous display of signals from two or four computers.
To select the two-screen mode, set “Display Mode” in the Setting menu to “Double”. To select the four-screen mode, set it
to “Cross”. (
A Page 33)
Ⅵ Possible Input Signals and Projected Image
NOTE:
● This projector converts the frame rate to 60 Hz regardless of the synchronizing signal frequency at the computer’s end.
● The respective signals are displayed at the center of the split screen.
● When in the two-screen mode, the screen appears blue (or black depending on the setting) when there is no input.
Connecting Video Signals of
the Computer (Cont’d)
Computer 1, Computer 2
Output Status
Resolution Channel Link Status
2048 ן1200 1ch Single Normal 2048 ן1200
2048 ן1080 1ch Single Normal 2048 ן1080
1920 ן1200 1ch Single Normal 1920 ן1200
1920 ן1080 1ch Single Normal 1920 ן1080
1600 ן1200 1ch Single Normal 1600 ן1200
1280 ן1024 1ch Single Normal 1280 ן1024
1024 ן768 1ch Single Normal 1024 ן768
800 ן600 1ch Single Normal 800 ן600
640 ן480 1ch Single Normal 640 ן480
4096
DVI 1 DVI 3 2400
2048
4096
DVI 1
DVI 3
DVI 2
DVI 4
2400
1200
2048

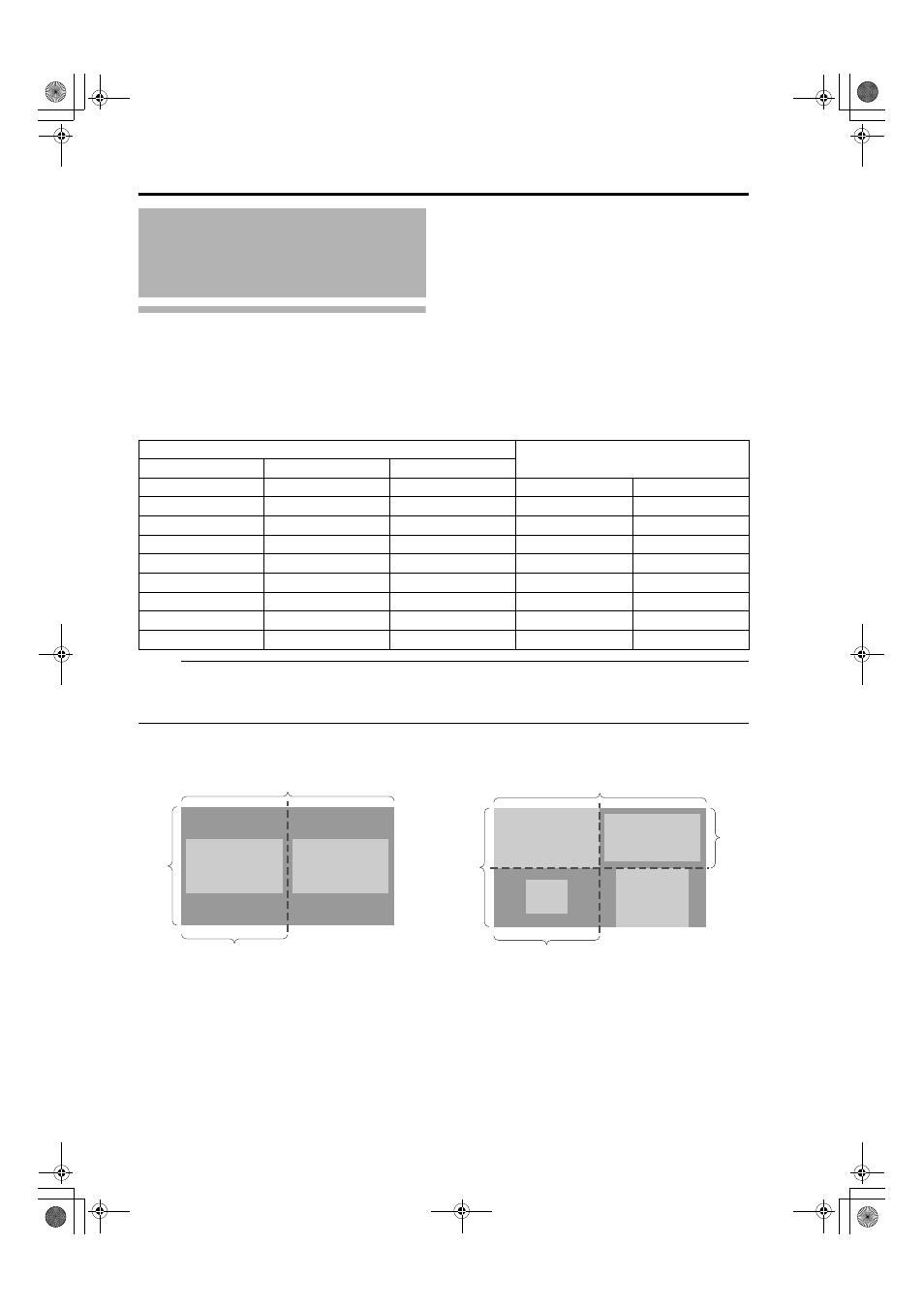

Two-Screen Mode
(Example) DVI 1: 1920
ן1080,
DVI 3: 1920 ן1080
Four-Screen Mode
(Example) DVI 1: 2048
ן1200, DVI 2: 1920ן1080,
DVI 3: 1024 ן768, DVI 4: 1600ן1200
