Getting Started
Front/Right Side
A
Air Inlet/Filter
The air inlets absorb air to cool the interior of the
projector. A filter is mounted inside the projector to
remove dirt in the air that enters through the inlets. Clean
the filter regularly. (
CAUTION:
● Do not block the air inlets with papers, cloth, or soft
cushions. Doing so may cause heat to trap inside the
projector and result in fire or malfunction.
B
Lens Cap (included with the optional lens)
Fit the cap on the lens when this projector is not in use to
prevent the lens from becoming dirty.
CAUTION:
● Do not project images with the lens cap attached. The
lens cap may be deformed due to the heat, or the
projector may malfunction.
C
Projection Lens (optional)
Zoom lens or short focal length lens is optional.
(
Remove the lens cap before projection.
D
Lens Mounting Bracket
Mount the optional projection lens.
E
Adjustable Feet (x 4)
Adjust the feet until the projector is level. The adjustable
range is 20 mm for each. (
F
Air Inlet/Filter
The air inlets absorb air to cool the interior of the
projector. A filter is mounted inside the projector to
remove dirt in the air that enters through the inlets. Clean
the filter regularly. (

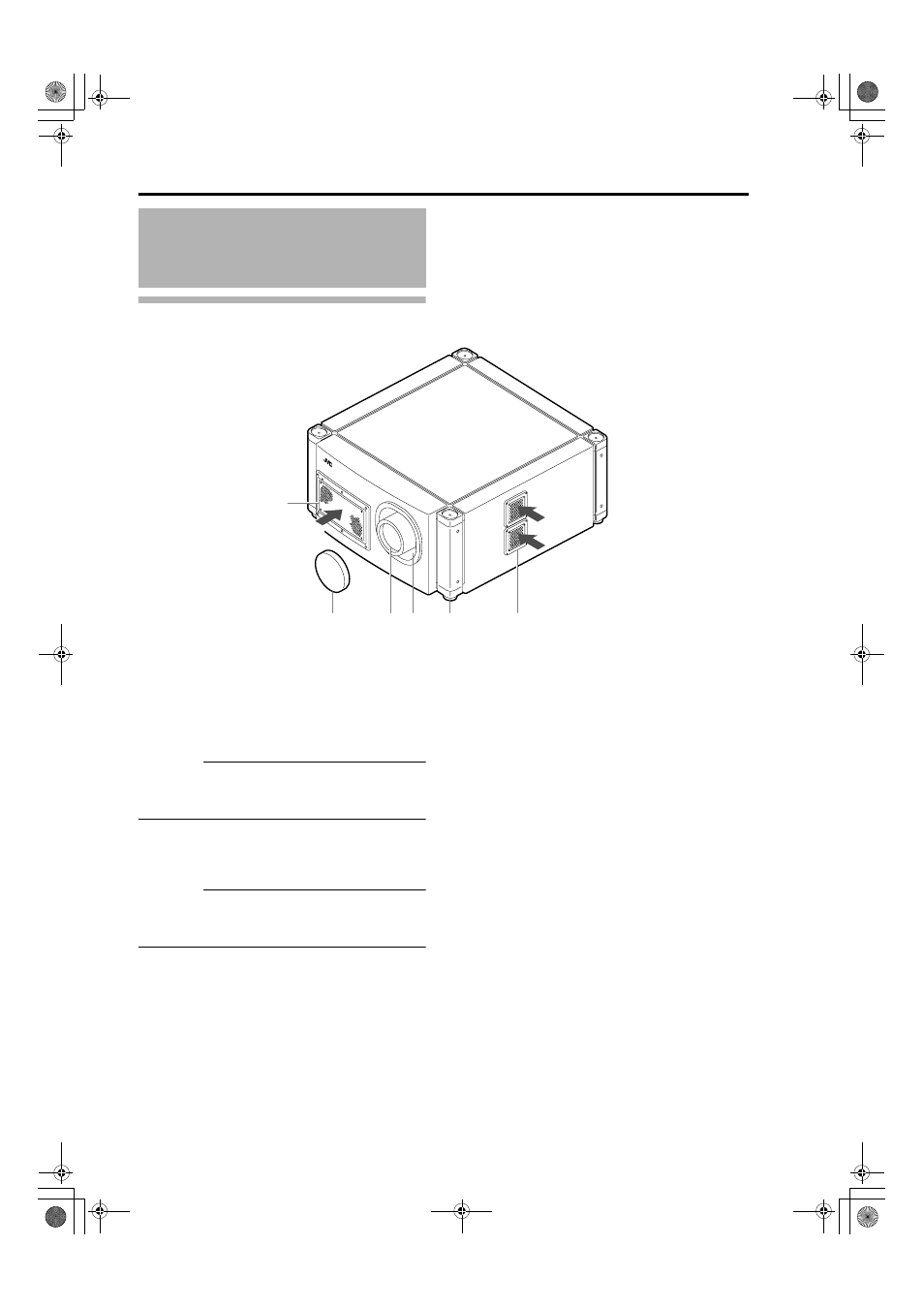

Names and Functions of Parts
Intake air
Intake air
A
B
C D
E
F
