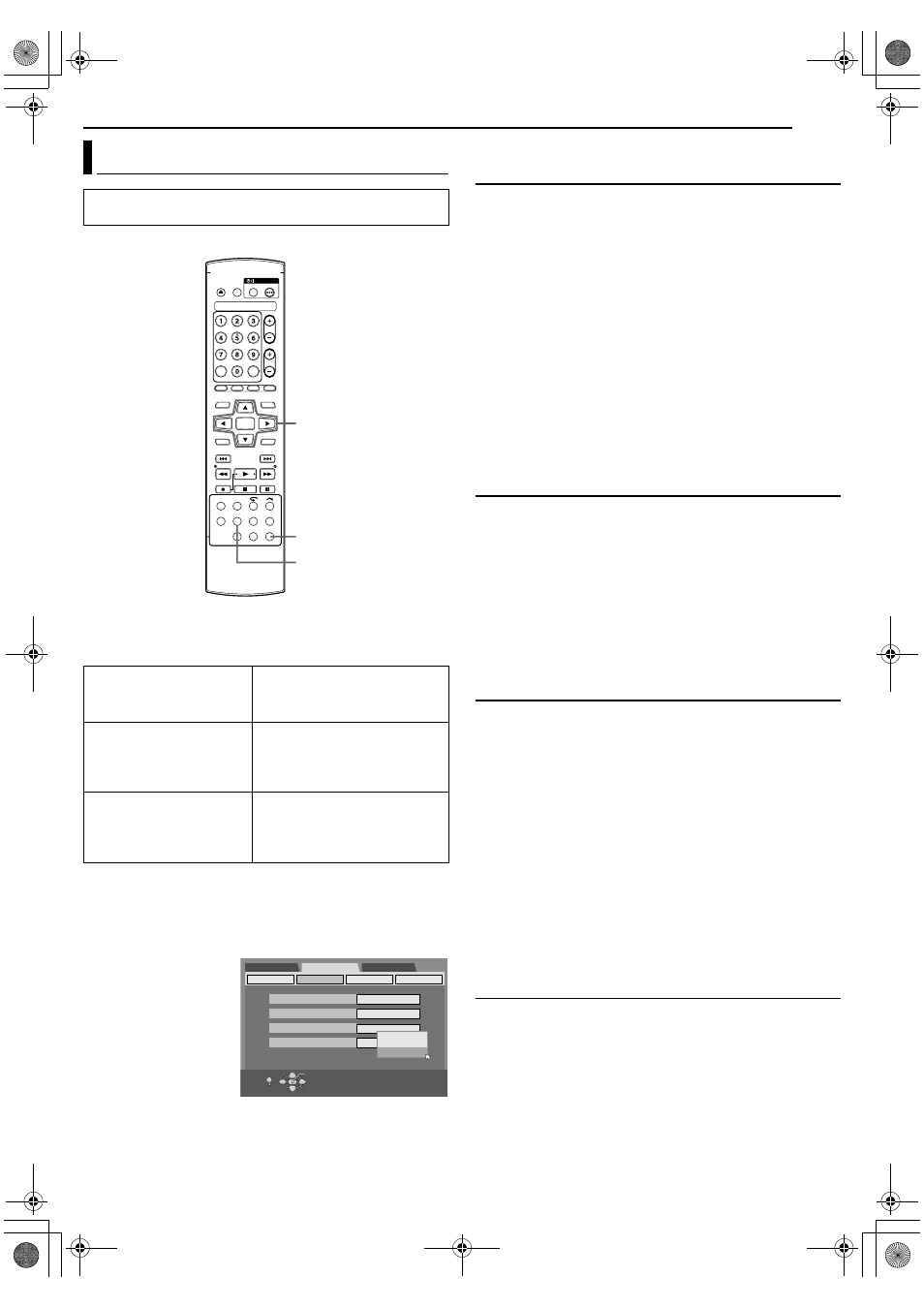

SUBSIDIARY SETTINGS
Various modes of this unit are categorised into menus nested in
2 levels shown in the following table. To change the settings of
these modes, find the desired mode in the menu, then follow the
procedure below. (For details on each menu, see pages 61 - 62)
● The procedure below shows how to set the desired option of the
AAUDIO RECB mode as an example.
1
Press SET UP to access the Main Menu screen.
2
Press selection keys to select AFUNCTION SET UPB, then
press ENTER.
3
Press selection keys to
select
ARECORDING
SET B, then press
ENTER.
4
Press selection keys to
select
AAUDIO RECB,
then press ENTER.
5
Press selection keys to
select the desired
setting, then press
ENTER.
6
Press SET UP to complete the setting.
* The boldface settings below indicate the settings at your purchase.
AUDIO OUTPUT
8
DIGITAL AUDIO OUT ^ DOLBY DIGITAL/PCM / STREAM/
PCM / PCM ONLY
Set to the appropriate mode according to the type of the device
connected to [DIGITAL AUDIO OUT] connector.
DOLBY DIGITAL/PCM :
Select this when you connect the digital input connector of a
Dolby Digital Decoder or an amplifier with a built-in Dolby Digital
Decoder.
STREAM/PCM :
Select this when you connect the digital input connector of an
amplifier with a built-in DTS, Dolby Digital, or MPEG
multichannel decoder.
PCM ONLY :
Select this when you connect the linear PCM digital input of
other audio equipment (amplifier, MD or DAT deck, etc.).
NOTE:
If you watch or play back a programme recorded on a DVD-RAM
or DVD-RW (VR mode only) disc which contains multiple audio
languages, select
APCM ONLYB in advance and choose main or
sub audio with AUDIO.
8
ANALOG AUDIO OUT ^ STEREO / DOLBY SURROUND
Select the appropriate setting to accommodate the unit to the
connected A/V equipment. This function takes effect when a
DVD VIDEO disc is played back.
STEREO :
Select this when listening to conventional two-channel stereo
audio with the unit’s [AUDIO OUT] connectors connected to a
stereo amplifier/receiver or TV set, or in case you want to
record the audio from a DVD VIDEO disc to a Mini Disc, etc.
DOLBY SURROUND :
Select this when listening to audio with the unit’s [AUDIO OUT]
connectors connected to an amplifier/receiver with a built-in
surround decoder or a surround decoder.
8
D. RANGE CONTROL ^ NORMAL / WIDE RANGE / TV MODE
The dynamic range (the difference between the loudest sound and
the quietest one) can be compressed during playback of a
programme encoded in Dolby Digital format.
This function takes effect when a DVD VIDEO disc recorded in
Dolby Digital format is played back at low or middle volume.
NORMAL :
Normally select this setting to activate this function.
WIDE RANGE :
Select this to deactivate this function when you enjoy wide
dynamic range programme.
TV MODE :
Select this when connecting to a TV. Even soft sound can be
well heard.
NOTES:
● This function has no effect on programmes other than those
recorded in Dolby Digital format.
● The effect of ANORMALB and AWIDE RANGEB may not be
different depending on discs.
8
OUTPUT LEVEL ^ STANDARD / LOW
You can lower the output level of analogue audio to accommodate
the unit to the connected A/V equipment.
STANDARD :
Normally select this setting.
LOW :
The output level of analogue audio is lowered.
Mode Set
● Turn on the unit.
● Turn on the TV and select an input mode such as EXT1.
DVD SET UP LANGUAGE SET (A pg. 21)
AUDIO OUTPUT (A pg. 61)
UTILITY (A pg. 70, 71)
FUNCTION SET UP VIDEO IN/OUT (A pg. 22, 58)
RECORDING SET (A pg. 62)
DISPLAY SET (A pg. 62)
OTHERS (A pg. 63)
INITIAL SET UP AUTO CH SET (A pg. 19, 66)
MANUAL CH SET (A pg. 67)
GUIDE PR (A pg. 65)
CLOCK SET (A pg. 69)
AUDIO
SET UP
(FGDE)
ENTER
Selection Keys
DVD SET UP FUNCTION SET UP INITIAL SET UP
VIDEO IN/OUT RECORDING SET OTHERS
SELECT WITH [CURSORS]
THEN PRESS [ENTER]
SAVE AS LIBRARY
XP MODE REC AUDIO
AUDIO REC
DISPLAY SET
DIRECT REC
ON
DOLBY DIGITAL
NICAM1/MAIN
NICAM2/SUB
NICAM1/MAIN
MONO
EXIT
OK
SELECT
SET UP
