SYSTEM CONNECTIONS
Connect the satellite receiver to the [L-2 IN/DECODER] connector,
then connect the [L-1 IN/OUT] connector to the TV’s connector.
NOTES:
● Set AL-2 SELECTB to AVIDEO/RGBB or AS-VIDEO/RGBB.
(A pg. 59)
● You can use the Automatic Satellite Programme Recording
function with this connection. (A pg. 43)
● To record a programme via the satellite receiver, select L-2 mode
by pressing PR +/– so that
AL-2B appears on the front display
panel.
● For details, refer to the instruction manual of the satellite
receiver.
These instructions enable you to connect your unit to a Dolby
Digital Decoder or an amplifier with built-in DTS.
1
Connect the unit and a Dolby Digital Decoder or an amplifier
with built-in DTS using an optional coaxial cable.
NOTE:
For details on [DIGITAL AUDIO OUT] connector setting, refer to
ADIGITAL AUDIO OUTB. (A pg. 61)
When you can’t switch the audio channel of a bilingual
programme
When the unit is connected with a digital audio device using an
optional coaxial cable and
ADIGITAL AUDIO OUTB is set to
ADOLBY DIGITAL/PCMB, it is not possible to switch the audio
channel of a bilingual programme recorded on a DVD-RAM or
DVD-RW (VR mode) disc. (A pg. 61). In this case, perform the
following steps using the remote control to switch
ADIGITAL AUDIO
OUT B from ADOLBY DIGITAL/PCMB to APCM ONLYB.
A Press SET UP to access the Main Menu screen.
B Press selection keys to select ADVD SET UPB, then press
ENTER.
C Press selection keys to select AAUDIO OUTPUTB, then press
ENTER.
D Press selection keys to select ADIGITAL AUDIO OUTB, then
press ENTER.
E Press selection keys to select APCM ONLYB, then press
ENTER.
F Press SET UP to complete the setting.
G Press AUDIO during playback to select the desired audio
channel.

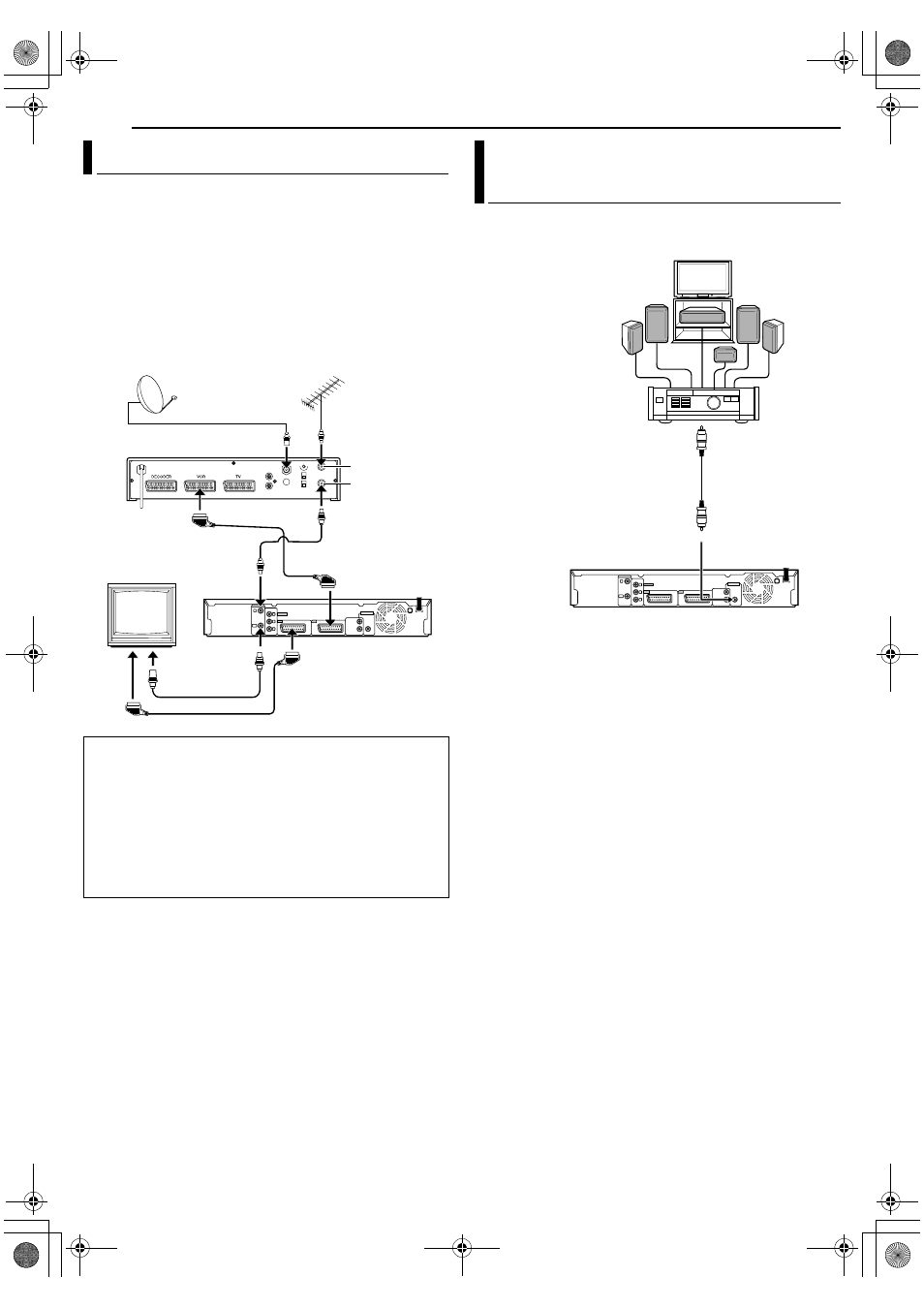

Connecting To A Satellite Receiver
IMPORTANT
When you set
AL-2 SELECTB to ASAT VIDEO/RGBB or ASAT S-
VIDEO/RGB B (A pg. 59), it is possible to view a satellite
broadcast with the TV set to an input mode such as EXT1 even if
the unit is turned off. When the unit is in Stop mode or recording,
press TV
z on the remote control to turn off the Video indicator
on the front display panel.
● If you turn on the unit when the satellite receiver’s power is off,
nothing appears on the TV screen. In this case, turn on the
satellite receiver, or set the TV to its TV mode, or press TV
z
on the remote control to set the unit to the AV mode.
Outdoor unit
Satellite cable
Satellite receiver
Aerial
TV aerial cable
ANTENNA OUT
ANTENNA IN
TV
Rear of unit
Connecting To A Dolby Digital Decoder
Or An Amplifier With Built-in DTS
LEFT
Dolby Digital Decoder or
amplifier with built-in DTS
Coaxial cable
(not supplied)
Rear of unit
To [DIGITAL OUT
(COAXIAL)]
To DIGITAL AUDIO
input
