VM9410
3
Antenna Jack
ACC
Auto antenna control(connect to antenna
control lead & power supply of antenna
amplifier)
External power amplifier control
GND
CENTER
SUB.W
SURROUND
REAR R
BATT
ACC
REVERSE +
ANT.CONT
P.CONT
PRK SW
FRONT L
FRONT R
SURROUND
REAR L
REAR L
FRONT L
FRONT R
AUX IN/L
AUX IN/R
AUX IN VIDEO
HEADPHONE L
HEADPHONE R
REAR VIDEO
OUT 1
REAR R
GREY
BLUE
RED
WHITE
PINK
YELLOW
GREEN/WHITE
BLACK
BLUE
BLUE/WHITE
WHITE/BLACK -
GREEN/BLACK -
RED
WHITE
WHITE
YELLOW
YELLOW
YELLOW
YELLOW
RED
WHITE +
GREEN +
PURPLE +
PURPLE/BLACK -
GREY/BLACK -
GREY +
FRO NT L+
FRO NT L-
FRO NT R+
FRO NT R-
REAR R+
REAR R-
REAR L+
REAR L-
Car
Antenna
FUSE(10A)
Battery
Ignition Switch
Ground
Reverse Driving Light Gearbox Switch
Rear View Video Camera
Parking Brake Light
Parking Brake Switch
Ground
External AV System
Rear Zone
Video 1
Wireless Headphone
BATTERY
External Power Amplifier
BATTERY +
Ground
WHITE
RED
RED
REAR VIDEO
OUT 2
Mute(leave open if not connected)
MUTE
BROWN
CD Changer IP-BUS Cable / BLACK
compatible with SANYO disc changers
CD Changer
Car Phone
Additional Rear
Zone Video

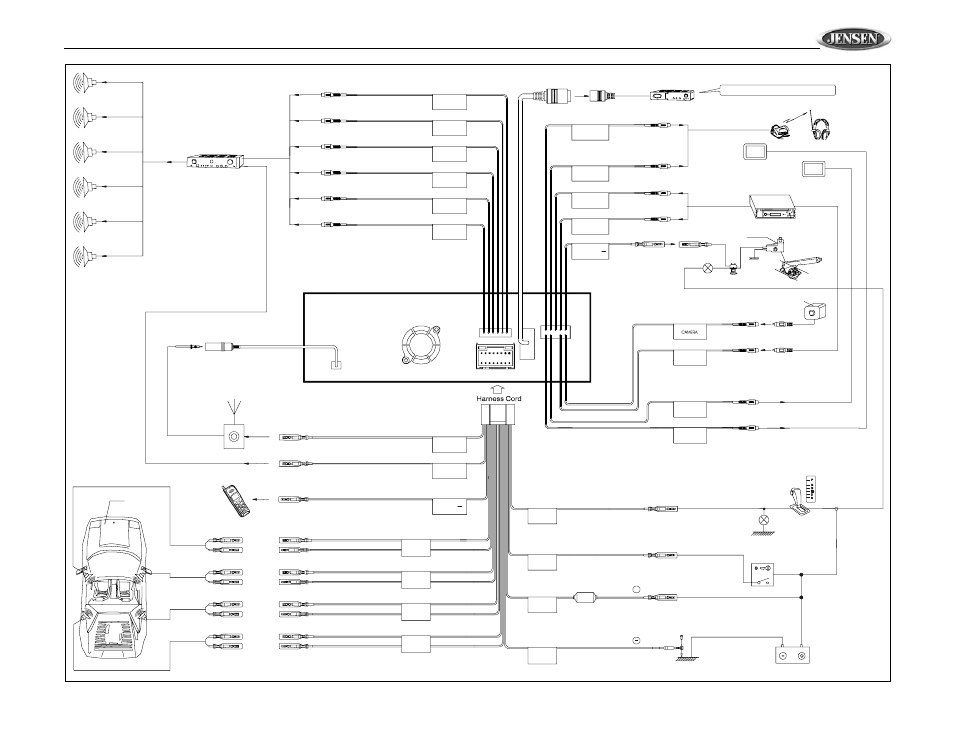

WIRING DIAGRAM
