DLA-G150HTE 1-38
No.51847
70

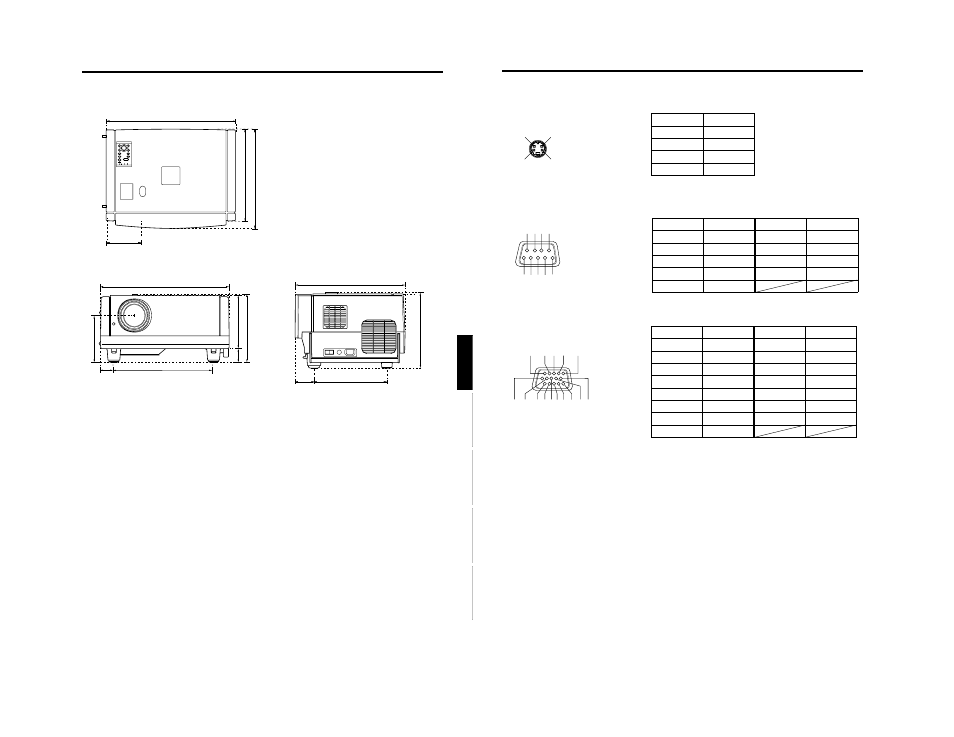

Specifications
Pin assignment (Specifications for terminals)
■ Y/C terminal
■ RS-232C terminal
■ PC1 terminal/PC OUT terminal
1 2
3 4
Pin number Signal name
1 GND (Y)
2 GND (C)
3 Y
4 C
2 3 4 5
6 7
1
8 9
Pin number Signal name Pin number Signal name
1 N/C 6 N/C
2 RD 7 N/C
3 TD 8 N/C
4 N/C 9 N/C
5 GND
1 2 3 4 5 6 7 8 9 10
11 12 13 14 15
Pin number Signal name Pin number Signal name
1 Red 9 N/C
2 Green 10 GND (SYNC)
3 Blue 11 GND
4 N/C 12 N/C
5 N/C 13 H.SYNC
6 GND (Red) 14 V.SYNC
7 GND (Green) 15 N/C
8 GND (Blue)
69
Specifications
ENGLISH
DEUTSH
FRAN
ÇAIS
ITALIANO
ESPAÑOL
Outside dimensions
■ Top
■ Front ■ Side
Unit: inch (mm)
3URWUXVLRQ H[FOXGHG
LAMP TEMP STAND BY
HIDE PC VIDEO MENU
KEYSTONE
PRESET
EXIT ENTER
OPERATE
133
505
369 393
505
392 52
53
212
204
265
393
256 70
265
