DLA-G150HTE

1-12

No.51847

Installing the Projector

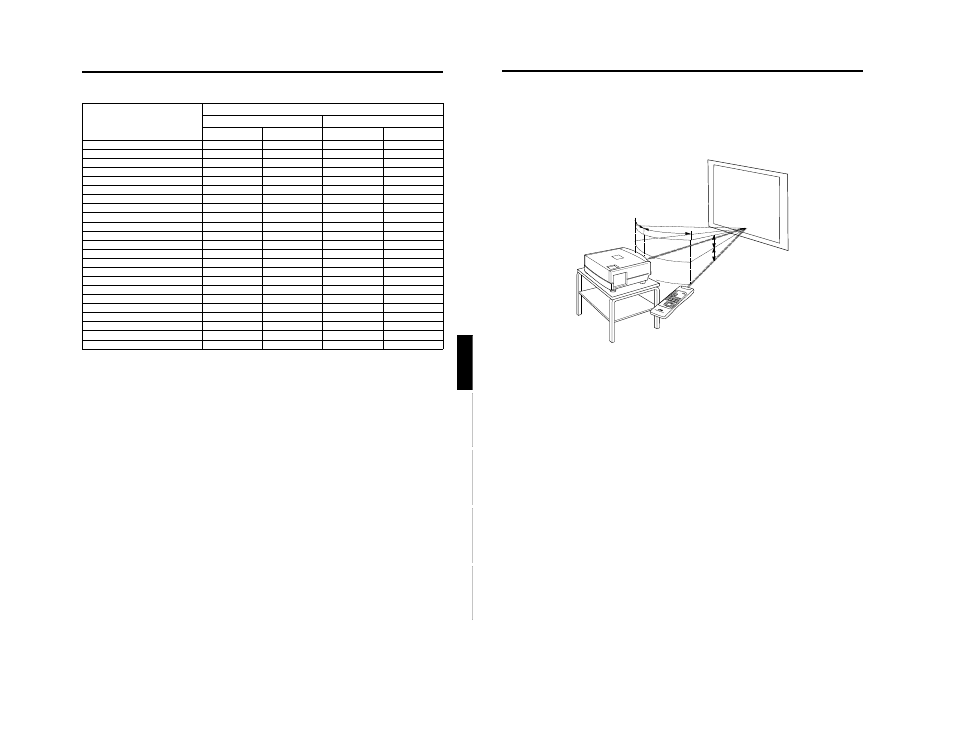

Effective Range and Distance of the Remote Control Unit

The remote control unit can be used as either a wireless remote control unit or a wired one.

■

Using as a wireless remote control unit

Aim the remote control unit toward the remote sensor on the front or the rear of the projector.
The operable distance of the remote control unit is about 10 m for direct reception. The remote control unit can be used by
having it reflected on the screen. In this case, the total distance of “A+B” should be about 10 m or less. The operable angles
of the remote control unit are 15° right and left, and 15° up and down.

15˚

Projector

Screen

Remote control unit

Installing the Projector

ENGLISH

DEUTSH

FRAN

ÇAIS

ITALIANO

ESPAÑOL

Relationship between Projector Distances and Projector Screen Size

Projection screen size

(Diagonal length)

Approximate projection distance unit: ft (m)

For 4:3 aspect-ratio screens

For 16:9 aspect-ration screens

Wide end

Tele end

Wide end

Tele end

40" (approx. 101.6 cm)

---------

8.53 (2.60)

42" (approx. 106.7 cm)

---------

8.23 (2.51)

---------

9.96 (2.73)

50" (approx. 127.0 cm)

---------

9.74 (2.97)

---------

10.60 (3.23)

60" (approx. 152.4 cm)

---------

11.65 (3.55)

8.50 (2.59)

12.66 (3.86)

70" (approx. 177.8 cm)

9.09 (2.77)

13.55 (4.13)

9.84 (3.00)

14.73 (4.49)

80" (approx. 203.2 cm)

10.33 (3.15)

15.42 (4.70)

11.22 (3.42)

16.80 (5.12)

100" (approx. 254.0 cm)

12.83 (3.91)

19.23 (5.86)

13.94 (4.25)

20.90 (6.37)

150" (approx. 381.0 cm)

19.09 (5.82)

28.71 (8.75)

20.77 (6.33)

31.23 (9.52)

200" (approx. 508.0 cm)

25.33 (7.72)

38.16 (11.63)

27.59 (8.41)

41.54 (12.66)

240" (approx. 609.6 cm)

30.35 (9.25)

45.73 (13.94)

33.04 (10.07)

49.80 (15.18)

250" (approx. 635.0 cm)

31.59 (9.63)

47.64 (14.52)

34.38 (10.48)

51.87 (15.81)

300" (approx. 762.0 cm)

37.86 (11.54)

57.09 (17.40)

41.21 (12.56)

62.17 (18.95)

310" (approx. 787.4 cm)

39.11 (11.92)

58.99 (17.98)

42.59 (12.98)

64.24 (19.58)

320" (approx. 812.8 cm)

40.35 (12.30)

60.89 (18.56)

43.93 (13.39)

---------

330" (approx. 838.2 cm)

41.60 (12.68)

62.76 (19.13)

45.31 (13.81)

---------

340" (approx. 863.6 cm)

42.85 (13.06)

64.67 (19.71)

46.65 (14.22)

---------

350" (approx. 889.0 cm)

44.09 (13.44)

---------

48.03 (14.64)

---------

400" (approx. 1016.0 cm)

50.36 (15.35)

---------

54.86 (16.72)

---------

450" (approx. 1143.0 cm)

56.63 (17.26)

---------

61.65 (18.79)

---------

470" (approx. 1193.8 cm)

59.12 (18.02)

---------

64.37 (19.62)

---------

480" (approx. 1219.2 cm)

60.37 (18.40)

---------

500" (approx. 1270.0 cm)

62.89 (19.17)

---------

521" (approx. 1323.3 cm)

65.52 (19.97)

---------
