PANEL1173-841 User’s Manual
Hardware Installation 26
2.7 Ethernet
The PANEL1173-841 provides a NE2000 compatible Ethernet (RJ-45)
interfaces. For network connection, just plug in one cable end of the
system’s 10/100/1000-Base-T Hub into a standard RJ-45 connector.

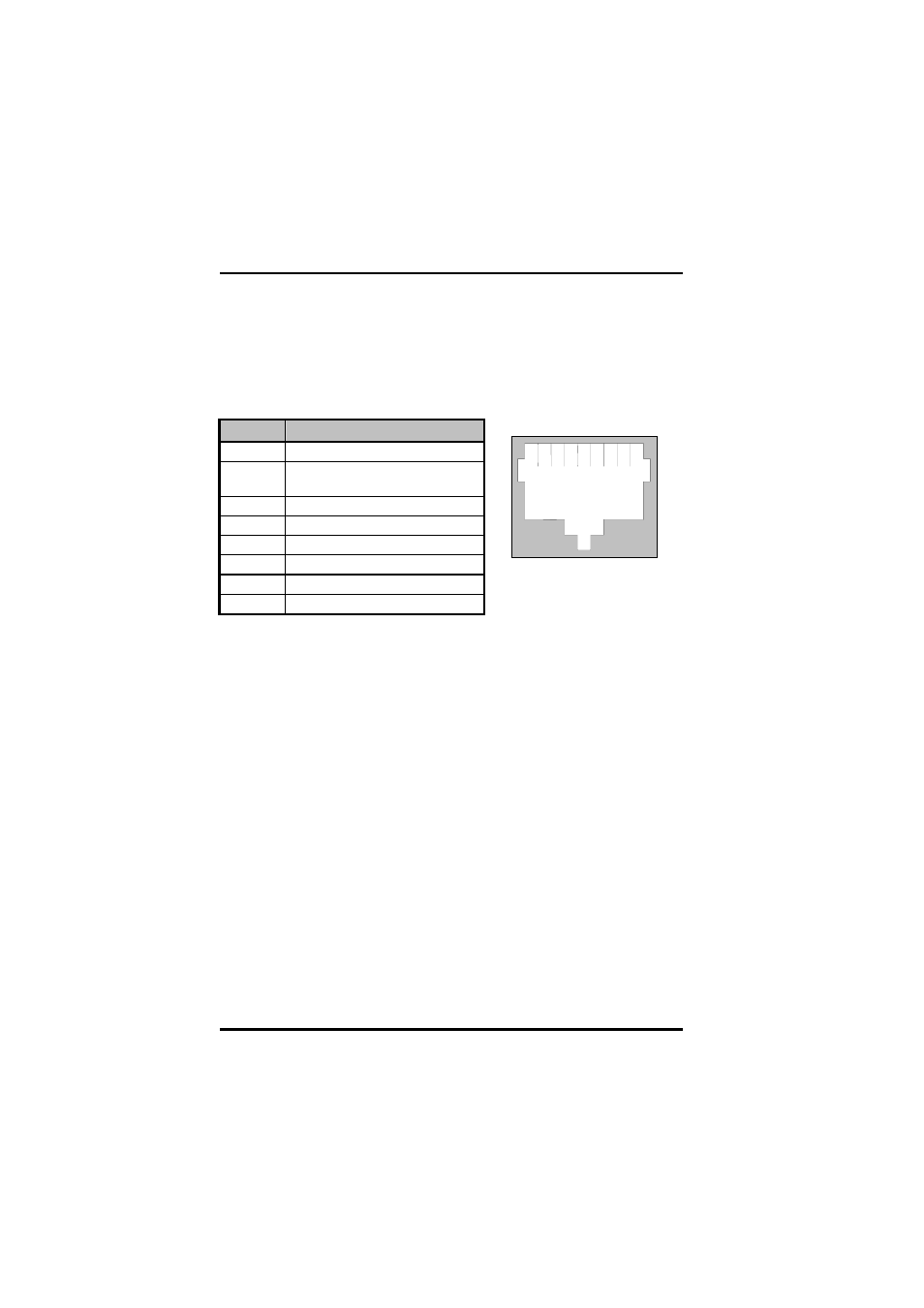

Please refer to detailed pin assignment list below:
Pin Signal
1 TX+ (Data transmission positive
2 TX- (Data transmission
negative)
3 Rx+(Data reception positive)
4 RJ45 termination
5 RJ45 termination
6 Rx- (Data reception negative)
7 RJ45 termination
8 RJ45 termination
1 2 3 4 5 6 7 8
RJ-45
