PANEL1173-841 User’s Manual

Hardware Installation

2.2 Installing the the Hard Disk Drive

The PANEL1173-841 offers a convenient drive bay module for users
to install HDD. The system offers users one 3.5” Hard Disk Drives for
installation. If you want to install dual 3.5” HDD, or 2.5” HDD, the
PANEL1173-841 also provides the dual 3.5” and dual 2.5” drive
holder to meet your requirement. Please follow the steps:

Note The hardware limitation is that the 2.5” HDD and 3.5”

HDD CAN NOT exist simultaneously.

Step 1

Unscrew screws to remove the rear chassis.

Step 2

Remove the riser card fix kit.

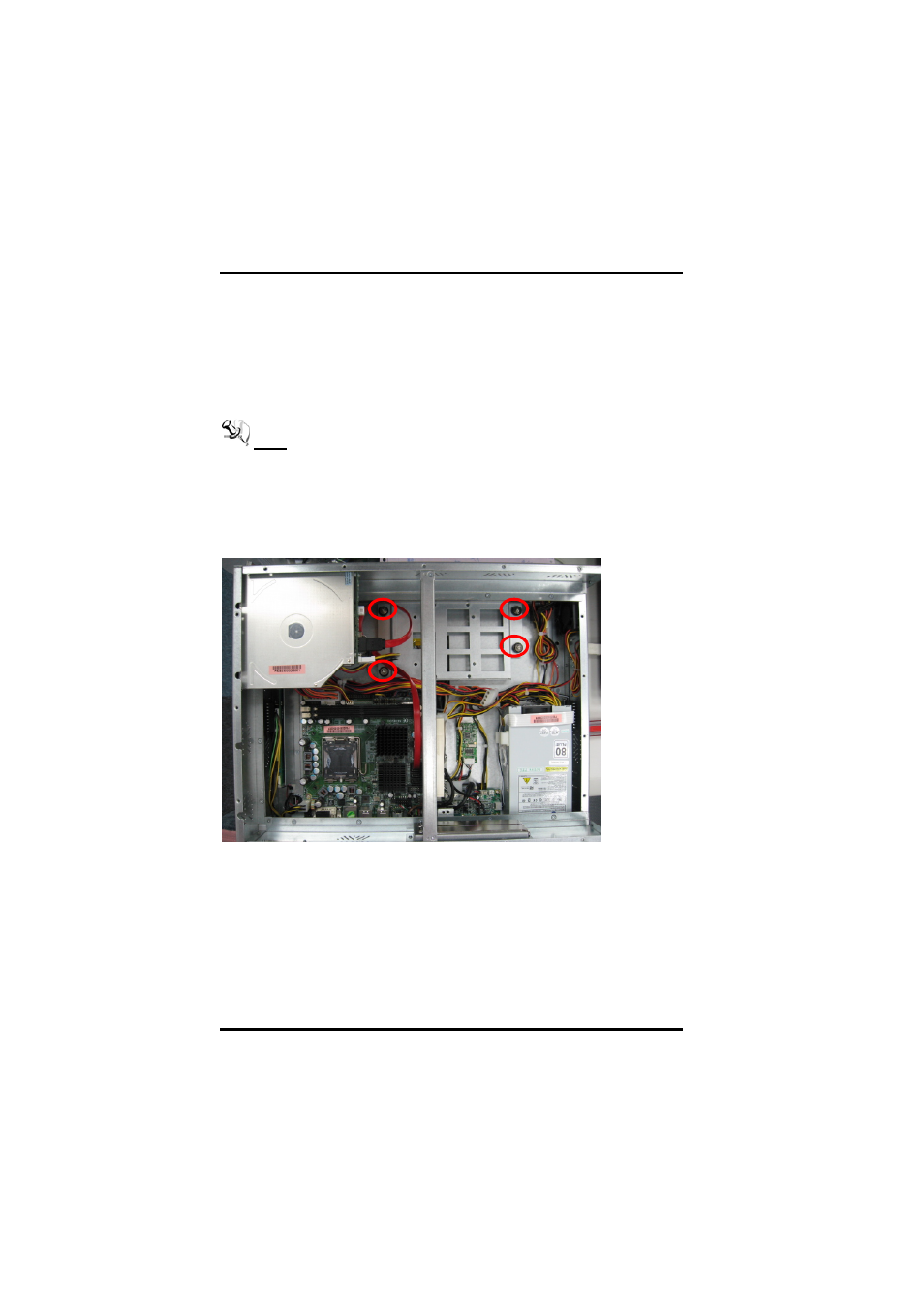

Step 3

Unscrew 4 screws from the HDD drive bracket, and take out
HDD bracket kit to install 3.5” HDD.
