Quad-Core Intel® Xeon® Processor 5400 Series TMDG 23
Thermal/Mechanical Reference Design

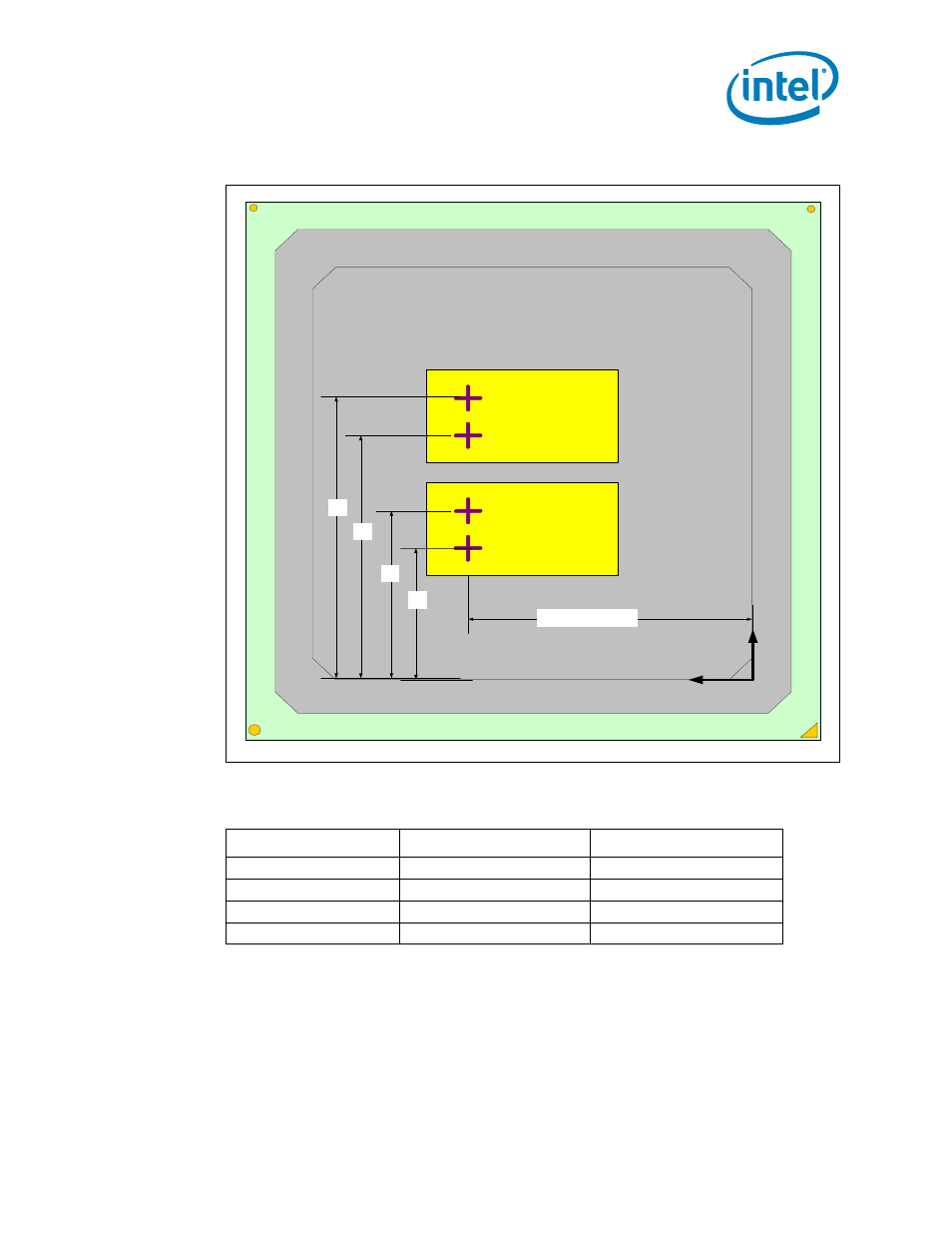

Figure 2-6. Processor Core Geometric Center Locations
X1, X2, X3, X4
Y
X
Y2
Y3
Y4
Y1
Core1
Core2
Core3
Core4
X1, X2, X3, X4
Y
X
Y2
Y3
Y4
Y1
Core1
Core2
Core3
Core4
Table 2-3. Processor Core Geometric Center Dimensions
Feature X Dimension Y Dimension
Core 1 18.15 mm 6.15 mm
Core 2 18.15 mm 10.35 mm
Core 3 18.15 mm 18.85 mm
Core 4 18.15 mm 23.05 mm
