INSTALLATIONS
AR-B1760 User’s Manual 21

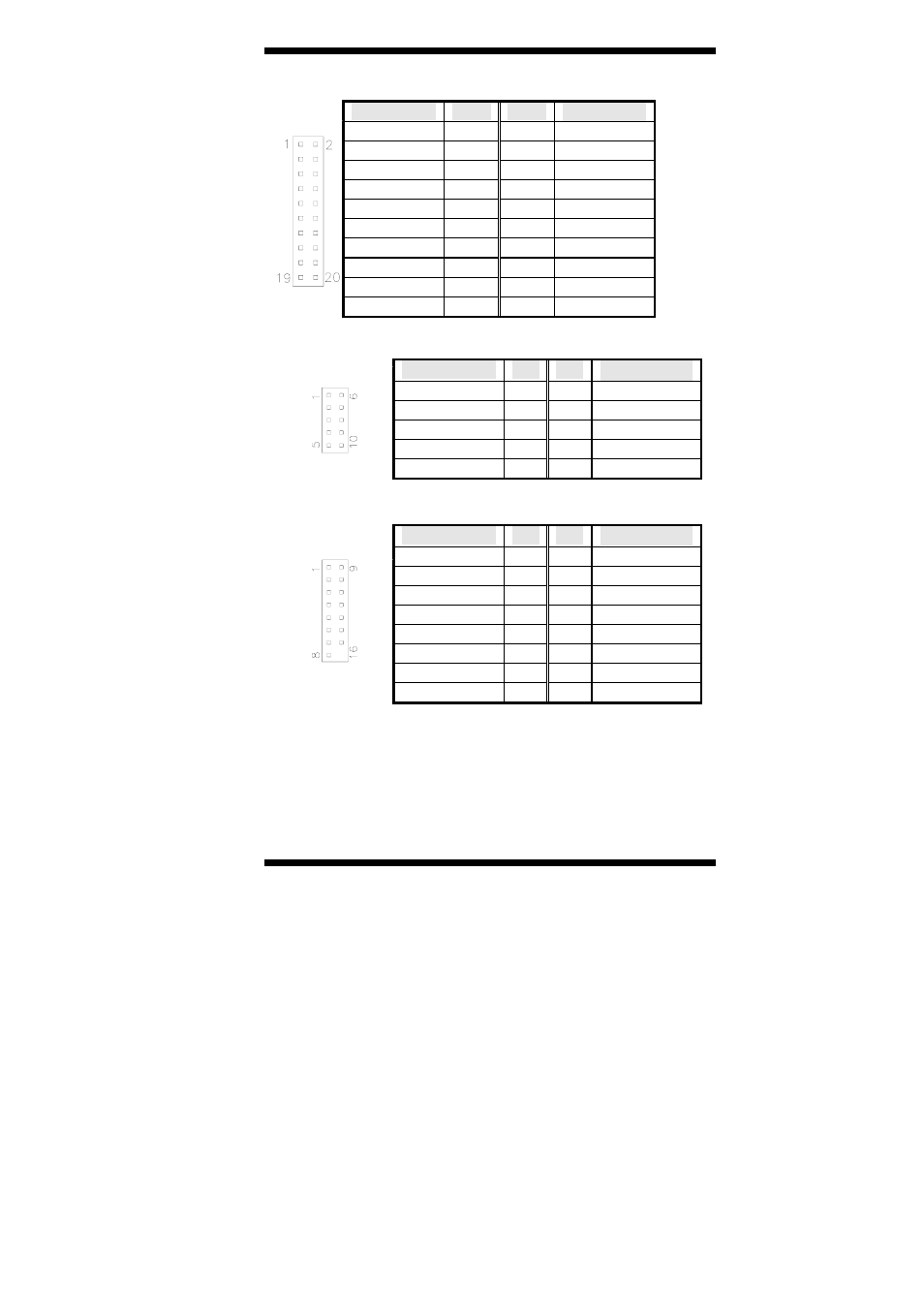

J6: TMDS Connector (option)
Signal Name Pin # Pin # Signal Name
TX1P 1 11 TX2P
TX1N 2 12 TX2N
GND 3 13 GND
GND 4 14 GND
TXCP 5 15 TXOP
TXCN 6 16 TXON
GND 7 17 NC
VCC+5V 8 18 NC
HPDET 9 19 DDCDATA
NC 10 20 DDCCLK
J7: 10/100Mbit Ethernet Connector
Signal Name Pin Pin Signal Name
5VSB 1 6 SPEED LED
RX+ 2 7 RX-
LILED 3 8 PULL LOW
ACTLED 4 9 PULL LOW
TX+ 5 10 TX-
J8: VGA CRT Connector
Signal Name Pin Pin Signal Name
R 1 9 +5V
G 2 10 GND
B 3 11 NC
NC 4 12 DDCDAT
GND 5 13 HSYNC
GND 6 14 VSYNC
GND 7 15 DDCCLK
GND 8 16 Protect pin
