Intel AR-B1760 User Manual
Page 16

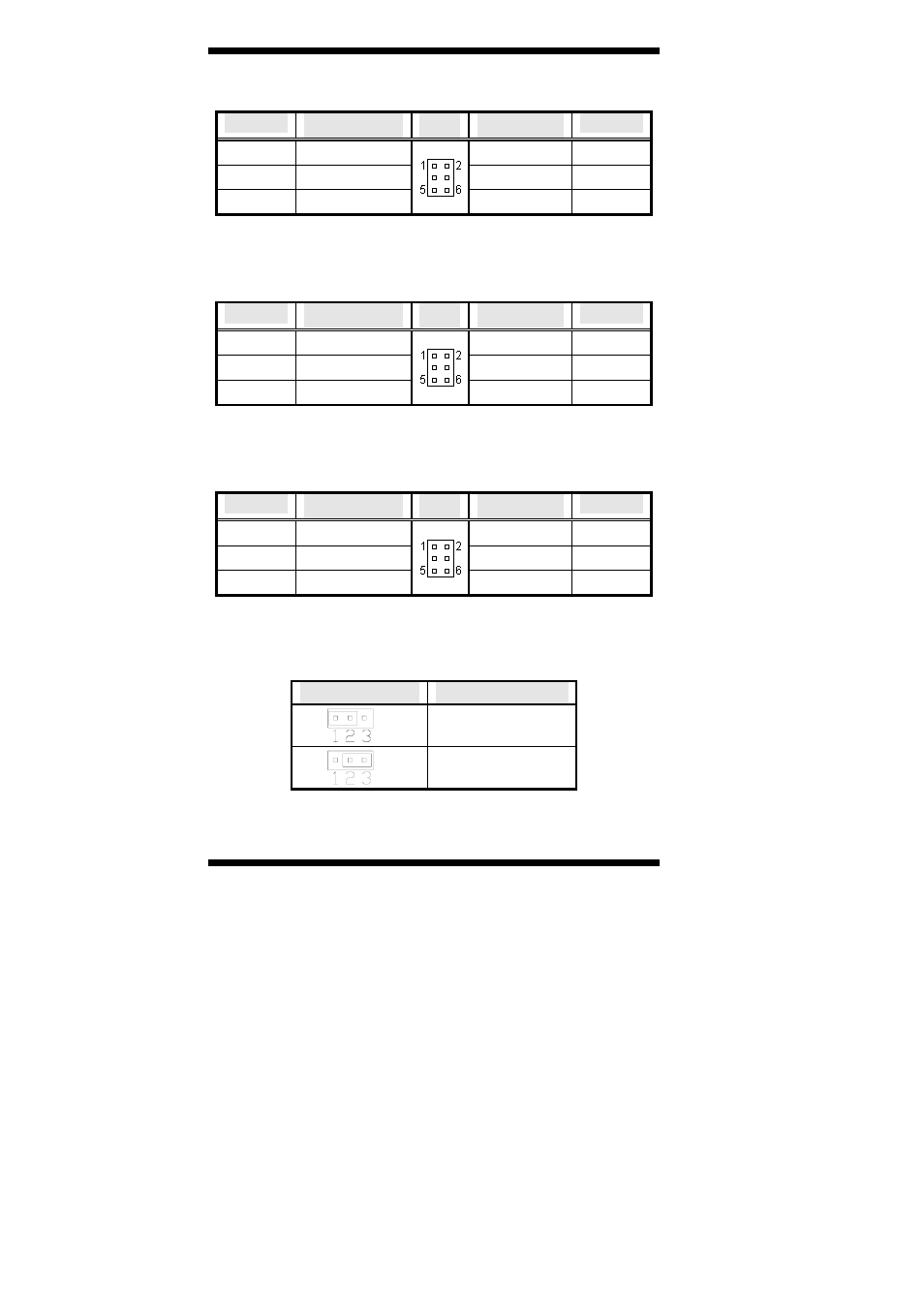

INSTALLATIONS
12
AR-B1760 User’s Manual
JP9: COM2 RS232 +5V / +12V Power Setting
Pin #
Signal Name
JP9
Signal Name
Pin #
1 RI
+12V
2
3
RI (default)
RI (default)
4
5 RI
+5V 6
COM2 Settings: Pin 1-2 short = +12V, Pin 5-6 short = +5V,
Pin 3-4 short = standard COM port
JP10: COM3 RS232 +5V / +12V Power Setting
Pin #
Signal Name
JP10
Signal Name
Pin #
1 RI
+12V
2
3
RI (default)
RI (default)
4
5 RI
+5V 6
COM3 Settings: Pin 1-2 short = +12V, Pin 5-6 short = +5V,
Pin 3-4 short = standard COM port
JP11: COM4 RS232 +5V / +12V Power Setting
Pin #
Signal Name
JP11
Signal Name
Pin #
1 RI
+12V
2
3
RI (default)
RI (default)
4
5 RI
+5V 6
COM4 Settings: Pin 1-2 short = +12V, Pin 5-6 short = +5V,
Pin 3-4 short = standard COM port
JP12: ATX / AT Power Select
JP12
ATX / AT
ATX
AT
