INSTALLATIONS
20 AR-B1760 User’s Manual

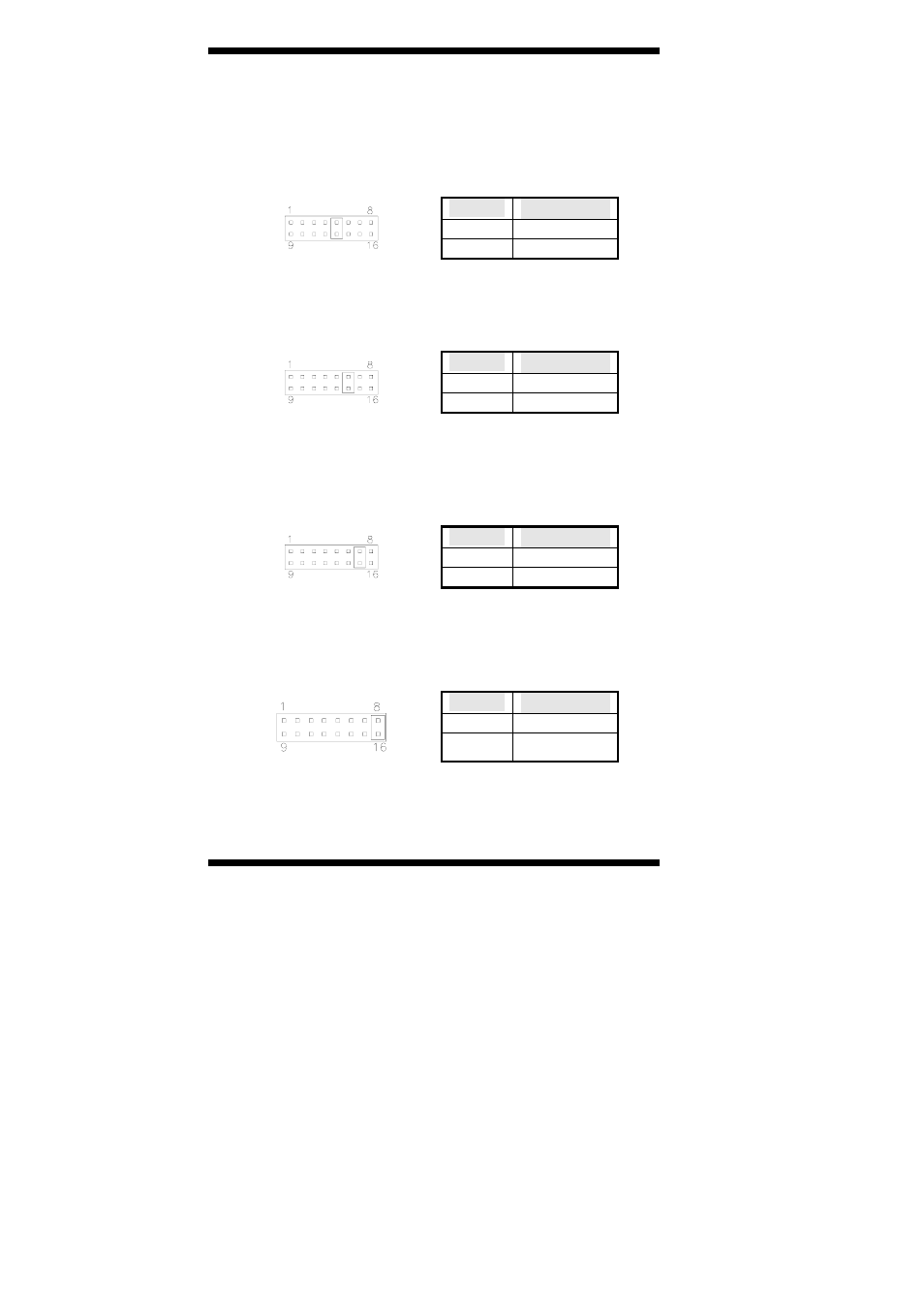

ATX Power ON Switch: Pins 5 and 13
This 2-pin connector is an “ATX Power Supply On/Off
Switch” on the system that connects to the power switch on
the case. When pressed, the power switch will force the
system to power on. When pressed again, it will force the
system to power off.
Pin # Signal Name
5 PS_ON
13 Ground
SMI/Hardware Switch: Pins 6 and 14
This connector supports the "Green Switch" on the control
panel, which, when pressed, will force the system into the
power-saving mode immediately.
Pin # Signal Name
6 SMI
14 Ground
Reset Switch: Pins 7 and 15
The reset switch allows the user to reset the system without
turning the main power switch off and then on again.
Orientation is not required when making a connection to
this header.
Pin # Signal Name
7 Reset#
15 Ground
Hard Disk Drive LED Connector: Pins 8 and 16
This connector connects to the hard drive activity LED on
control panel. This LED will flash when the HDD is being
accessed.
Pin # Signal Name
8 HDD Active
16 5V
