Cables and Connectors
Intel® Server Platform SR6850HW4 TPS
Revision
1.0
Intel order number D23151-001
38

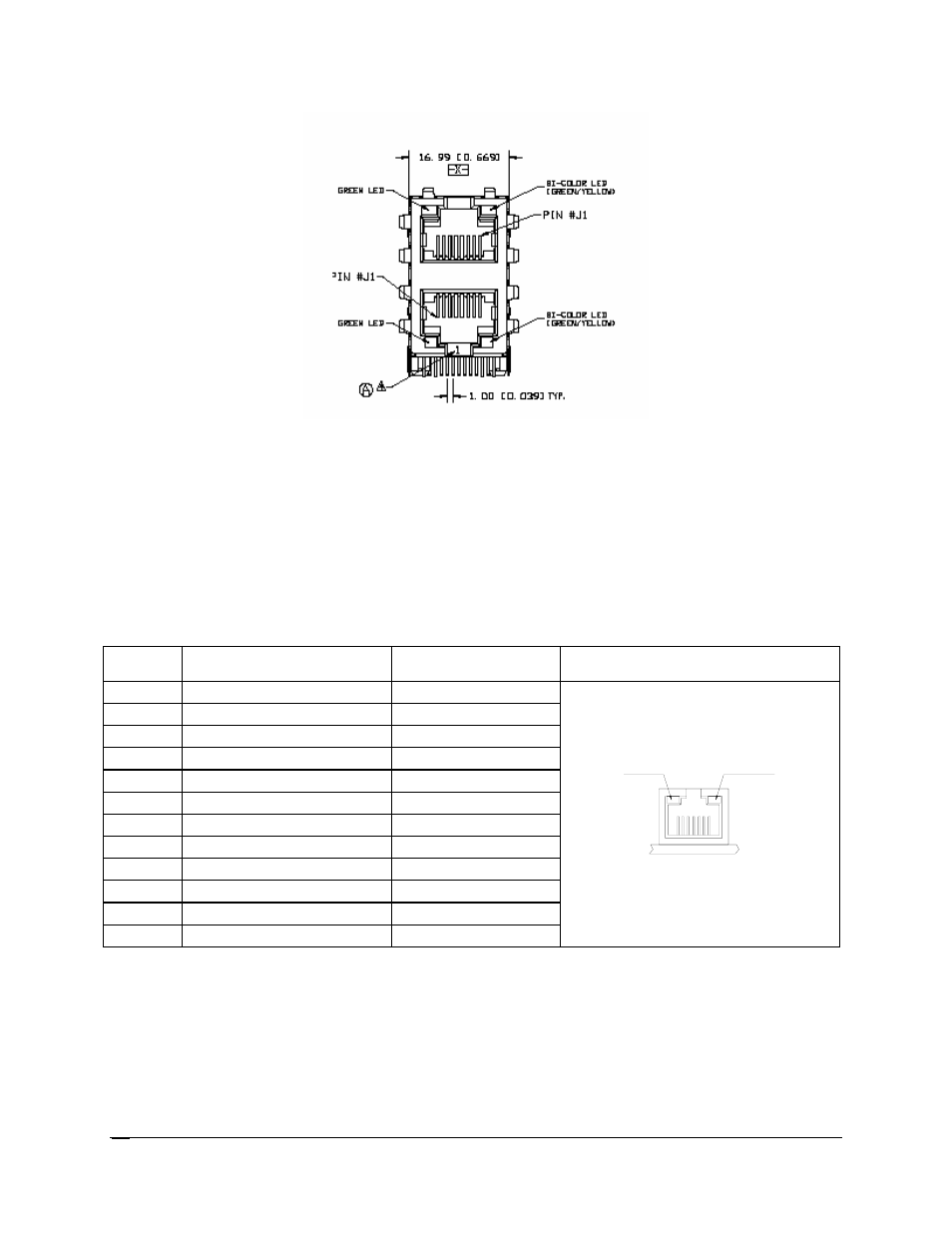

Figure 17. Dual Stacked Ethernet Connector
The Mainboard also provides an RJ45 connector that connects to the IMM Advanced for out-of-
band server management features. This out-of-band connector is also referred to as the
Generic Communication Module (GCM), or server management Ethernet controller.
Table 12. Server Management Ethernet Connector
Pin
Signal
Description
Server Management Ethernet
Connector
1 GCM_NIC_RDM
2 GCM_NIC_RDP
3
Magnetics
Tap
4
Magnetics
Tap
5
Magnetics
Tap
6
Magnetics
Tap
7 GCM_NIC_TDM
8 GCM_NIC_TDP
A1
TP_GMC_RJ45_YEL_LED_A
Yellow LED Anode
C1
TP_GMC_RJ45_YEL_LED_C
Yellow LED Cathode
A2
GMC_NIC_ACTLED_N
Green LED Anode
C2
GMC_NIC_ACTLED_R_N
Green LED Cathode
Yellow LED
Green LED
