Front Panel I/O and Control Boards Intel® Server Platform
SR6850HW4 TPS
Revision 1.0
Intel order number D23151-001
94
8.5.2 Intel
®
Local Control Panel

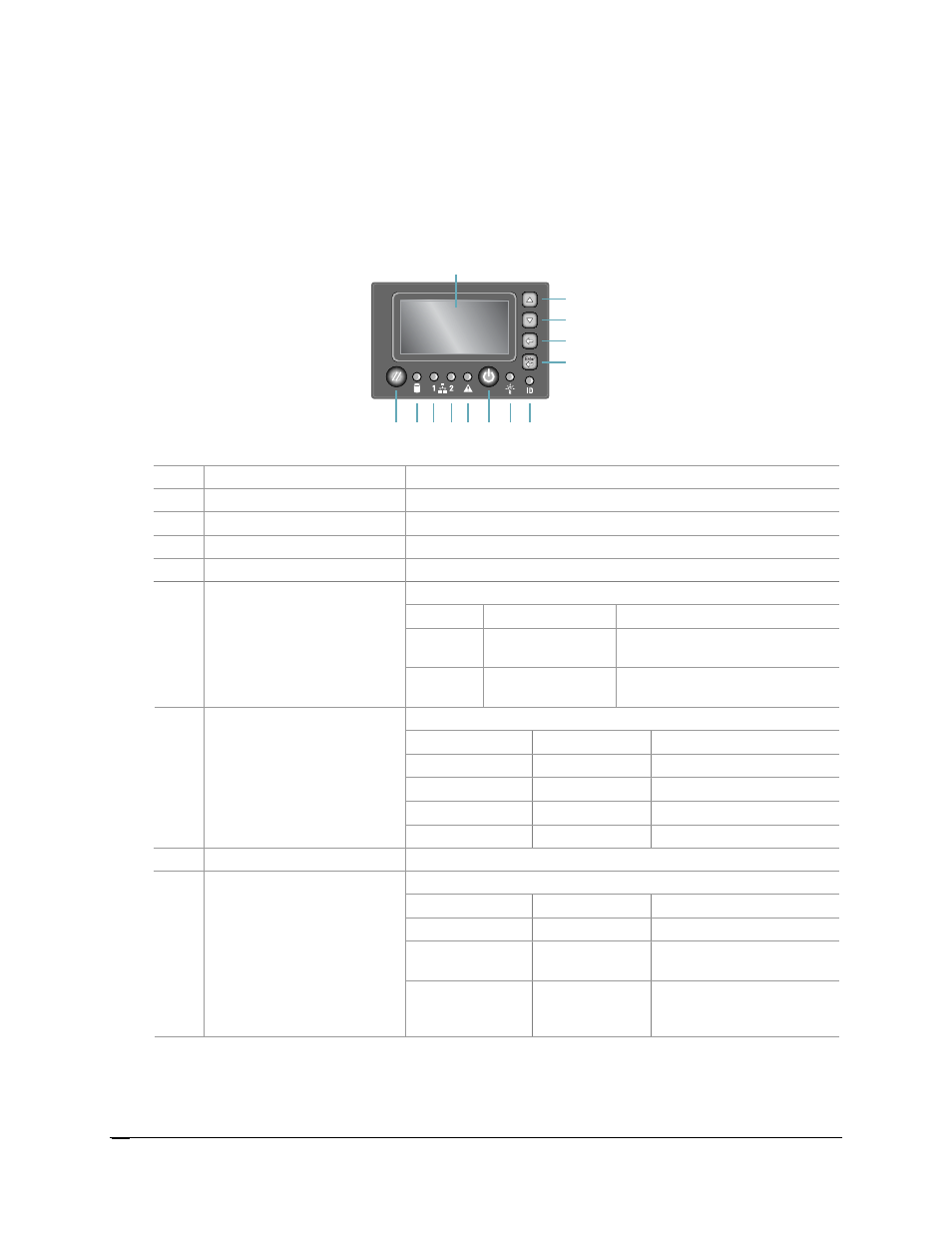

Intel ® Local Control Panel features are shown in Figure 36 and described in the table below.
Please refer to the Intel Local Control Panel Technical Product Specification for more
information.
TP01399
A
B
C
D
E
M L K J I G H F
A LCD Display of text
B Scroll up button Press to scroll up on the LCD
C Scroll down button Press to scroll down on the LCD
D Back button Press to move to the previous LCD screen
E Select button Press to enter a command or select an option on the LCD
Helps identify the system via server management or locally
Off Not active
On Active via switch Cannot be turned off by Server
Management
F System ID LED (Blue)
Blinking Active via Server
Management Cannot be turned off by switch
Indicates system power status.
Off Power off ACPI: No
On Power on ACPI: No
Off S4 / S5 ACPI: Yes
Blinking S1 ACPI: Yes
G System Power LED (green)
On S0 Yes
H System Power button Toggles system power
Indicates system status
Off Not ready AC power off, POST error
Green, on Ready System booted and ready
Green, blinking Degraded Processor or DIMM
disabled
I System Status/Fault LED
(green/amber)
Amber, on Critical Alarm Critical power supply,
blower, voltage, or
temperature failure
