Appendix - 89 -

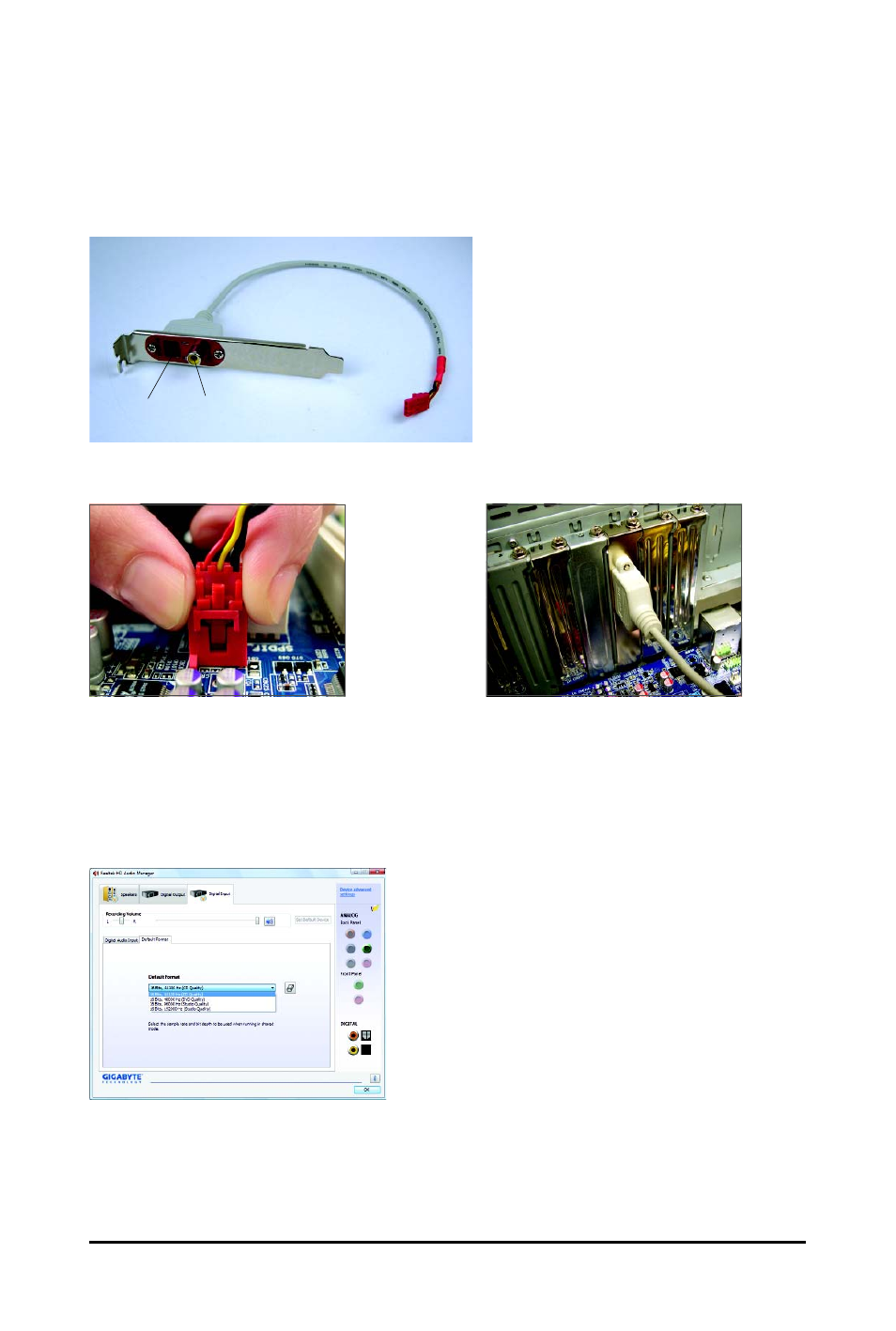

5-2-2 Configuring S/PDIF In/Out
A. S/PDIF In:
The S/PDIF in cable (optional) allows you to input digital audio signals to the computer for audio
processing.
1. Installing the S/PDIF In Cable:
2. Configuring S/PDIF In:
On the Digital Input screen, click the Default Format tab to select the default format. Click OK to complete.
Step 1:
First, attach the connector at the end of the cable
to the SPDIF_I header on your motherboard. Step 2:
Secure the metal bracket to the chassis back
panel with a screw.
(Note) The actual locations of the SPDIF In and SPDIF Out connectors may differ by model.
Coaxial
S/PDIF In Optical
S/PDIF In
S/PDIF In Cable
