2.4.10 Internal Audio Connector
These connectors allow you to receive stereo audio input from sound sources such as a CD-
ROM, TV tuner, or MPEG card. The MODEM connector allows the onboard audio to interface a
voice modem card with a matched connector. It also allows the sharing of mono_in (such as a
phone) and mono_out (such as a speaker) between the onboard audio and the voice modem
card.

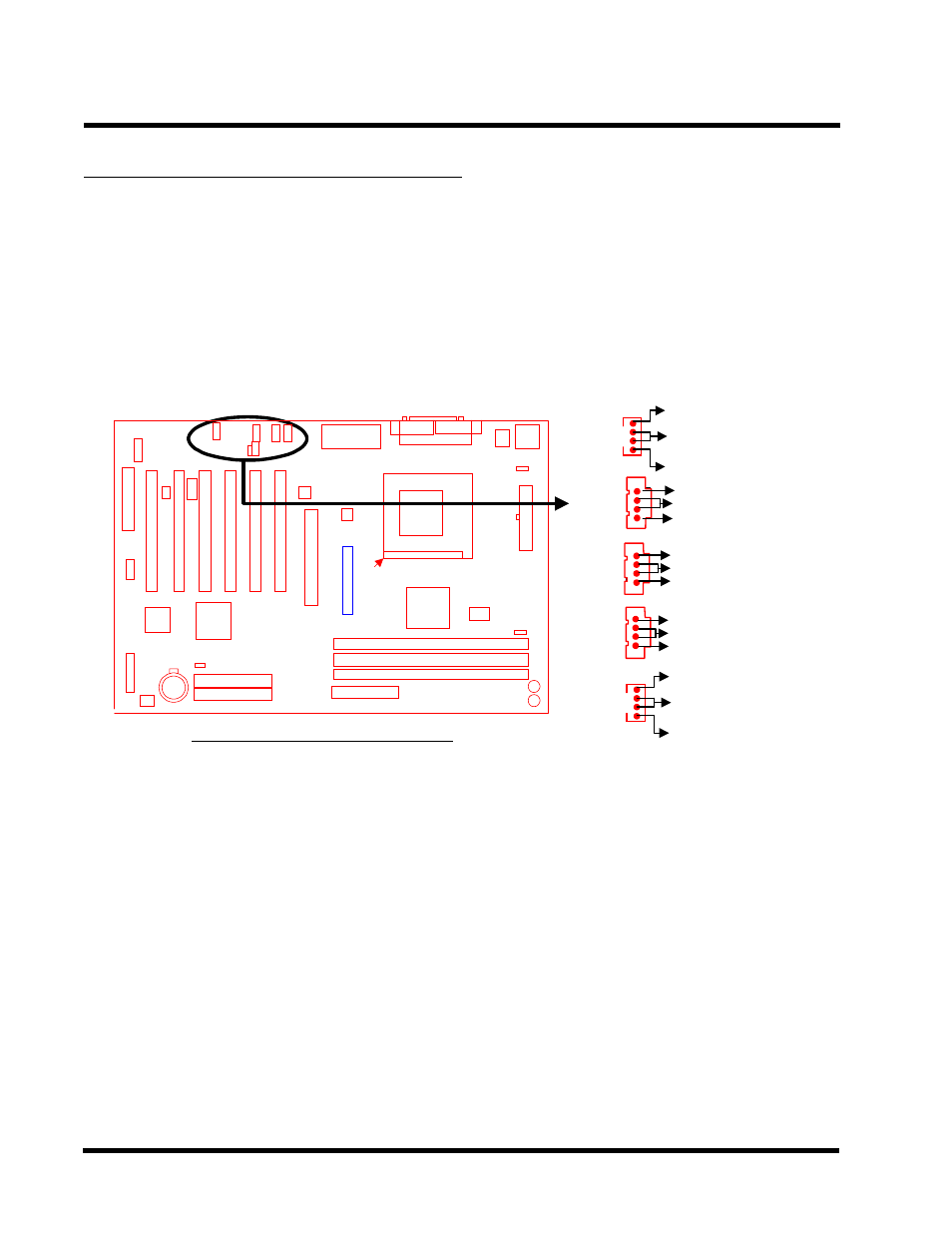

Internal Audio Connectors
Transcend
Left Audio Channel
MODEM
Modem-In
(Voice to Modem)
CD2
V I D E O
G N D
M o d e m - O u t
(Voice from Modem)
A U X
G N D
Left Audio Channel
G N D
Right Audio Channel
Left Audio Channel
Left Audio Channel
G N D
Right Audio Channel
Right Audio Channel
G N D
Right Audio Channel
CD1
22
HARDWARE INSTALLATION
