Hardware installation – Intel SOCKET 370 CELERON TS-ASP3 User Manual
Page 18
14
HARDWARE INSTALLATION
2.4.3 Fan Power Connectors
There are three fan power connectors on the motherboard: CPU-FAN, POWER-FAN, and CASE-
FAN. Each connector provides +12V power. The cables can only be attached a certain way. If
you try to put them in the wrong way, they won’t fit. These connectors support cooling fans of 500
mA (6W) or less.
C P U - F A N
P O W E R - F A N
C A S E - F A N

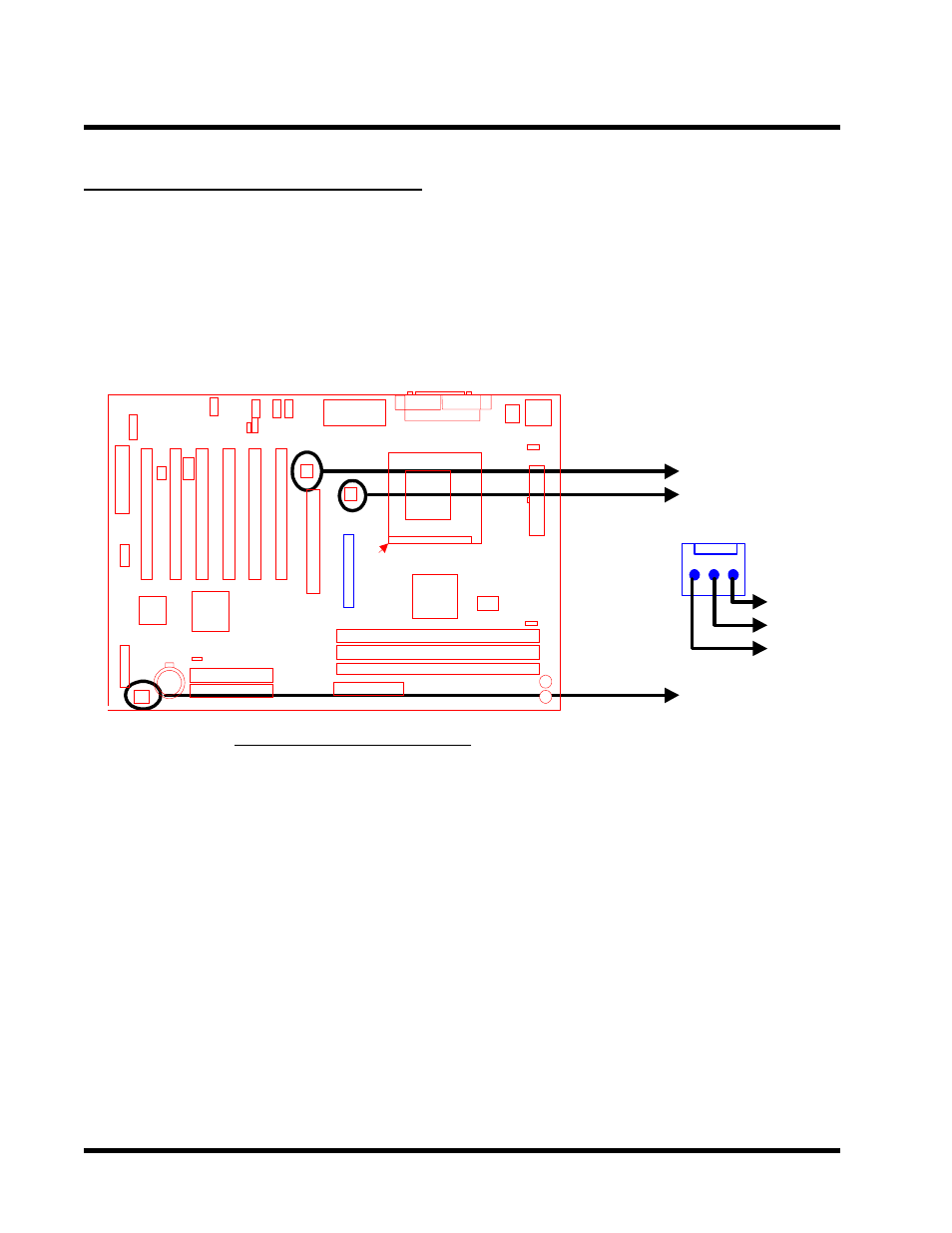

Fan Power Connectors
G N D
F A N
Rotation
+ 1 2 V
Transcend
