SERVICING

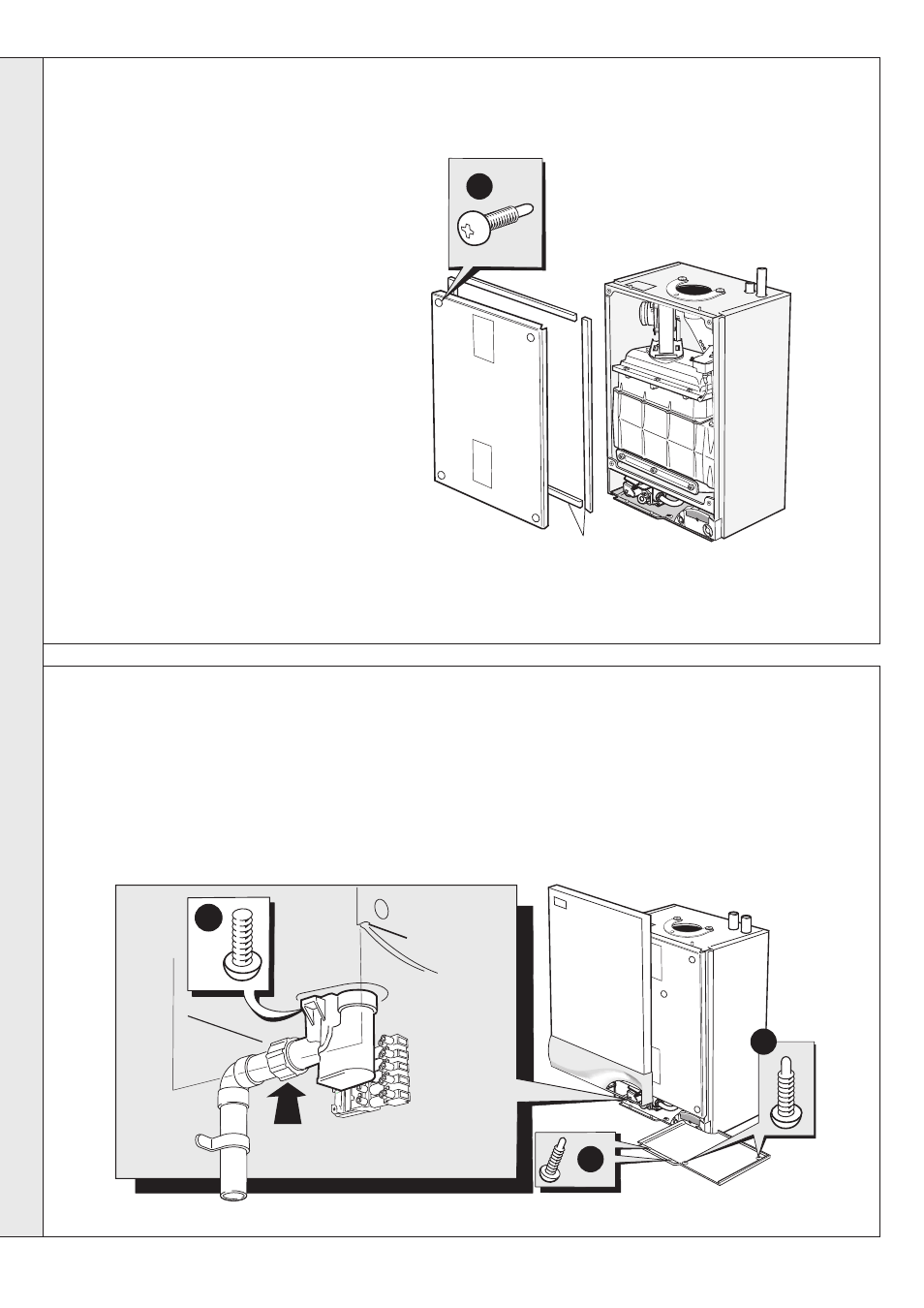

67 BOILER SEALING PANEL SEAL REPLACEMENT
1. Refer Frame 52.
2. Remove the front panel. Refer to Frame 45.
3. Remove the boiler sealing panel. Refer to
Frame 46.
4. Remove the old seal from the casing and
thoroughly clean the casing surfaces.
5. Fit the new adhesive seals - note that they
are supplied to the correct length for the
relevant sides.
6. Reassemble in reverse order.
Note.
Ensure that the boiler sealing panel is
correctly seated, compressing the seal to
make an airtight joint.
7. Check operation of boiler. Refer to
Frame 52.
68 CONDENSATE 'S' TRAP REPLACEMENT
1. Refer to Frame 52.
2. Remove the boiler front panel. Refer to Frame 45.
3. Remove the boiler bottom panel. Refer to Frame 46.
4. Undo the plastic union nut on the condensate 'S' trap
outlet.
nm 2902
3
2
5
4
5. Remove the 2 screws.
6. Pull the trap down and forward to remove.
7. Reassemble in reverse order, ensuring that the new
trap is full of water.
8. Check operation of the boiler. Refer to Frame 52.
