Page 51
5 1
BIOS Setup

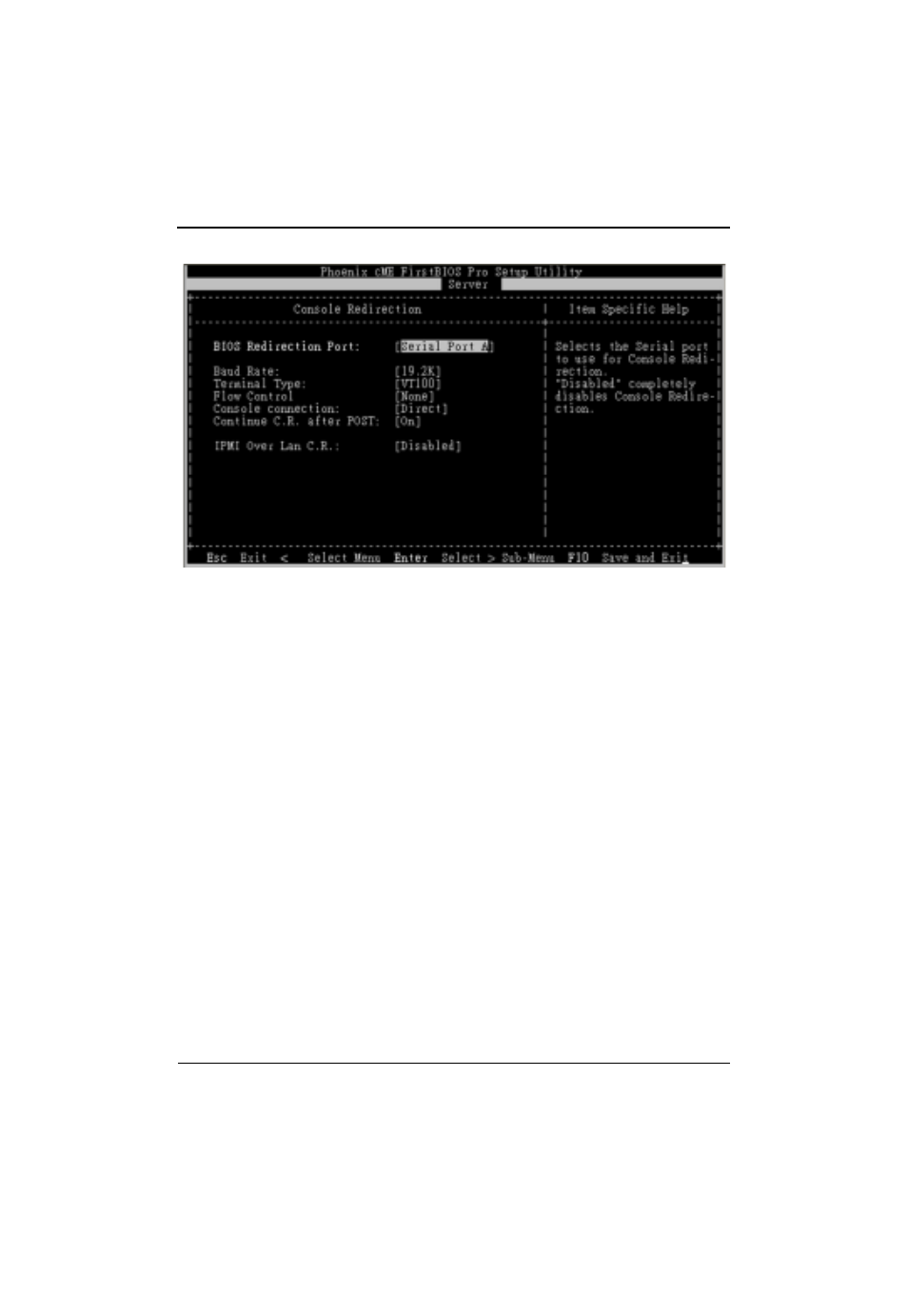

Figure 4-2: Console Redirection
Console Redirection
BIOS Redirection Port
If this option is set to enabled, it will use a port on the motherboard.
On-board COMA
Use COMA as he COM port address.
Disabled
Disable this function. (Default value)
Note: Tower has COMA and COMB.
Baud Rate
This option allows user to set the specified baud rate.
Options
300, 1200, 2400, 9600, 19.2K, 38.4K, 57.6K, 115.2K.
Terminal Type
This option allows user to select the specified terminal type. This is defined by IEEE.
Options
VT100, VT100 8bit, PC-ANSI 7bit, VT100+, VT-UTF8
