Hardware monitor – Intel GA-4MXSV User Manual
Page 45
4 5
BIOS Setup
Hardware Monitor

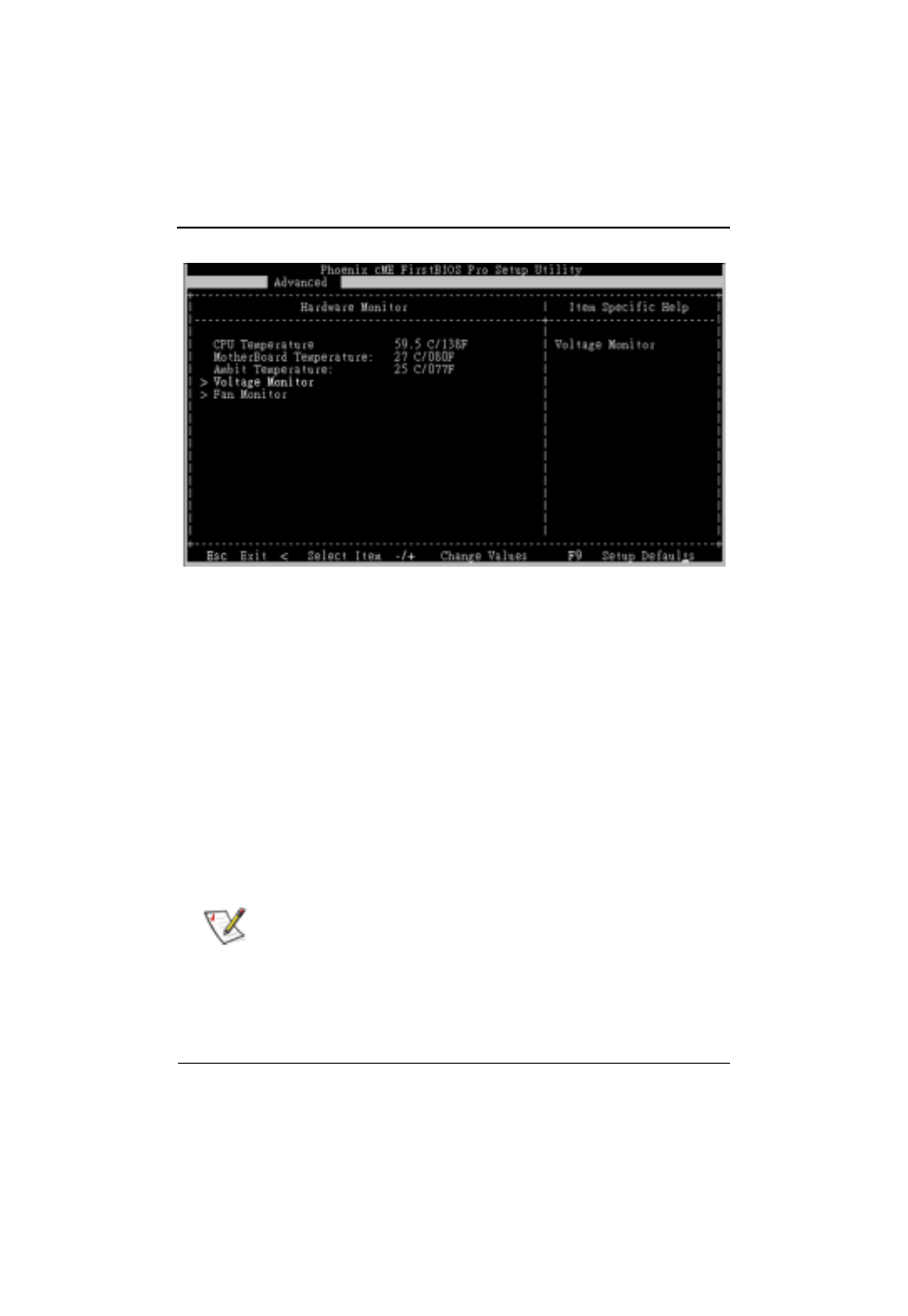

Figure 2-5: Hardware Monitor
CPU / Motherboard/ Ambit Temperature
Display the current CPU temperature, Motherboard, and Ambient temperature.
Voltage Monitor: 3V Dual, VCC3, VCC, 12V2, 12V1, VBAT, 5VSB
Detect system's voltage status automatically.
FAN Monitor: System 1/2/3/4/5/6/7/8 (RPM)
Display the current System FAN 1/2/3/3/4/5/6/7/8 speed.
This Menu will disappear when BMC module is populated.
