First Time Setup
—Continued

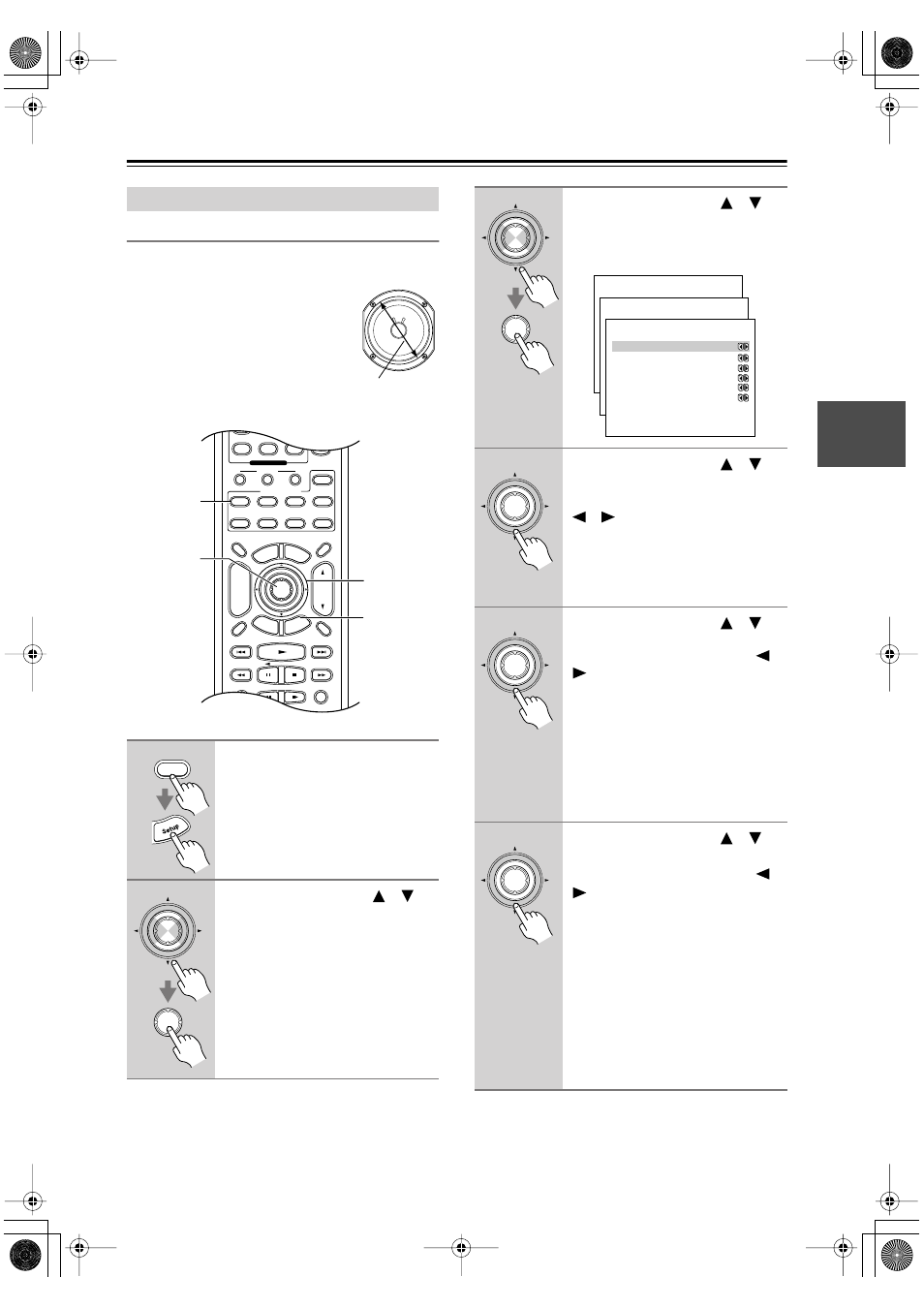

Speaker Configuration
Here you can specify which speakers are connected and
their individual sizes.
For speakers with a cone diameter
over 6-1/2 inches (16 cm), specify
large,
and for those with a diameter
below this, specify
small.
Speaker Setup
1
Press the [Receiver] button fol-
lowed by the [Setup] button.
The main menu appears onscreen.
2
Use the Up and Down [
]/[
]
buttons to select “2. Speaker
Setup,” and then press [Enter].
The Speaker Setup menu appears.
Cone diameter
Display
Muting
Random
Rec
Last Memory
Angle
Subtitle
Audio
Exit
Gu
id
e
Prev
CH
TV VOL
--/---
Dimmer
Tape
TV
Input
Sleep
Enter
Surround
Stereo
All ST
To
p M
enu
Men
u
Set
up
Retu
rn
VOL
CH
Disc
SAT
T V
VCR
Cable
DVD
Receiver
C D
+10
0
Clear
7
8
9
Macro
1
2
3
MD/CDR
+
-
Input Selector
C D
Tape
Tuner
Remote Mode
Zone 2
1, 12
2–11
2, 3
1
Receiver
Enter
Enter
3
Use the Up and Down [
]/[
]
buttons to select “1. Speaker
Config,” and then press [Enter].
The Speaker Config menu appears.
4
Use the Up and Down [
]/[
]
buttons to select “a. Subwoofer,”
and then use the Left and Right
[
]/[
] buttons to select:
Yes:
Select if a subwoofer is con-
nected.
No:
Select if no subwoofer is con-
nected.
5
Use the Up and Down [
]/[
]
buttons to select “b. Front,” and
then use the Left and Right [
]/
[
] buttons to select:
Small:
Select if the front speakers are
small.
Large:
Select if the front speakers are
large.
Note:
• If the Subwoofer setting in step 4 is
set to No, this setting is fixed at
Large.
6
Use the Up and Down [
]/[
]
buttons to select “c. Center,” and
then use the Left and Right [
]/
[
] buttons to select:
Small:
Select if the center speaker is
small.
Large:
Select if the center speaker is
large.
None:
Select if no center speaker is
connected.
Note:
• If the Front setting in step 5 is set to
Small, the Large option cannot be
selected.
Enter
Enter
Menu
------------------------
1.Initial Setup
2.Speaker Setup
Advanced Setup
3.Surround Setup
4.Audio Adjust
5.Listening Mode Preset
6.Preference
Basic Setup
2.Speaker Setup
------------------------
2.Speaker Distance
3.Level Calibration
4.Equalizer Settings
1.Speaker Config
2-1.Speaker Config
------------------------
b.Front :Large
c.Center :Small
d.Surround :Small
e.Crossover :100Hz
f.Double Bass :Off
a.Subwoofer :Yes
