Integra DTR-4.5 - Manual (Page 28)

28
Connecting the AV receiver —Continued

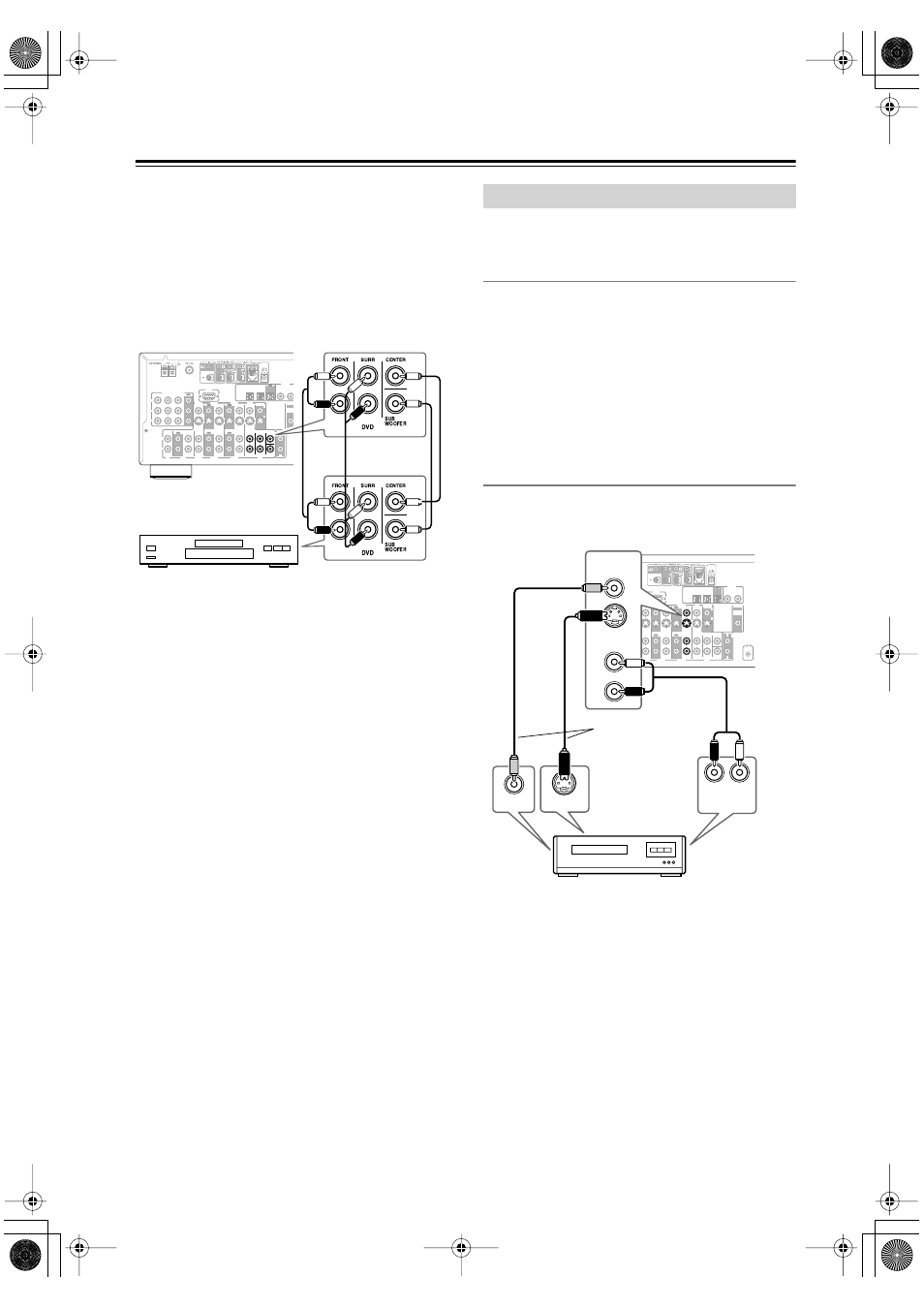

■ Using a Multichannel Connection
If your DVD player supports multichannel audio formats
such as DVD-Audio, and it has a 5.1-channel analog
audio output, you can enjoy DVD-Audio playback.
Use a multichannel analog audio cable to connect the AV
receiver’s DVD IN FRONT L/R, CENTER, SURR L/R,
and SUBWOOFER jacks to the 5.1-channel analog
audio output on your DVD player, as shown. Alterna-
tively, use several analog audio cables.
This section shows how to connect a VCR for playback
so that you can watch videos via the AV receiver.
Video Connections
• Use an S-Video cable to connect the AV receiver’s
S VIDEO 1 IN jack to a S-Video output on your VCR,
as shown.
OR
• Use a composite video cable to connect the AV
receiver’s V VIDEO 1 IN jack to a composite video
output on your VCR, as shown.
An S-Video connection provides better picture quality
than a composite video connection.
Audio Connections
• Use an analog audio cable to connect the AV receiver’s
VIDEO 1 IN L/R jacks to an analog audio output on
your VCR, as shown.
R
L
IN 1 IN 2 IN 3
FRONT SURR CENTER
DVD
CD VIDEO 3 VIDEO 2 VIDEO 1
VIDEO 3 VIDEO 2 PRE OUT VIDEO 1
IN IN IN OUT OUT IN IN OUT
OUT
TAPE
SUB WOOFER
SUB WOOFER
MONITOR OUT
DVD
COMPONENT VIDEO
P B
Y
P R
IN OUT IN IN IN OUT
REMOTE CONTROL
ZONE 2 OUT
V
S
IN 1 IN 2 OPTICAL
IN1 IN2 OUT COAXIAL DIGITAL
RS 232
R
L
DVD player
Connecting a VCR for Playback
R
L
IN 1 IN 2 IN 3
FRONT SURR CENTER
DVD
CD VIDEO 3 VIDEO 2 VIDEO 1
VIDEO 3 VIDEO 2 PRE OUT VIDEO 1
IN IN IN OUT OUT IN IN OUT
OUT
TAPE SUB WOOFER
SUB WOOFER
MONITOR OUT
DVD
COMPONENT VIDEO
P B
Y
P R
IN OUT IN IN IN OUT
REMOTE CONTROL
ZONE 2 OUT
V
S
IN 1 IN 2 OPTICAL
IN1 IN2 OUT COAXIAL DIGITAL
RS 232
R
L
VIDEO 1
L R
S VIDEO OUT VIDEO OUT
AUDIO
OUTPUT
IN
IN
L
R
VCR
Connect one
or the other
