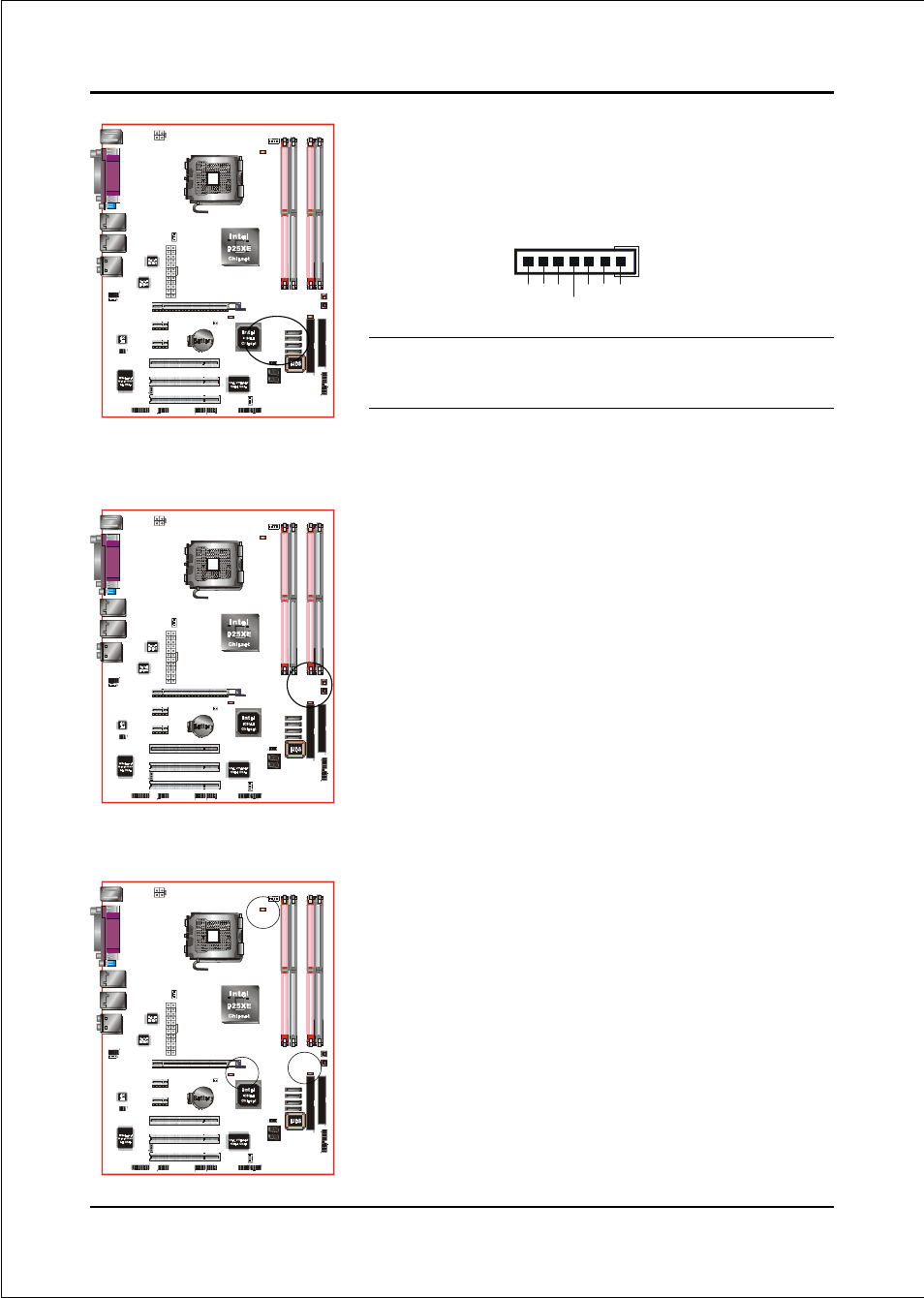

Installation

Page 3-12

LED4

LED2

LED3

LEDION:
Onboard LED indicators to show the power status
of CPU, Chipset and DRAM. You know immediately
where to look if the system fails to start.
LED2: CPU LED
LED3: CHIP LED
LED4: DIMM LED

RESET

PW-ON

PW-ON button and RESET button:
These buttons located onboard to turn on/off the
system easily, especially while debugging or testing
the system.

SATA1 / SATA2 / SATA3 / SATA4: S-ATA Connectors

These connectors enable you to connect Serial ATA
devices that conform to the Serial ATA specification.

SATA4

SATA1

1

GND

A-

B-

B+

GND

A+

GND

~

Use the bundled SP-ATA Kit for older IDE hard
drives to interface to S-ATA.
