Installation
Page 3-10

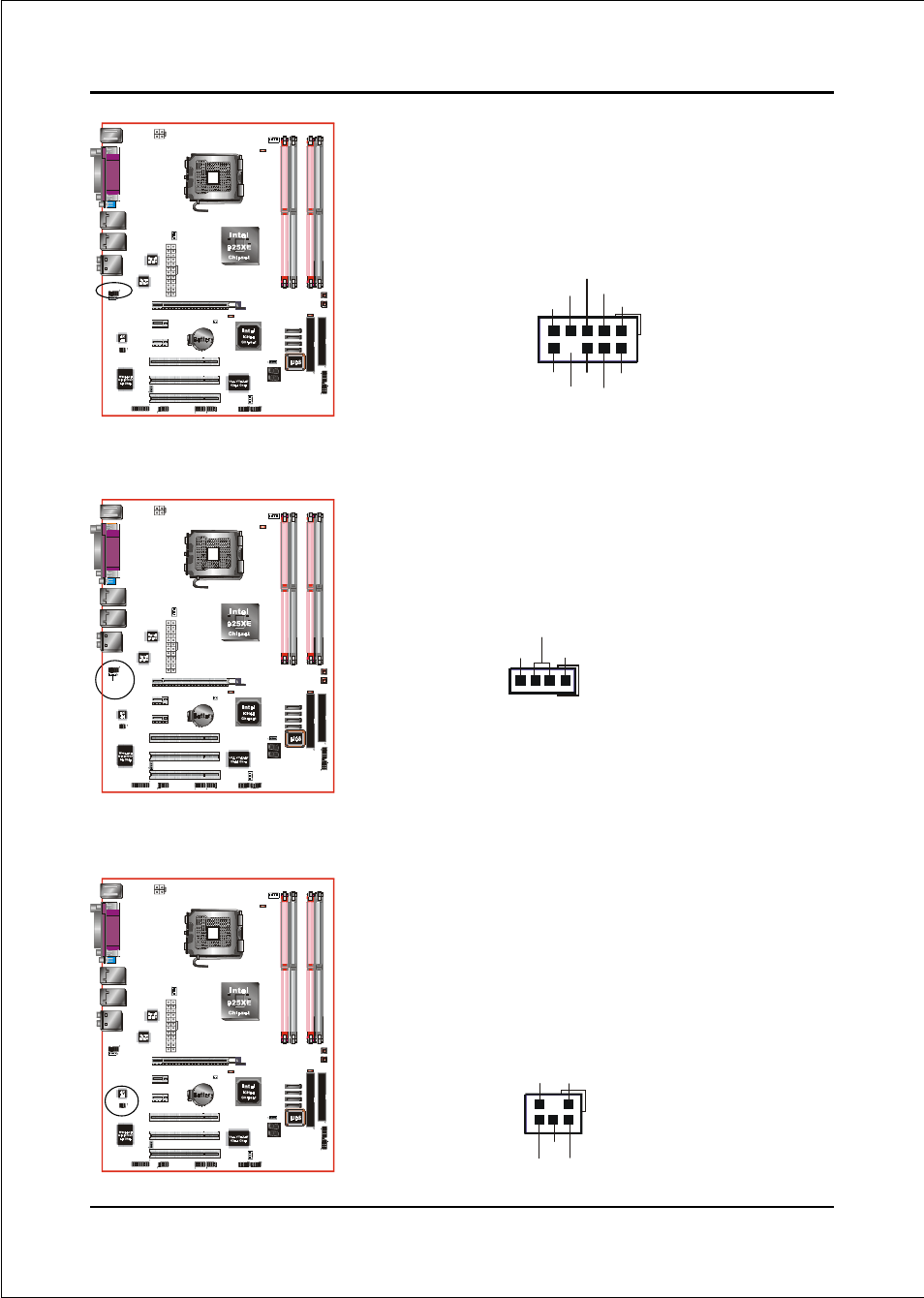

SPDIF: Sony/Philips Digital InterFace connector
This connector links digital audio between the
mainboard and your audio devices, such as CD
player, sampler or DAT recorder. It allows the
digital transmission of audio data in S/PDIF format.
1 5
2 6
VCC
NC
GND
SPDIF_IN
SPDIF_OUT
CD-IN
CD-IN: CD Audio_IN Connector
The CD-IN connector is used to receive audio form a
CD-ROM drive, TV tuner or MPEG card.
CFPA: Front Panel Audio Connector
This audio connector connects to the audio jacks
located on the front panel. Refer to your case
manual to match the pin-out names.
CD_IN_Left
1
CD_IN_Right
CD_Reference
10 2
9 1
MIC_In
Front Line-out-R
GND
NC NC
Key +5V
NC NC
Front Line-out-L
