Hardware Setup
Connected to JSP1

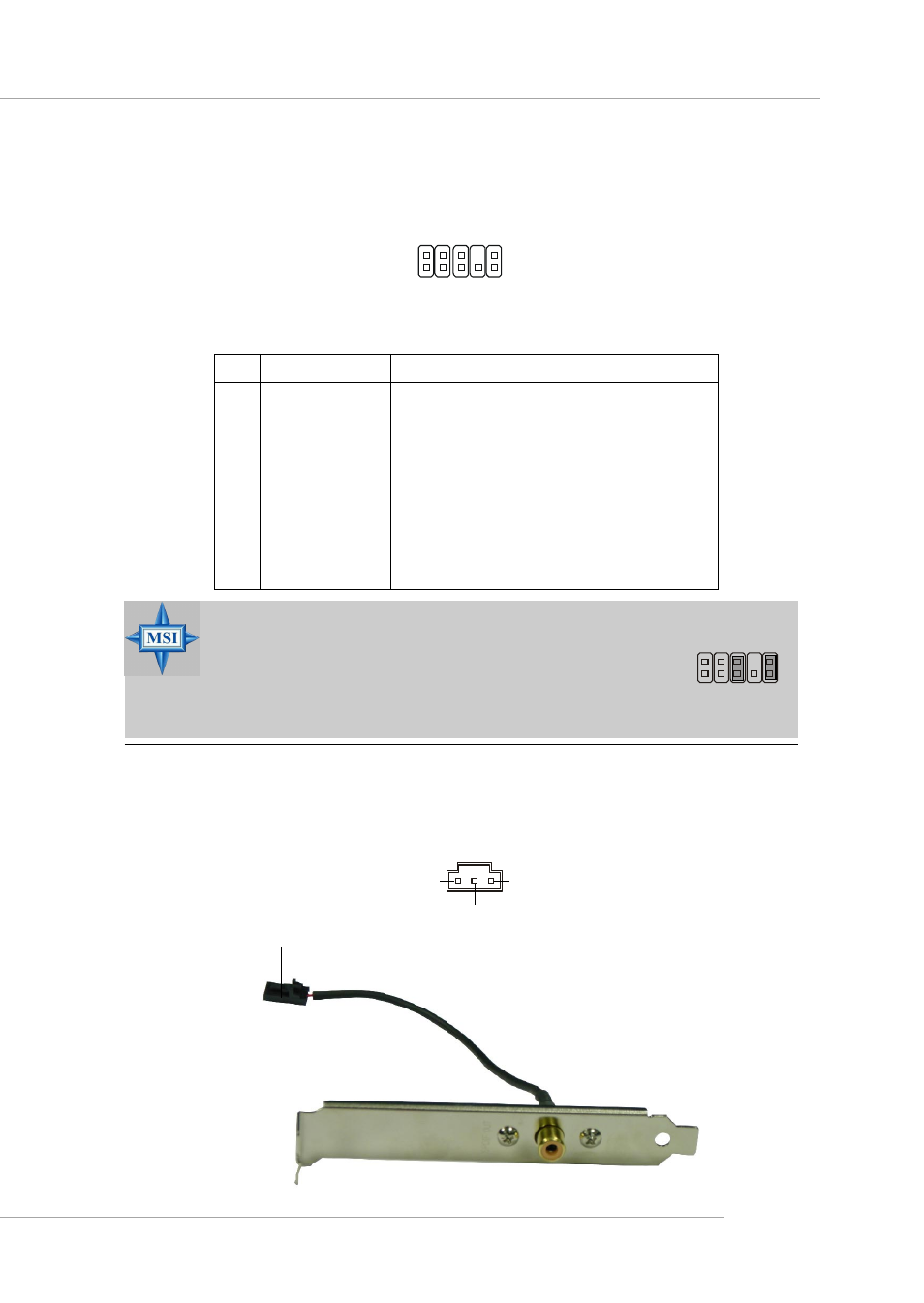

SPDIF Bracket (optional)
Front Panel Audio Connector: JAUD1
The JAUD1 front panel audio connector allows you to connect to the front panel
audio and is compliant with Intel
®
Front Panel I/O Connectivity Design Guide.
JAUD1
1
2
10
9
MSI Reminds You...
If you don’t want to connect to the front audio header, pins
5 & 6, 9 & 10 have to be jumpered in order to have signal
output directed to the rear audio ports. Otherwise, the
Line-Out connector on the back panel will not function.
5
6
10
9
JSP1
VCC
SPDIF
GND
SPDIF-Out Connector: JSP1
This connector is used to connect SPDIF (Sony & Philips Digital Interconnect Format)
interface for digital audio transmission.
PIN
SIGNAL
DESCRIPTION
1
AUD_MIC
Front panel microphone input signal
2
AUD_GND
Ground used by analog audio circuits
3
AUD_MIC_BIAS
Microphone power
4
AUD_VCC
Filtered +5V used by analog audio circuits
5
AUD_FPOUT_R
Right channel audio signal to front panel
6
AUD_RET_R
Right channel audio signal return from front panel
7
HP_ON
Reserved for future use to control headphone amplifier
8
KEY
No pin
9
AUD_FPOUT_L
Left channel audio signal to front panel
10
AUD_RET_L
Left channel audio signal return from front panel
JAUD1 Pin Definition
