2 - 1 0
MS-6734 M-ATX Mainboard

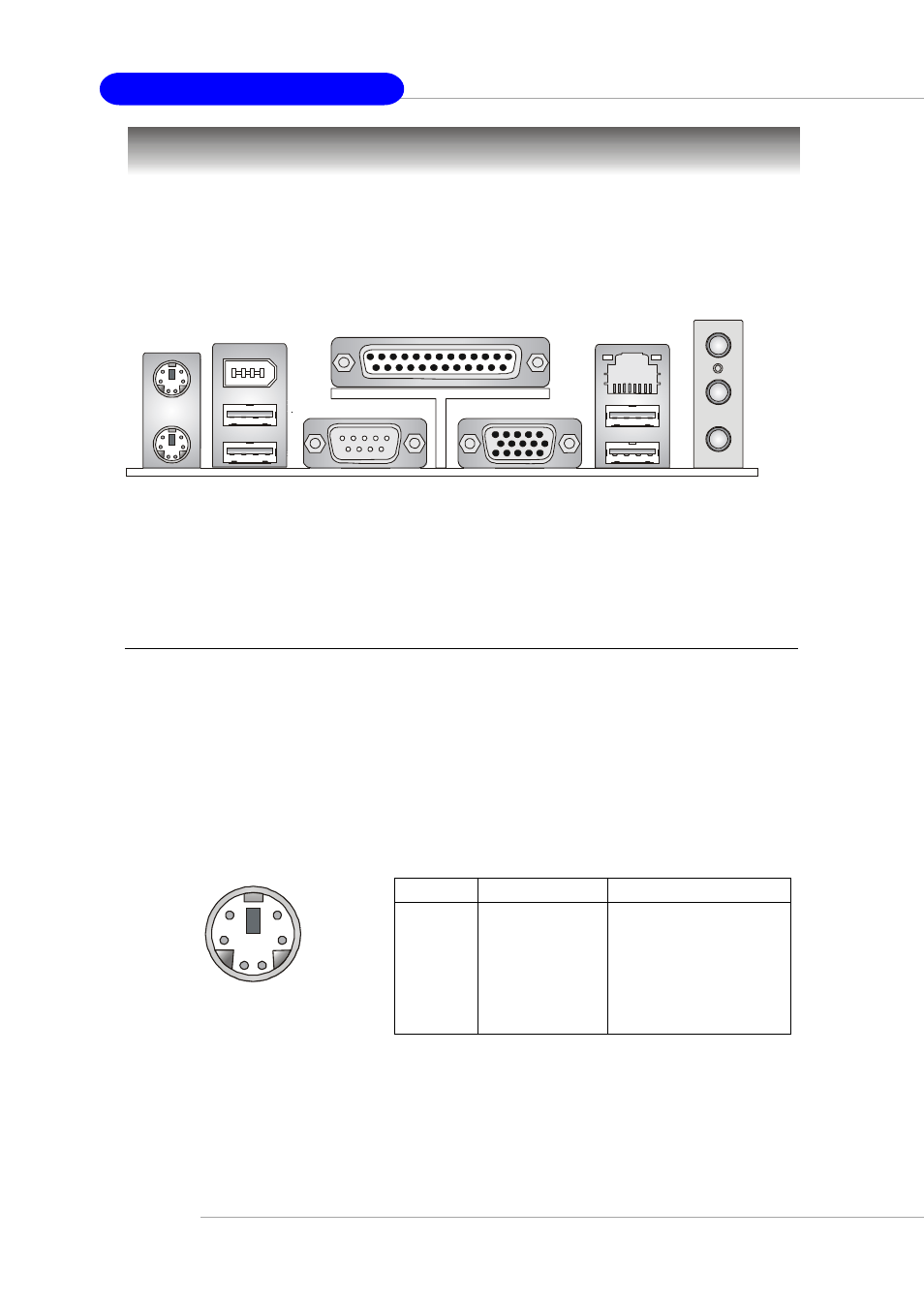

The back panel provides the following connectors:
Back Panel
Mouse Connector
The mainboard provides a standard PS/2 ® mouse mini DIN connector for attaching a
PS/2 ® mouse. You can plug a PS/2 ® mouse directly into this connector. The connec-
tor location and pin assignments are as follows:
PIN SIGNAL DESCRIPTION
1 Mouse DATA Mouse DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC No connection
Pin Definition
PS/2 Mouse (6-pin Female)
2 1
3 4
5 6
M o u s e
Keyboard USB
Parallel
COM VGA
L-out
L-in
MIC
LAN
(Optional)
USB
IEEE1394
(Optional)
