Page 30
2 - 2 0
MS-6734 M-ATX Mainboard

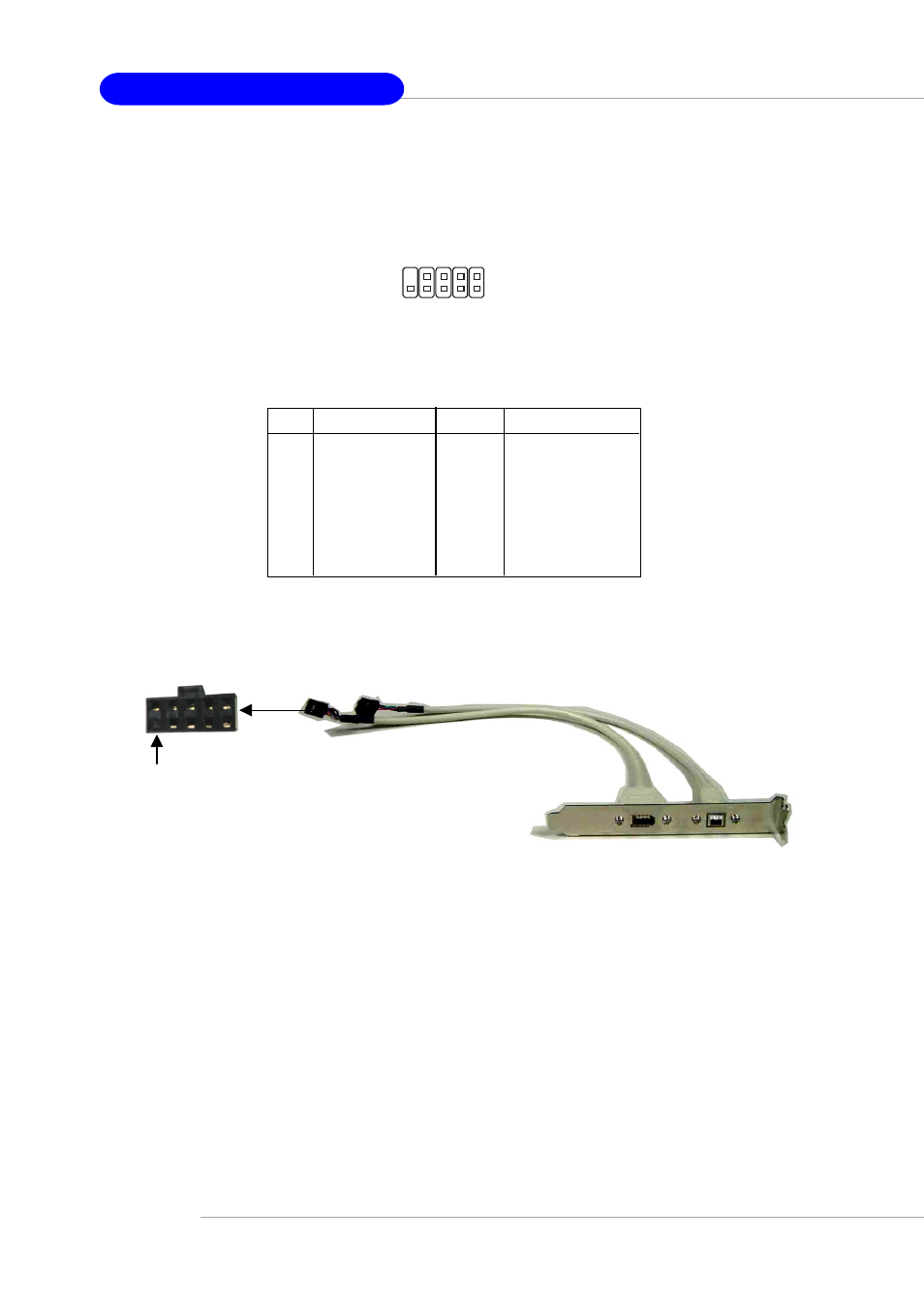

IEEE 1394 Connectors: J1394_1 & J1394_2 (Optional)
The mainboard provides one or two optional 1394 pin headers J1394_1 and J1394_2
that allow you to connect optional IEEE 1394 ports.
Pin Definition
PIN
SIGNAL
PIN
SIGNAL
1
TPA+
2
TPA-
3
Ground
4
Ground
5
TPB+
6
TPB-
7
Cable power
8
Cable power
9
Key (no pin)
10
Ground
J1394_1 / J1394_2 (Optional)
1
9
2
10
IEEE1394 Bracket (Optional)
Foolproof Design
