2 - 1 8
MS-6734 M-ATX Mainboard

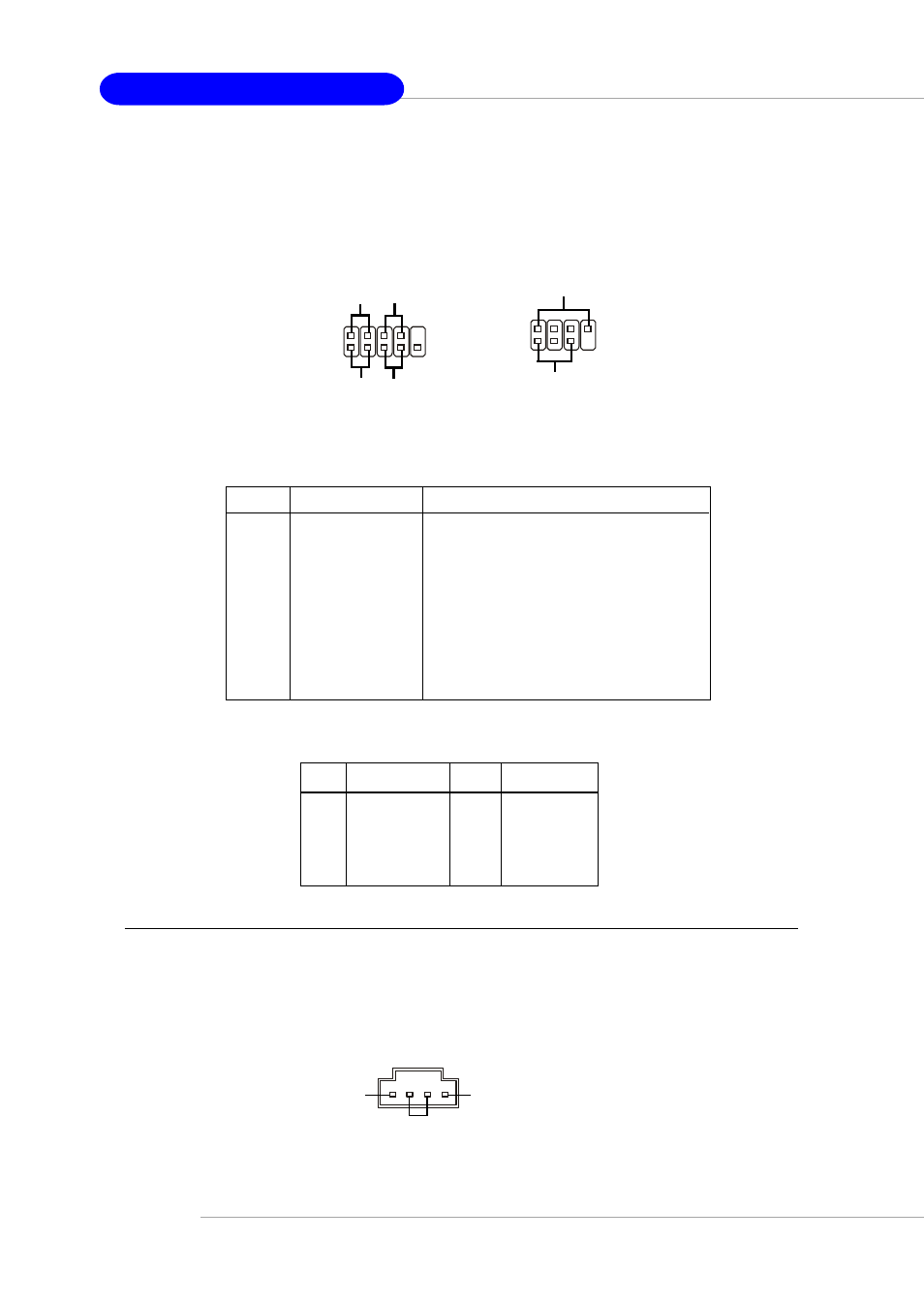

Front Panel Connectors: JFP1 & JFP2
The mainboard provides two front panel connectors for electrical connection to the
front panel switches and LEDs. JFP1 is compliant with Intel
®
Front Panel I/O Connec-
tivity Design Guide.
PIN
SIGNAL
DESCRIPTION
1
HD_LED_P
Hard disk LED pull-up
2
FP PWR/SLP
MSG LED pull-up
3
HD_LED_N
Hard disk active LED
4
FP PWR/SLP
MSG LED pull-up
5
RST_SW_N
Reset Switch low reference pull-down to GND
6
PWR_SW_P
Power Switch high reference pull-up
7
RST_SW_P
Reset Switch high reference pull-up
8
PWR_SW_N
Power Switch low reference pull-down to GND
9
RSVD_DNU
Reserved. Do not use.
JFP1 Pin Definition
PIN
SIGNAL
PIN
SIGNAL
1
GND
2
SPK-
3
SLED
4
BUZ+
5
PLED
6
BUZ-
7
NC
8
SPK+
JFP2 Pin Definition
JFP1
1
2
9
10
HDD
LED
Reset
Switch
Power
LED
Power
Switch
JFP2
Power
LED
Speaker
1
2
7
8
CD-In Connector: JCD1
The connector is for CD-ROM audio connector.
JCD1
GND
R
L
