PCM-9586 User’s Manual

84

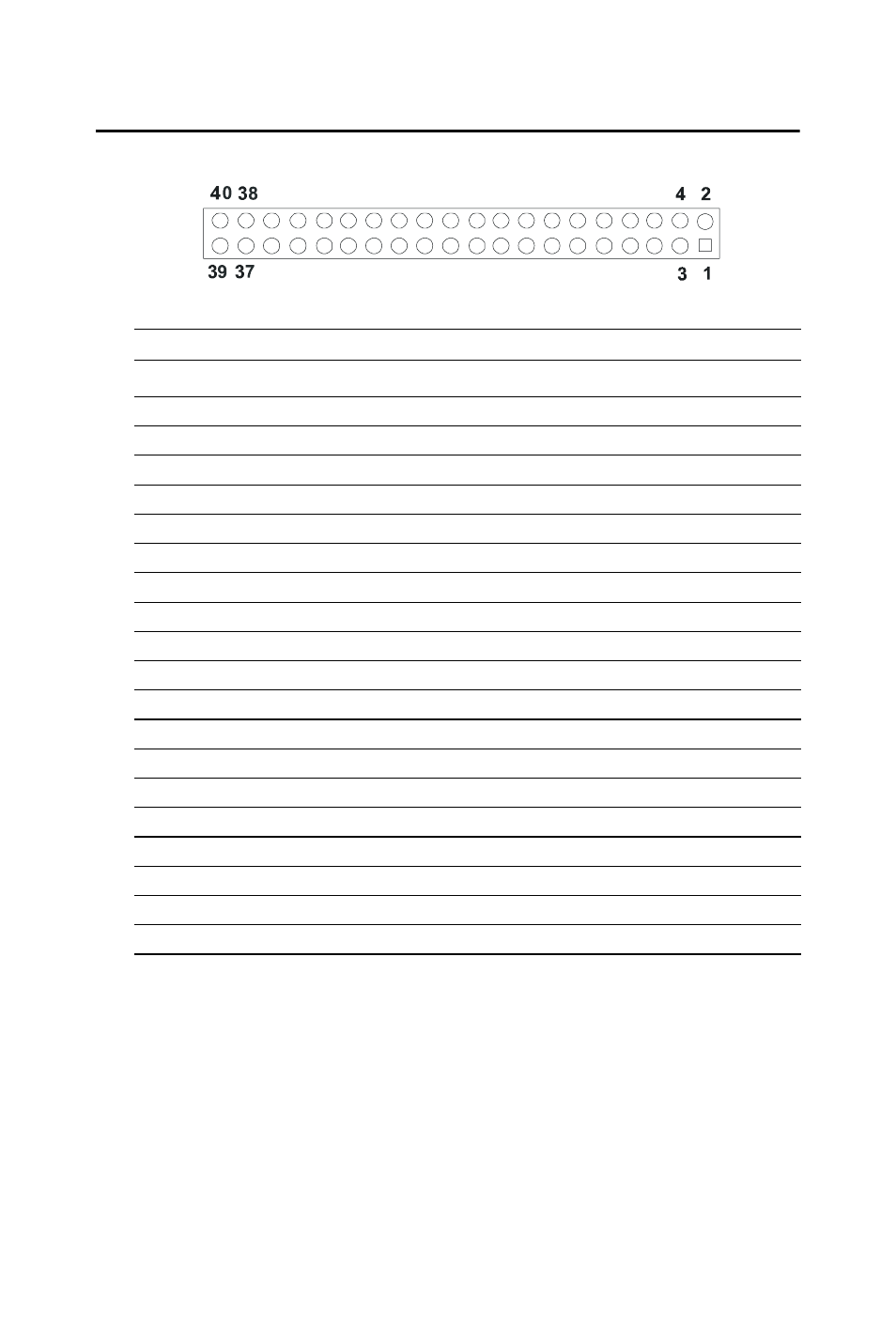

B.19 COM Port Connector (CN11)

Table B.19: COM Port Connector (CN11)

Pin

Signal

Pin

Signal

1

COM1 DCD

2

COM1 DSR

3

COM1 RX

4

COM1 RTS

5

COM1 TX

6

COM1 CTS

7

COM1 DTR

8

COM1 RI

9

GND

10

GND

11

COM2 DCD/485TX-

12

COM2 DSR

13

COM2 RX /485TX+

14

COM2 RTS

15

COM2 TX /485RX+

16

COM2 CTS

17

COM2 DTR/485RX-

18

COM2 RI

19

GND

20

GND

21

COM3 DCD

22

COM3 DSR

23

COM3 RX

24

COM3 RTS

25

COM3 TX

26

COM3 CTS

27

COM3 DTR

28

COM3 RI

29

GND

30

GND

31

COM4 DCD

32

COM4 DSR

33

COM4 RX

34

COM4 RTS

35

COM4 TX

36

COM4 CTS

37

COM4 DTR

38

COM4 RI

39

GND

40

GND
