PCM-9586 User’s Manual 10
2.2 Connectors
On-board connectors link the PCM-9586 to external devices such as hard
disk drives, a keyboard, or floppy drives. The table below lists the func-
tion of each of the board’s connectors.

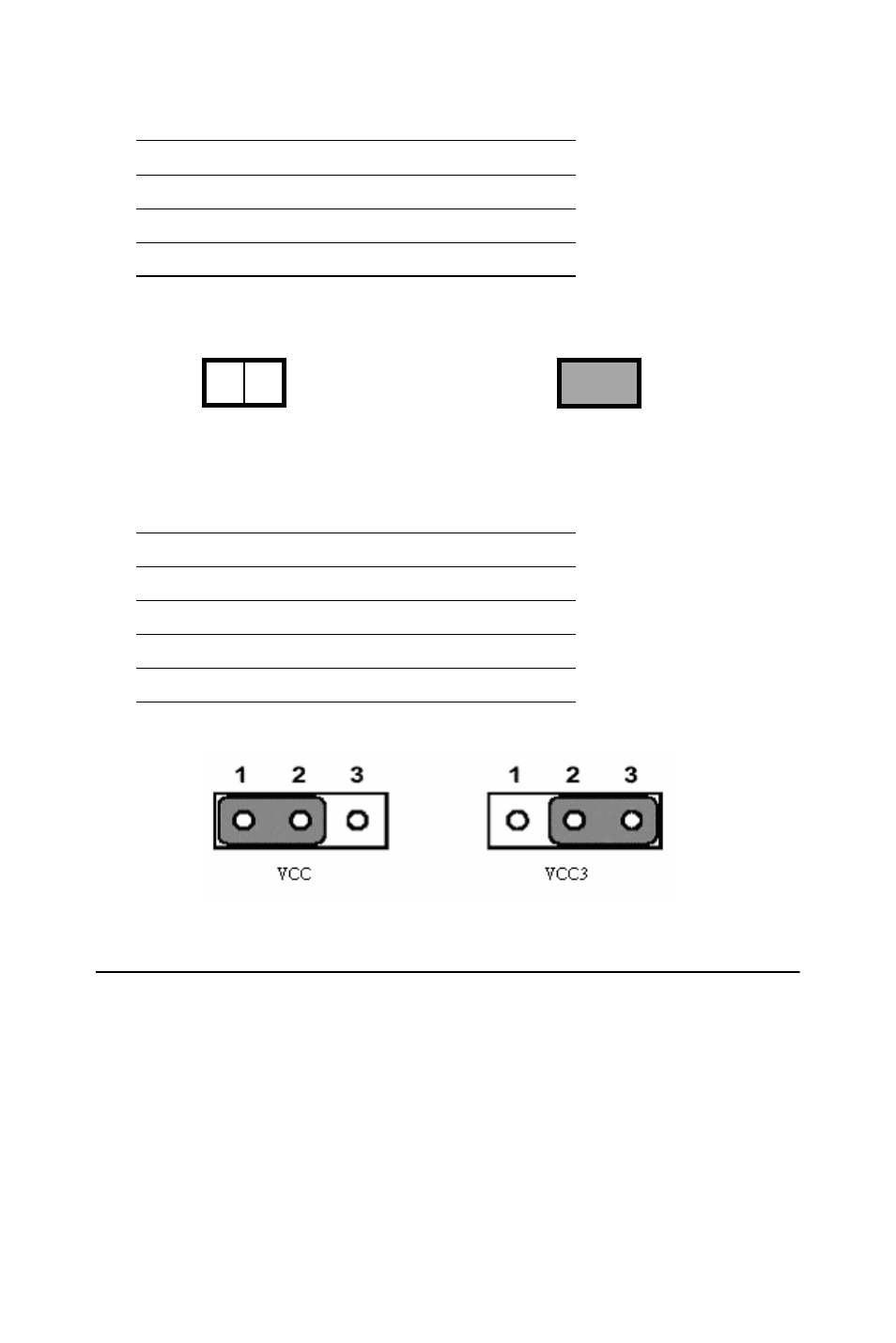

JP3: COMS Charge & Discharge
PIN
FUNCTION
1-2 OFF: Charge*
1-2 ON: Discharge
JP4: LVDS Voltage Select
PIN
FUNCTION
1-2 VCC
2-3 VCC3
Default VCC3
1 2
□ ○
OFF
1 2
■ ■
ON
