PCM-9586 User’s Manual 82

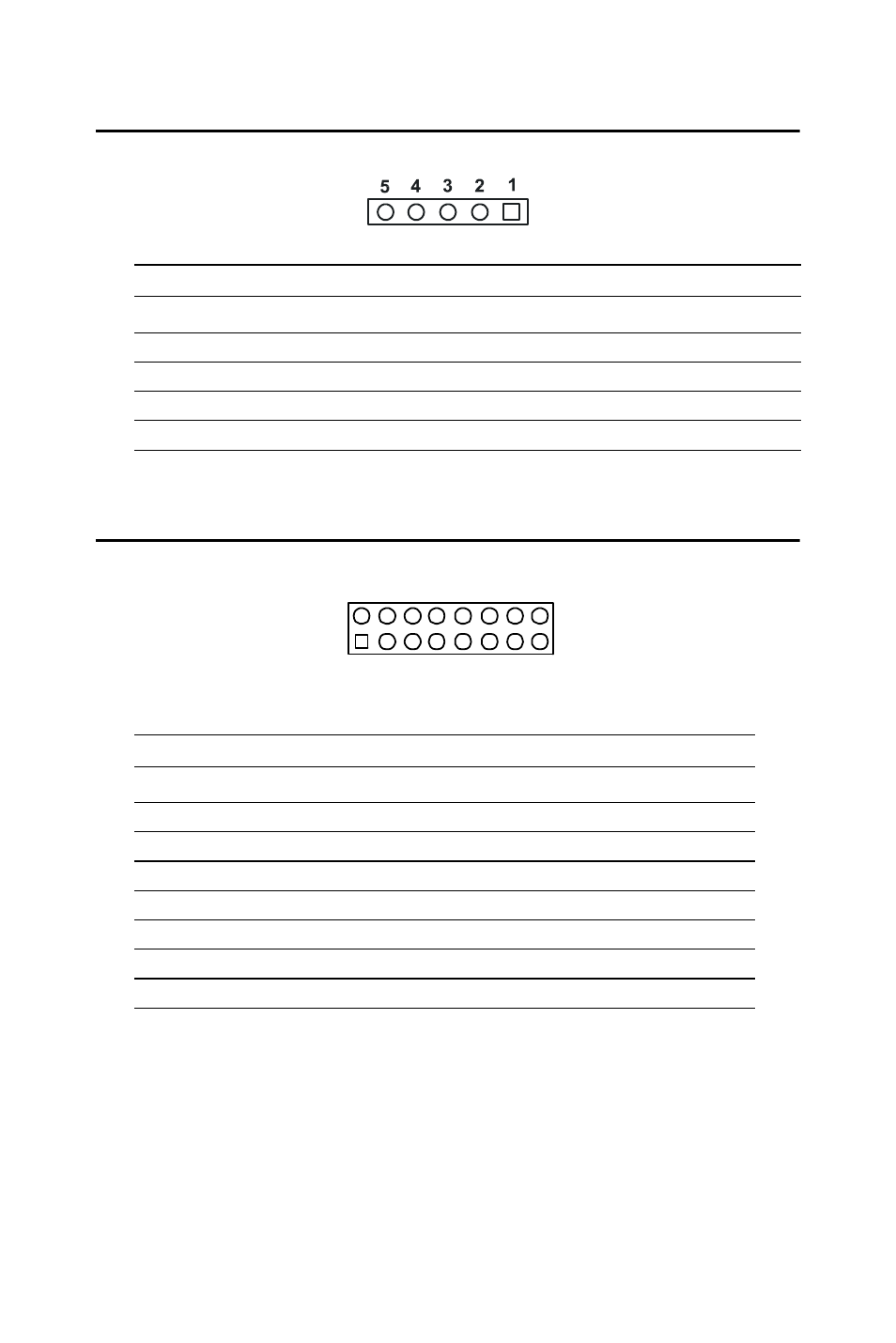

B.16 LCD Inverter Backlight Connector (CN17)
B.17 CRT Display Connector (CN13)
Table B.16: Inverter Backlight Connector (CN17)
Pin Signal
1 +12 V
2 GND
3 ENABKL
4 VBR
5 +5 V
Table B.17: CRT Display Connector (CN13)
Pin Signal Pin Signal
1 RED 3 DDC POWER(+5V)
2 GREEN 4 GND
5 BLUE 6 N/C
7 N/C 8 DDC DATA
9 GND 10 H-SYNC
11 GND 12 V-SYNC
13 GND 14 DDC CLOCK
15 GND 16 N/C
4 14
15 3
16
13 1
2
