PCM-9586 User’s Manual

34

4.2.4 Advanced Chipset Features setup

By choosing the Advanced Chipset Features option from the Initial Setup
Screen menu, the screen below is displayed. This sample screen contains
the manufacturer’s default values for the PCM-9586 Series.

4.2.5 Integrated Peripherals

Choosing the Integrated Peripherals option from the Initial Setup Screen
menu should produce the screen below. Here we see the manufacturer’s
default values for the PCM-9586 Series.

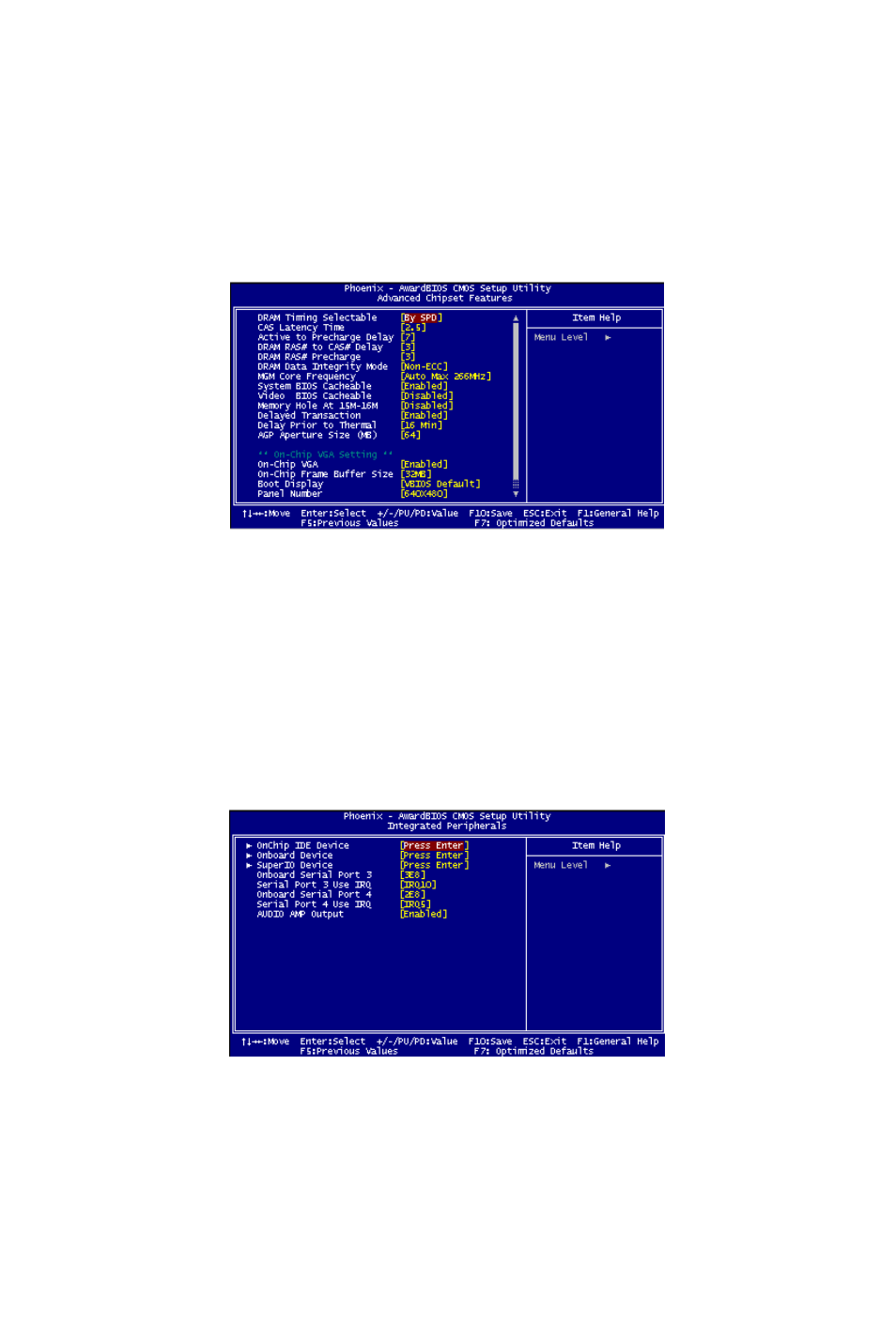

Figure 4.4: Advanced Chipset Features setup

Figure 4.5: Integrated Peripherals
