Page 5
2 - 1

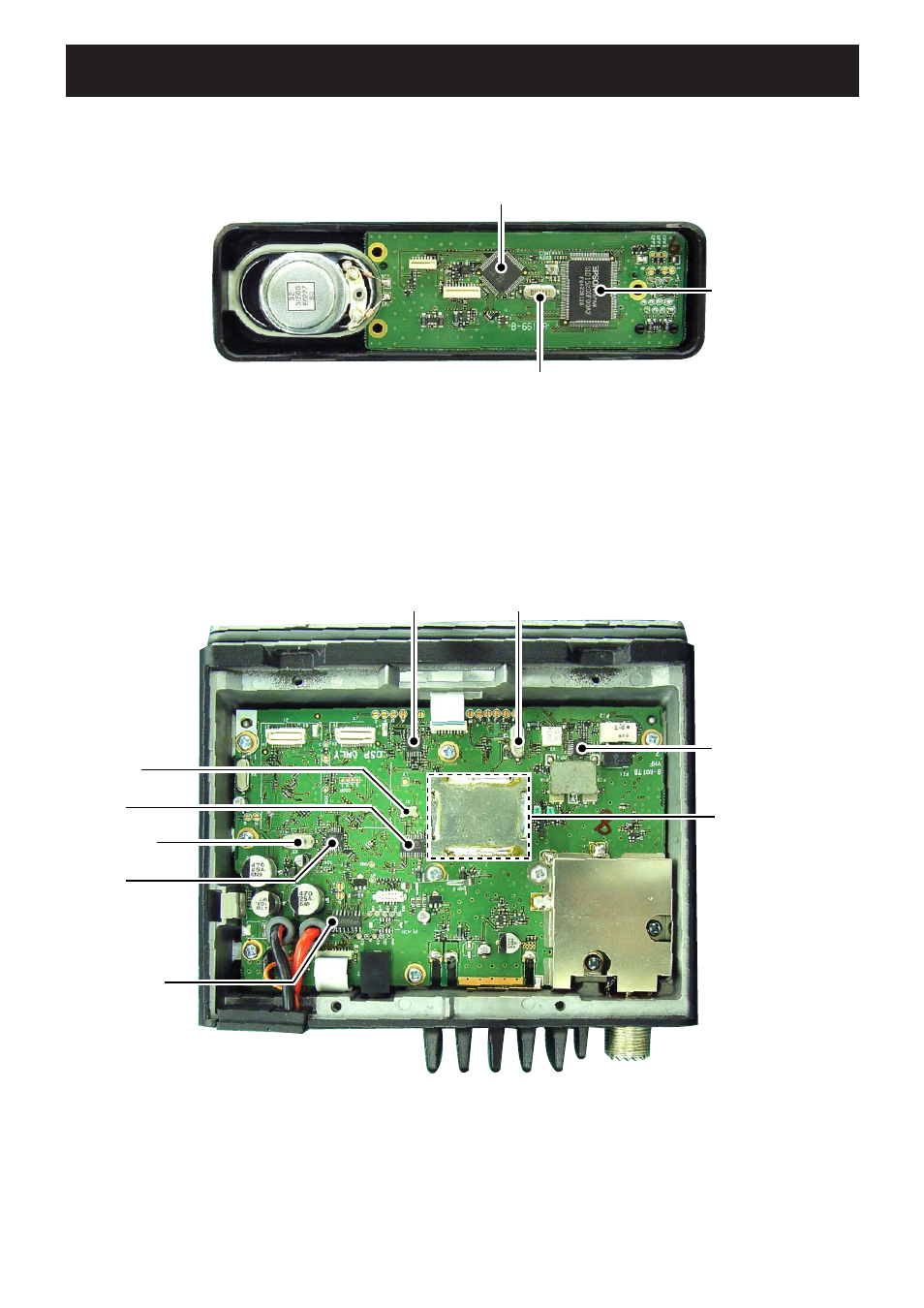

SECTION 2
INSIDE VIEWS
IF IC
(IC170: TA31136FNG)
LCD DRIVER
(IC501: S1D15206F)
FRONT CPU
(IC503: HD64F3687)
FRONT CPU CLOCK
(X501: CR-764)
AF SWITCH/AMP
(IC1: NJM12902V)
BBIC CLOCK
(X2: CR-765)
AF LPF
(IC7: NJM12902V)
CPU CLOCK
(X5: CR-764)
REF OSC
(X1: CR-826)
PLL IC
(IC4: LMX2352TM)
LEVEL CONV.
(IC19: DS14C232TM)
VCO
• FRONT UNIT
• MAIN UNIT
