Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
8 - 1
SECTION 8 MECHANICAL PARTS
[CHASSIS PARTS]

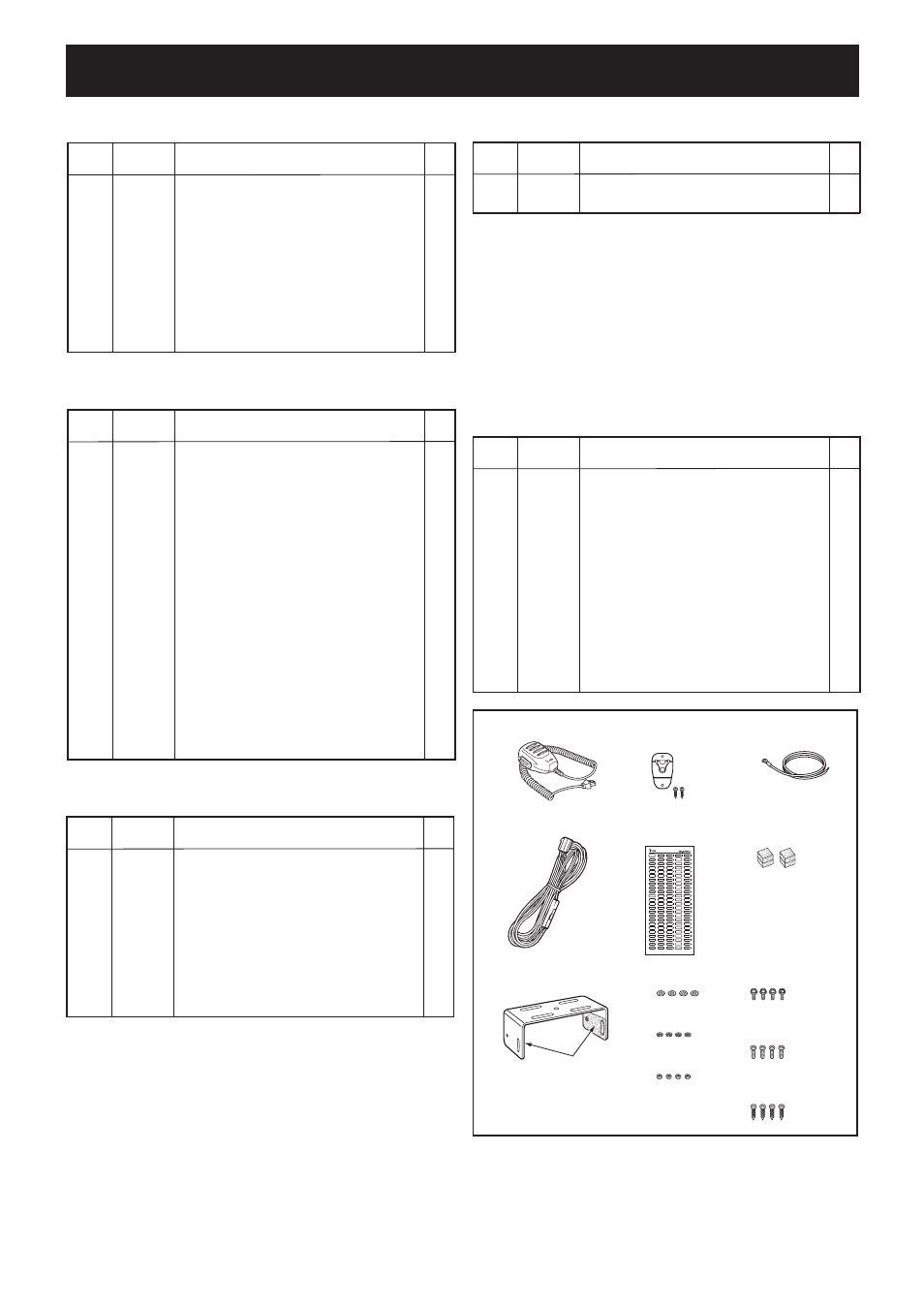

REF ORDER
DESCRIPTION QTY.
NO. NO.
J1 6510004880 MR-DSE-01 1
MP1 8010020540 2979 CHASSIS 1
MP2 8930070860 O-RING (BM) 1
MP3 8110008960 2979 COVER 1
MP4 8930070920 2979 D-SUB PLATE 1
MP5 8510018090 2979 FILTER CASE 1
MP8 8930048550 2177 CLIP 1
MP9 8810008661 Screw BT B0 3X8 NI-ZC3 (BT) 10
MP10 8810008661 Screw BT B0 3X8 NI-ZC3 (BT) 2
MP11 8810008661 Screw BT B0 3X8 NI-ZC3 (BT) 2
MP12 8810009991 Screw BT B0 3X8 NI-ZK3 (BT) 4
MP13 8810009991 Screw BT B0 3X8 NI-ZK3 (BT) 2
MP14 8930071670 2979 M-PLATE 1
MP16 8930068420 SPONGE (IS) 4
[FRONT UNIT]
[ACCESSORIES]
[MAIN UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J503 6450002210 3017-8821 1
DS501 5030003020 L6-0226TVM-3 1
SP501 2510001400 3050S-E6227 1
W501 8900012711 OPC-1297A 1
W502 7120000470 ERDS2T0 1
W503 7120000470 ERDS2T0 1
EP502 8930072220 SRCN-2979-SP-N-W 2
MP501 8210023480 2979 FRONT PANEL (Incl. MP502) 1
MP502 8310068050 2979 WINDOW PLATE 1
MP503 8210023270 2979 REFLECTOR 1
MP504 8930070840 2979 LENS 1
MP505 8610013020 KNOB N-352 1
MP506 8930070830 2979 KEYBOARD 1
MP507 8930070850 2979 VOL RUBBER 1
MP508 8010020760 2979 SUB CHASSIS (Incl. MP509, MP515) 1
MP509 8930071350 2979 SPRING 1
MP510 8510018080 2979 LCD PLATE 1
MP511 8930071600 INSULATION SHEET (LR) 2
MP513 8930071610 2979 LCD FILTER 1
MP514 8930059000 2601 SP NET 1
MP515 8610007420 knob spring NO.6601 1
MP516 8810010501 Screw BT B0 3X10NI-ZC3 (BT) 3
REF ORDER
DESCRIPTION QTY.
NO. NO.
J7 6450000140 HSJ0807-01-010 1
W1 7120000470 ERDS2T0 1
W2 8900016250 OPC-1701 1
EP4 6910010280 HF70BB9.5X10.4X4.9 1
EP5 6910010280 HF70BB9.5X10.4X4.9 1
EP6 6910011560 HF70BB4.5X5X1.6 2
MP1* 8510018070 2979 VCO CASE 1
MP2 8510018060 2979 VCO COVER 1
MP3 8930056510 2055 SHIELD PLATE 1
MP4 8510002280 VCO Sheild plate (A) 1
MP6 8930072270 Shield sponge (BV) 1
[CONNECT UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J602 6510023210 CD6125SA1J0 1
W601 8900012711 OPC-1297A 1
REF ORDER
DESCRIPTION QTY.
NO. NO.
MC1 Optional product HM-148 [USA-01] 1
Optional product HM-152 [EXP-01], [EUR-01] 1
W1 Optional product OPC-1132 [USA-01] 1
Optional product OPC-1194A [EXP-01], [EUR-01] 1
W2 8900000730 OPC-049 * 1
MP1 8010020610 2979 MOBILE BRACKET 1
MP2 8820000530 Flange bolt M4X8 NI 4
MP3 8810000471 Screw PH (+-) M5X12 ZC3 4
MP4 8810000951 Screw BT A0 5X16 ZC3 4
MP5 8850000180 Flat washer M5 SUS 4
MP6 8850000391 SPRING WASHER M5 ZC3 4
MP7 8830000121 Nut M5 ZC3 4
MP8 8950005110 2289 MIC HANGER 1
MP10 8310068720 2979 LCD SEAL 1
MP11 8930059160 2601 FELT 2
MP12 8810004700 Screw BT A0 3X16 SUS 2
MP13 8930072530 SPONGE (JN) 2
MC1
MP8
MP12
W2
W1
MP13
MP1
MP5
MP6
MP2
MP3
(M5
×12)
MP4
(M5
×16)
MP7
MP10
MP11
(already attached)
*: Refer to SECTION 10 BOARD LAYOUTS.
