Maintenance Section 4
4-2 Part Number 000000966
B. Remove the ice thickness probe
• Compress the hinge pin on the top of the ice
thickness probe.

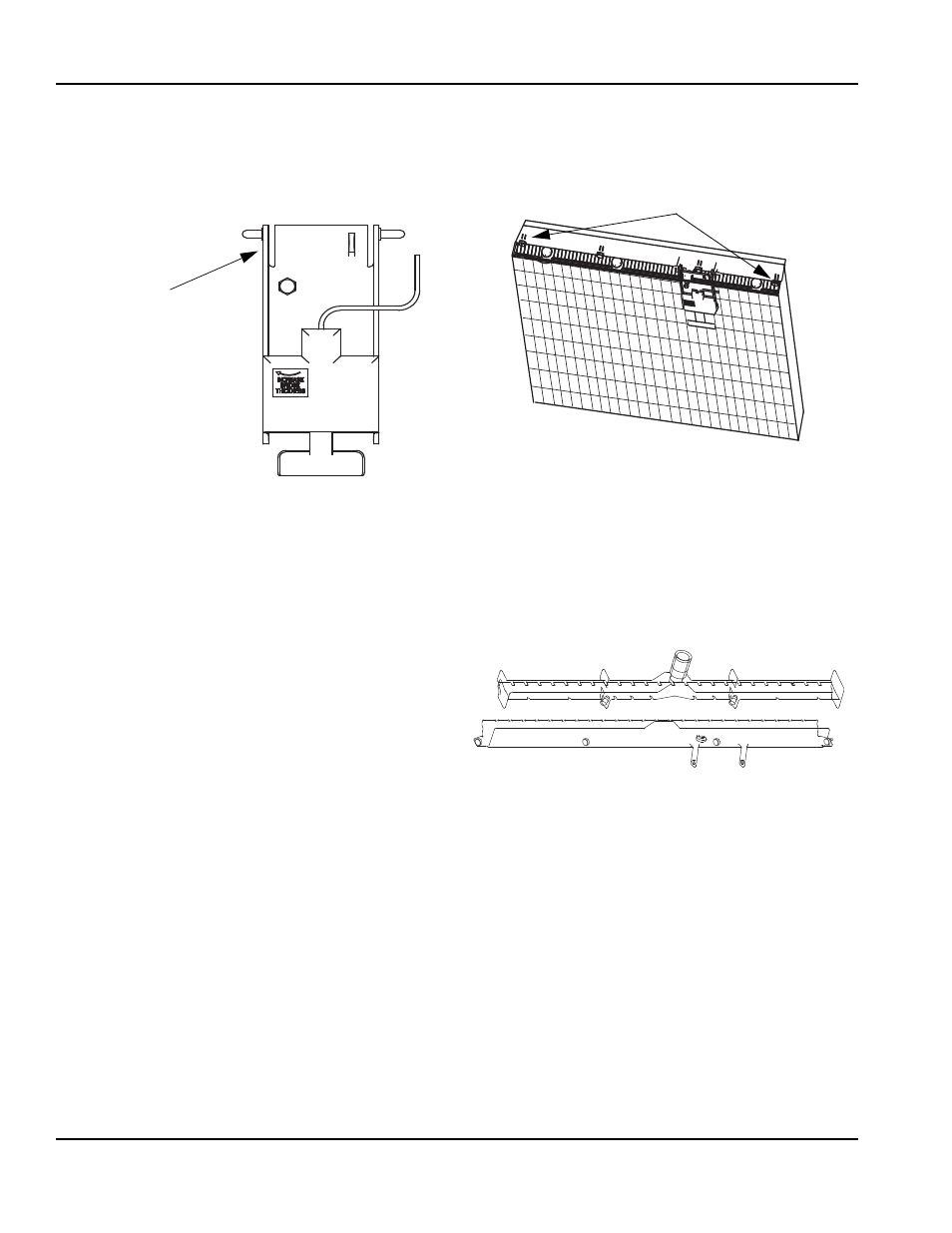

Ice Thickness Probe Removal
• Pivot the ice thickness probe to disengage one pin
then the other. The ice thickness probe can be
cleaned at this point without complete removal. If
complete removal is desired, disconnect the ice
thickness control wiring from the control board.
C. Remove the water distribution tube
NOTE: Distribution tube thumbscrews are retained to
prevent loss. Loosen thumbscrews but do not pull
thumbscrews out of distribution tube.
Water Distribution Tube Removal
• Loosen the two outer screws (do not remove screws
completely they are retained to prevent loss) and pull
forward on the distribution tube to release from slip
joint.
• Disassemble distribution tube by loosening the two
(2) middle thumbscrews and dividing the distribution
tube into two pieces.
SV3135
COMPRESS
HINGE PIN TO
REMOVE
LOOSEN SCREWS
