Installation Instructions Section 2
2-4 Part Number 000000966

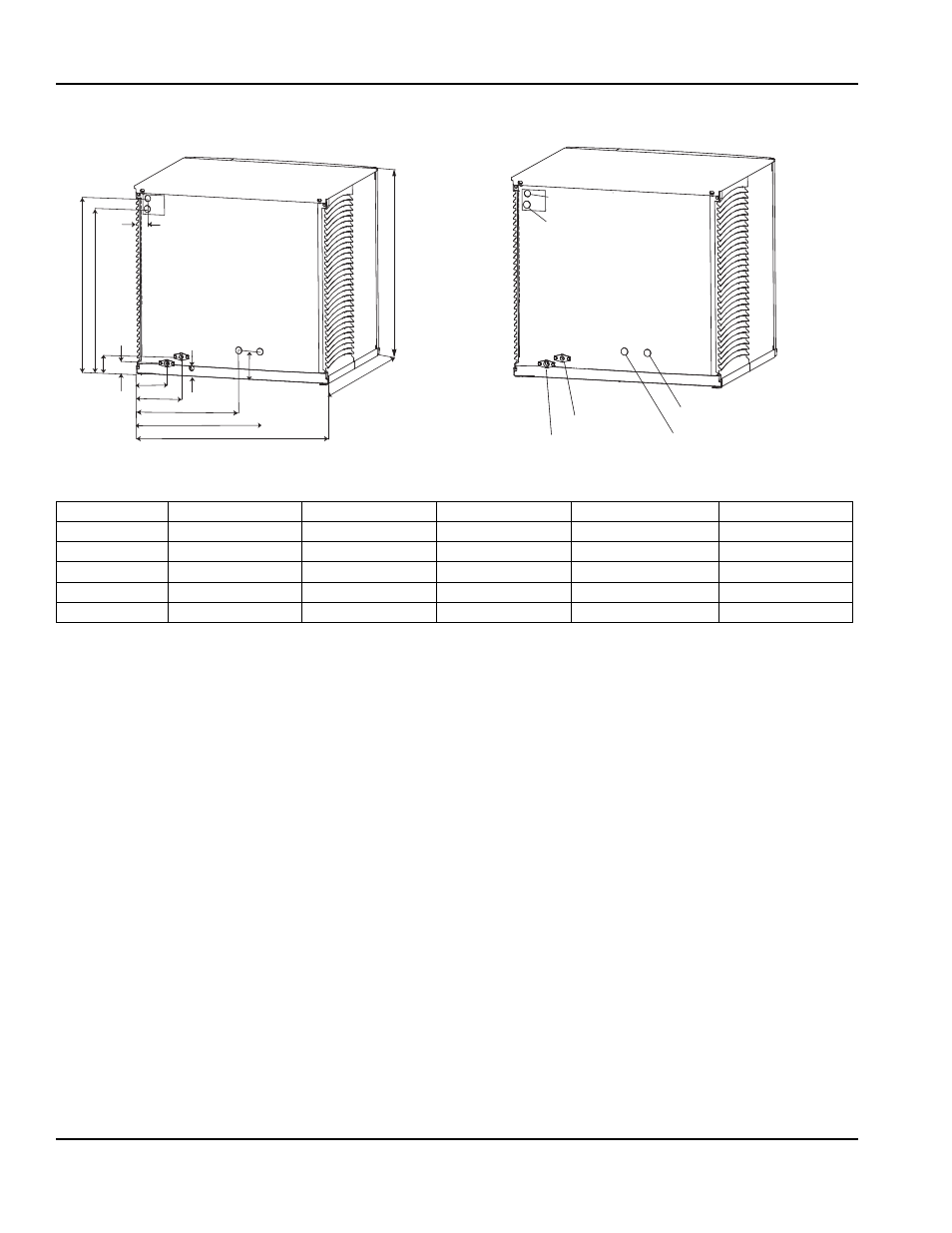

S500/S850/S1000 REMOTE ICE MACHINES
2.20" (5.58cm)
H
D
W
16.64" (64.82cm)
12.26" (42.27cm)
6.68" (16.96cm)
5.06" (12.85cm)
1.06 (2.69cm)
6.12" (15.54cm)
1.81"
(4.59cm)
2.61"
(6.62cm)
A
B
SV3146
SV3146B
DRAIN 1/2"NPTF
WATER INLET
3/8"FPT
REFRIGERANT
LIQUID LINE
REFRIGERANT
DISCHARGE LINE
ELECTRICAL
REMOTE CONDENSER
ELECTRICAL
Ice Machine Dimension A Dimension B Dimension W Dimension D Dimension H
S300 14.00 in (35.6 cm) NA 30 in. (76.2 cm) 24.50 in. (62.2 cm) 16.5 in (41.9 cm)
S450 19.25 in (48.9 cm) 17.5 in (44.45 cm) 30 in. (76.2 cm) 24.50 in. (62.2 cm) 21.5 in (54.6 cm)
S500 19.25 in (48.9 cm) 17.5 in (44.45 cm) 30 in. (76.2 cm) 24.50 in. (62.2 cm) 21.5 in (54.6 cm)
S850 23.82 in (60.5 cm) 22.32 in (56.69 cm) 30 in. (76.2 cm) 24.50 in. (62.2 cm) 26.5 in (67.3 cm)
S1000 23.82 in (60.5 cm) 22.32 in (56.69 cm) 30 in. (76.2 cm) 24.50 in. (62.2 cm) 26.5 in (67.3 cm)
