Section 2 Installation Instructions
Part Number 000000966 2-3
S300/S450/S500/S850/S1000/S1200 AIR AND WATER-COOLED ICE MACHINES

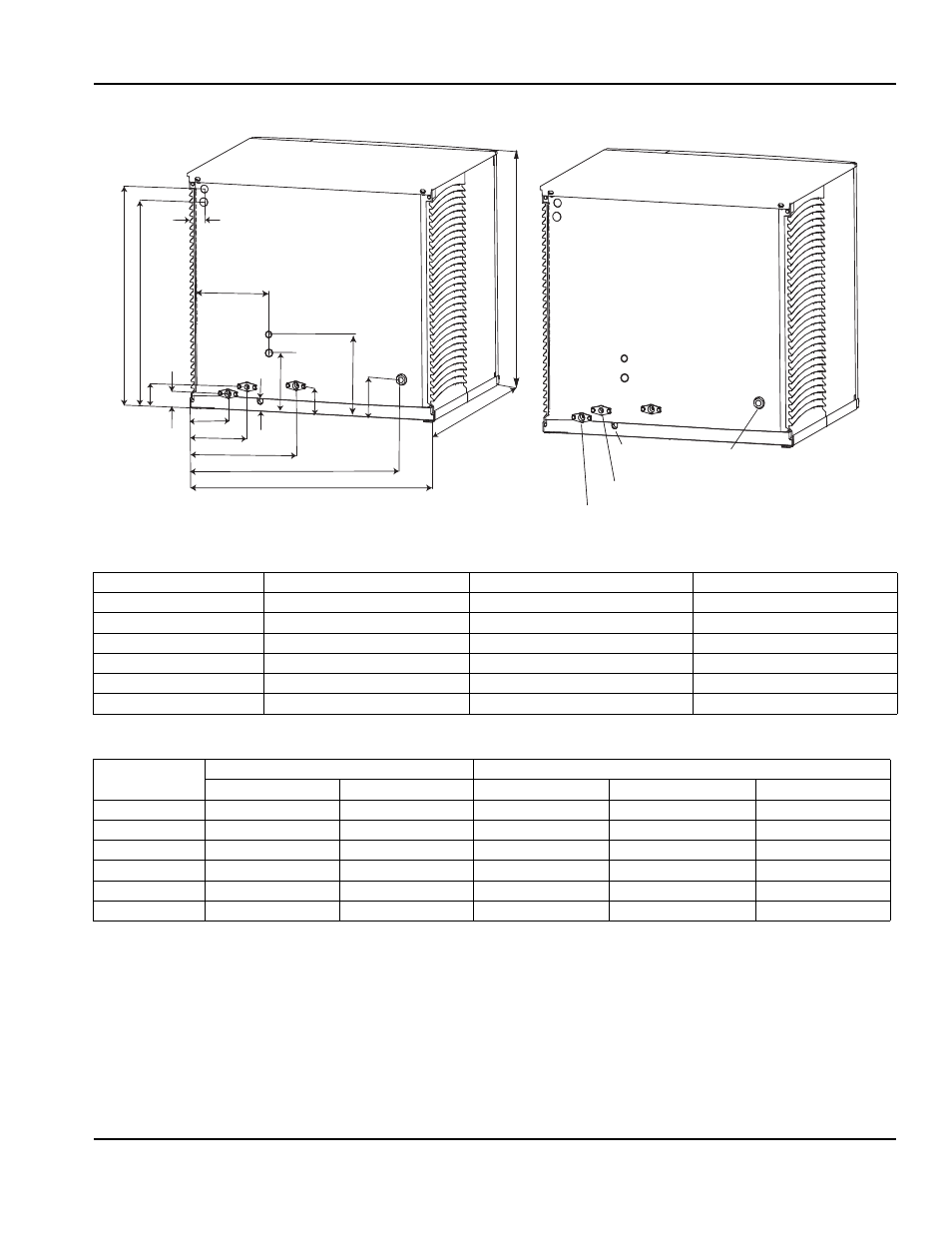

Width, Depth, and Height Dimensions
Electrical and AuCS Dimensions
ELECTRICAL
DRAIN 1/2"NPTF
WATER INLET
3/8"FPT
CONDENSER WATER
OUTLET 1/2"FPT
(Water-Cooled Only)
CONDENSER WATER
INLET 3/8"FPT
(Water-Cooled Only)
AUXILLARY BASE
DRAIN 1/2"CPVC
SOCKET
AUCS
CONNECTIONS
2.20" (5.58cm)
H
D
W
25.52" (64.82cm)
8.49" (21.56cm)
6.68" (16.96cm)
5.06" (12.85cm)
1.06 (2.7cm)
2.85" (7.30cm)
4.21" (10.69cm)
1.81"
(4.59cm)
2.61"
(6.62cm)
A
B
C
E
F
SV3143
SV3143B
Ice Machine Dimension W Dimension D Dimension H
S300 30 in. (76.2 cm) 24.50 in. (62.2 cm) 16.5 in (41.9 cm)
S450 30 in. (76.2 cm) 24.50 in. (62.2 cm) 21.5 in (54.6 cm)
S500 30 in. (76.2 cm) 24.50 in. (62.2 cm) 21.5 in (54.6 cm)
S850 30 in. (76.2 cm) 24.50 in. (62.2 cm) 26.5 in (67.3 cm)
S1000 30 in. (76.2 cm) 24.50 in. (62.2 cm) 26.5 in (67.3 cm)
S1200 30 in. (76.2 cm) 24.50 in. (62.2 cm) 29.5 in (74.9cm)
Ice Machine
Electrical AuCS
Dimension A Dimension B Dimension C Dimension E Dimension F
S300 14.00 in (35.6 cm) NA 10.0 in (25.4 cm) 6.0 in (15.24 cm) 4.0 in (10.16 cm)
S450 19.25 in (48.9 cm) 17.5 in (44.45 cm) 8.5 in (21.6 cm) 8.5 in (21.6 cm) 6.5 in (16.5 cm)
S500 19.25 in (48.9 cm) 17.5 in (44.45 cm) 8.5 in (21.6 cm) 8.5 in (21.6 cm) 6.5 in (16.5 cm)
S850 23.82 in (60.5 cm) 22.32 in (56.69 cm) 8.5 in (21.6 cm) 8.5 in (21.6 cm) 6.5 in (16.5 cm)
S1000 23.82 in (60.5 cm) 22.32 in (56.69 cm) 8.5 in (21.6 cm) 8.5 in (21.6 cm) 6.5 in (16.5 cm)
S1200 27.0 in (68.6 cm) 25.25 in (54.1 cm) 8.5 in (21.6 cm) 8.5 in (21.6 cm) 6.5 in (16.5 cm)
